Case 570NXT - Grille Screen and Radiator Area

7-MAINTENANCE
Grillescreenandradiatorarea
Checktheradiator,coolers,andenginecompartmentforbuildupofdebris,dirt,andothermaterialthatmightimpede
coolingcomponents.
1.Parkonlevelground,raisetheloaderarm,anden-
gagethesafetysupportstrut.
2.Shutdowntheengineandplacea'DoNotOperate'
tagonthekeyswitch.
3.Allowtimefortheenginetocool.

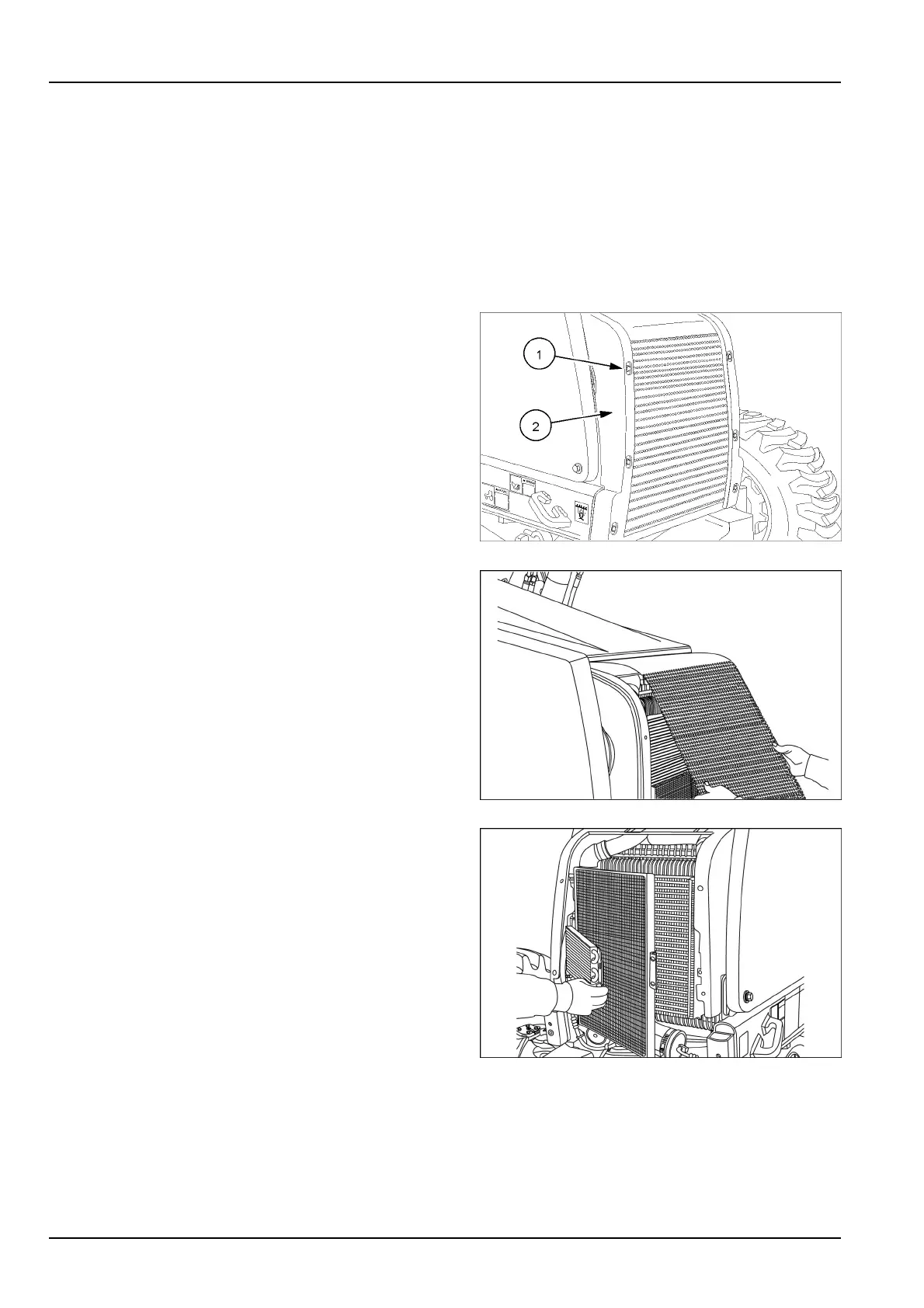

4.Usea16mmtooltoremovethesixbolts(1)that
securetheradiatorbumpers(2).
5.Removetheradiatorbumpers.
RCPH10TLB193AAF1
6.Tipthegrilleupfromthebottomandliftawayfrom
themachine.
RCPH10TLB150AAF2
7.Usea13mmtooltoremovethetwoboltsthatsecure
thecoolers.
8.Swingthecoolersouttoclean.
RCPH10TLB041AAF3
7-98
