Case 570NXT - Wheel Nut and Bolt Torque

7-MAINTENANCE
Wheelnutandbolttorque
Checkthetorqueofthewheelnutsandboltsattherst10hoursofoperationwheneverawheelisremovedorfor
anewmachine.Ifthenutsandboltsareloose,tightenandcheckafteranadditional10hoursofoperation.Repeat
untilthenutsandboltsremaintight.
Rearwheels
Specication:305N·m(225lbft)

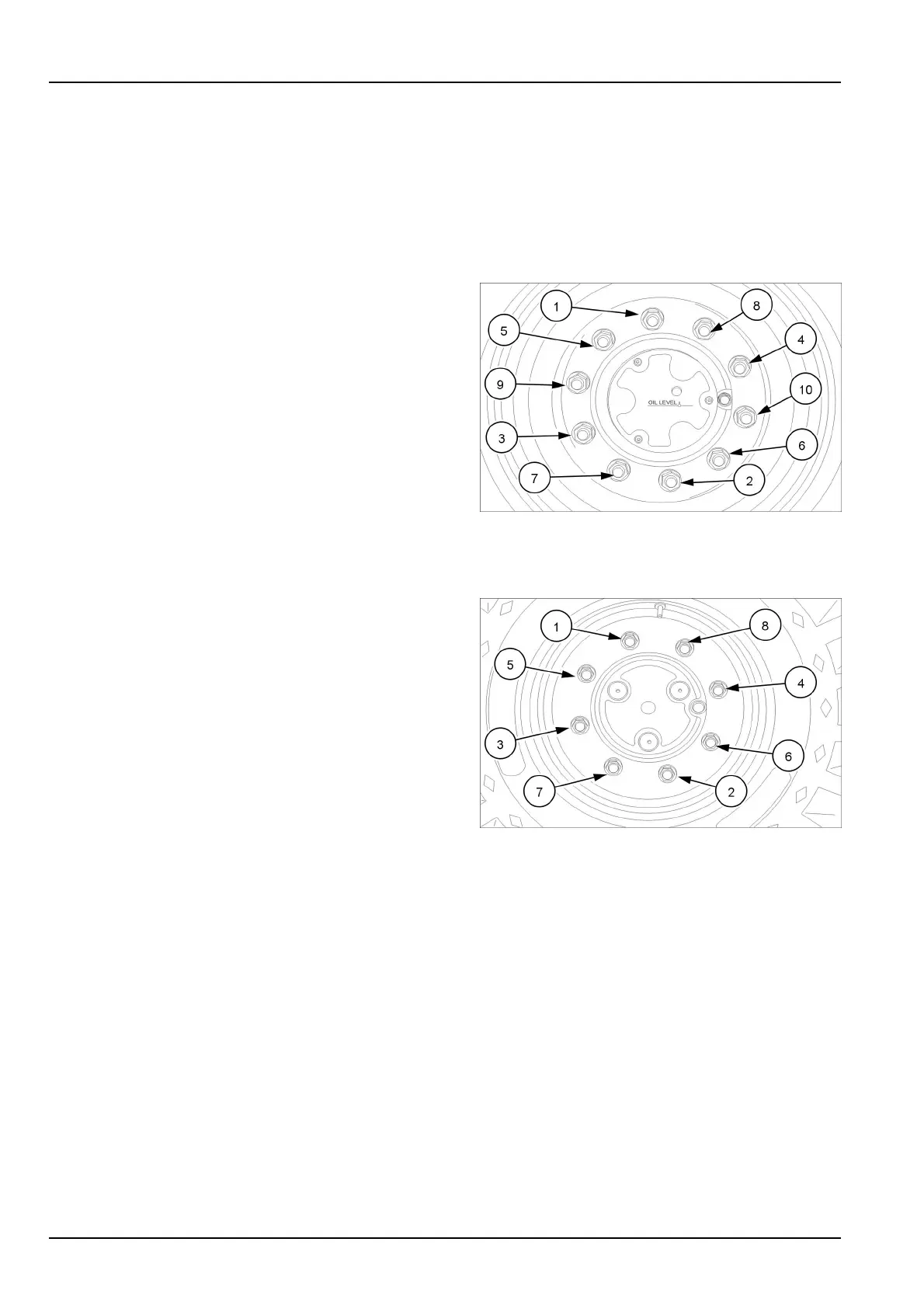

NOTICE:Tightennutsinacrossingpattern(sequence),as
shown.
Rearwheel:
1.Tightenthetenmountingnutsinsequenceuntil
thewheelissnugagaintheaxlehub.
2.Tightenthenutsinsequencetoatorqueof136
N·m(100lbft).
3.Tightenthenutsasecondtime,insequence,
toatorqueof271N·m(200lbft).
4.Turnthenutsinsequenceanadditional30°to
setthepreload.
RCPH10TLB075AAF1
Frontwheels
Specication:
•
TwoWheelDrive(2WD)—156-203N·m(115
-150lbft)
•
FourWheelDrive(4WD)—251N·m(185lb
ft)
NOTICE:Tightennutsinacrossingpattern(sequence),as
shown.
Frontwheel(2WD):
1.Tightentheeightmountingnutsinsequence
untilthewheelissnugagaintheaxlehub.
2.Tightenthenutsinsequencetoatorquerange
of156-203N·m(115-150lbft).
Frontwheel(4WD):
1.Tightentheeightmountingnutsinsequence
untilthewheelissnugagaintheaxlehub.
2.Tightenthenutsinsequencetoatorqueof122
N·m(90lbft).
3.Turnthenutsinsequenceanadditional43°to
setthepreload.
RCPH10TLB074AAF2
7-36
