Case 570NXT - Three Point Linkage General Specifications

8-SPECIFICATIONS
Threepointlinkagegeneralspecications

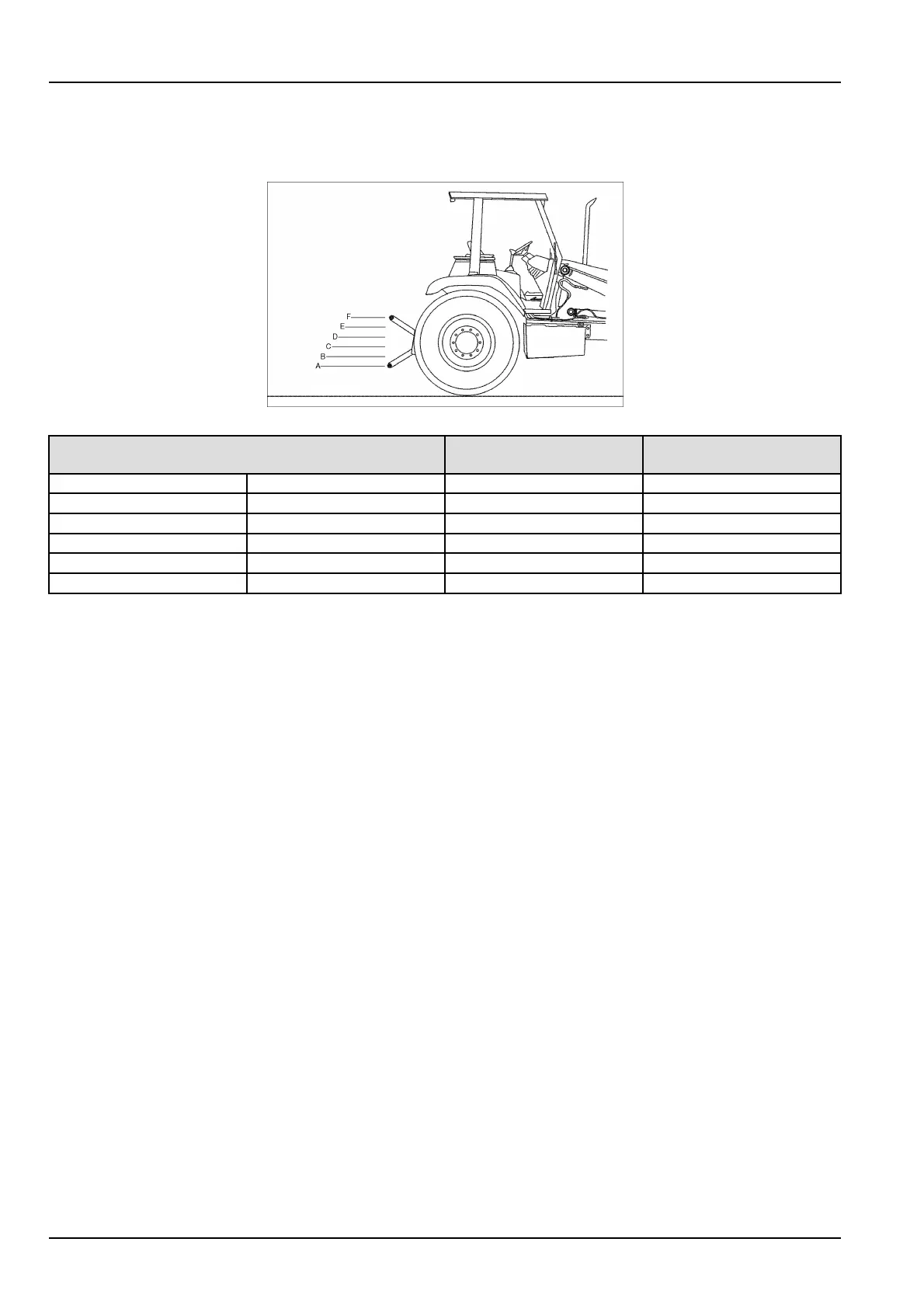

Staticliftforce
RAIL12UTL0183FA1
PositionofhitchVerticalliftforceDistanceoflowerhitch
pointabovegroundline
ALowestpoint
13225N(2973lb)145mm(5.71in)
B
1/5point13225N(2973lb)284mm(11.18in)
C2/5point15511N(3487lb)423mm(16.65in)
D
3/5point14915N(3353lb)562mm(22.13in)
E
4/5point13251N(2979lb)701mm(27.60in)
FHighestpoint
11619N(2612lb)840mm(33.07in)
