Case 570NXT - Front Axle Fluid

7-MAINTENANCE
Frontaxleuid
NOTE:Fourwheeldrive(4WD)axlesonly.
Changethefrontaxleuidevery1000hoursofoperation.
1.Startuptheengineandrununtilthefrontaxleuid
isatoperatingtemperature.
2.Usetheloaderandraisethefrontwheelsabout25
mm(1in)abovethesurface.

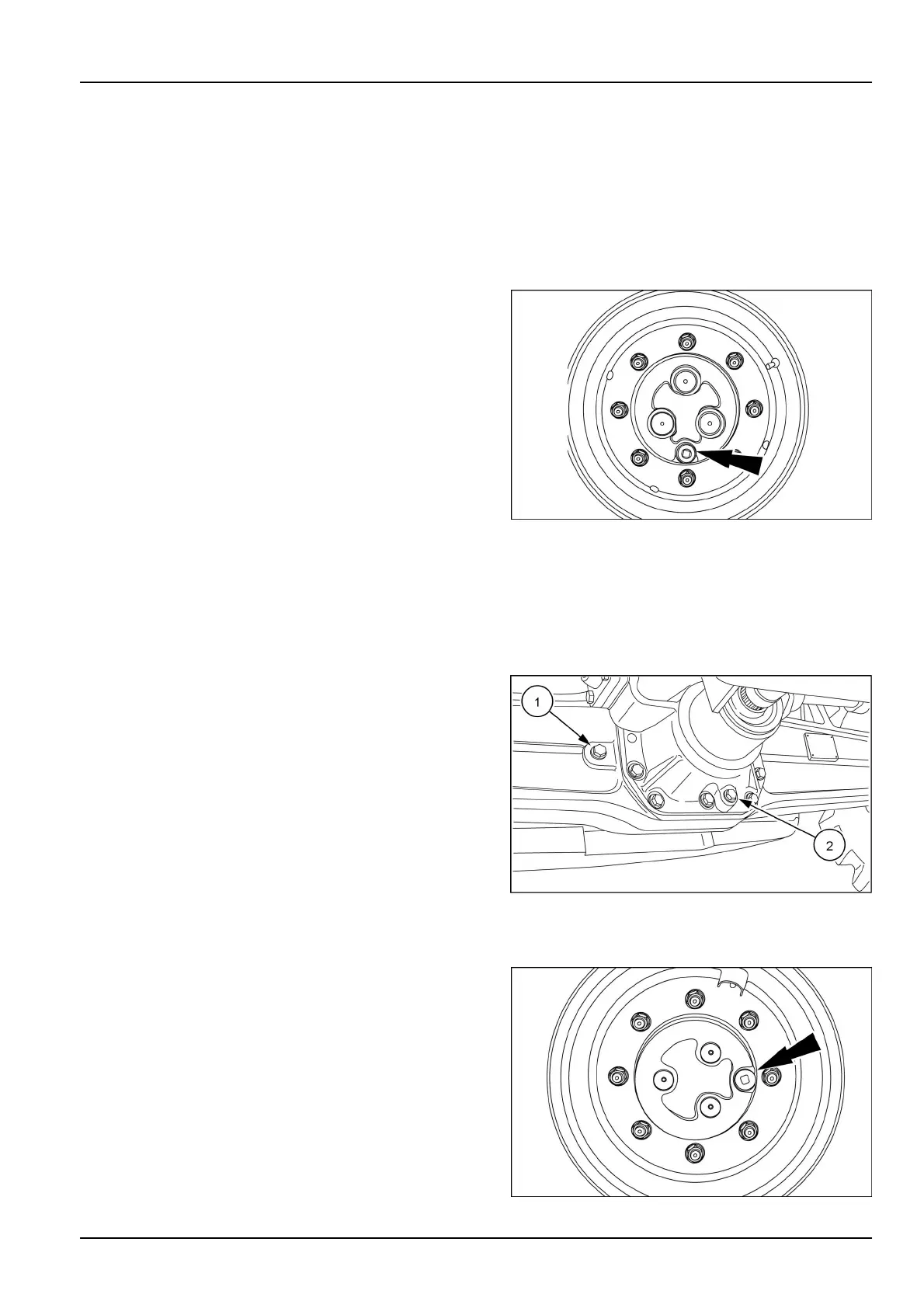

3.Rotatebothfrontwheelssothattheoillevelplugis
inthedrainposition,asshown.
RCPH10TLB069AAF1
4.Lowertheloadertoplacethewheelsonthesurface.
5.Shutdowntheengine.
6.Cleantheareasaroundtheplanetaryplugs.
7.Placeasuitablecontainerundertheplanetarydrain
plugsandslowlyremovetheplugs.
8.Cleantheareasaroundthecheck/llplug(1)andthe
drainplug(2)forthecenterbowl.
9.Slowlyremovethecheck/llplug.
10.Placeasuitablecontainerunderthedrainplugand
slowlyremovetheplug.
11.Aftertheoilhasdrainedfromtheaxle,installthe
drainplug.
RAPH12FRK1116AA2
12.Usetheloaderandraisethefrontwheelsabout25
mm(1in)abovetheground.
13.Rotatebothfrontwheelstothecheck/llposition,as
shown.
RCPH10TLB067AAF3
7-79
