Case 570NXT - Fan Belt

7-MAINTENANCE
Fanbelt
Replacethefandrivebeltasneeded.

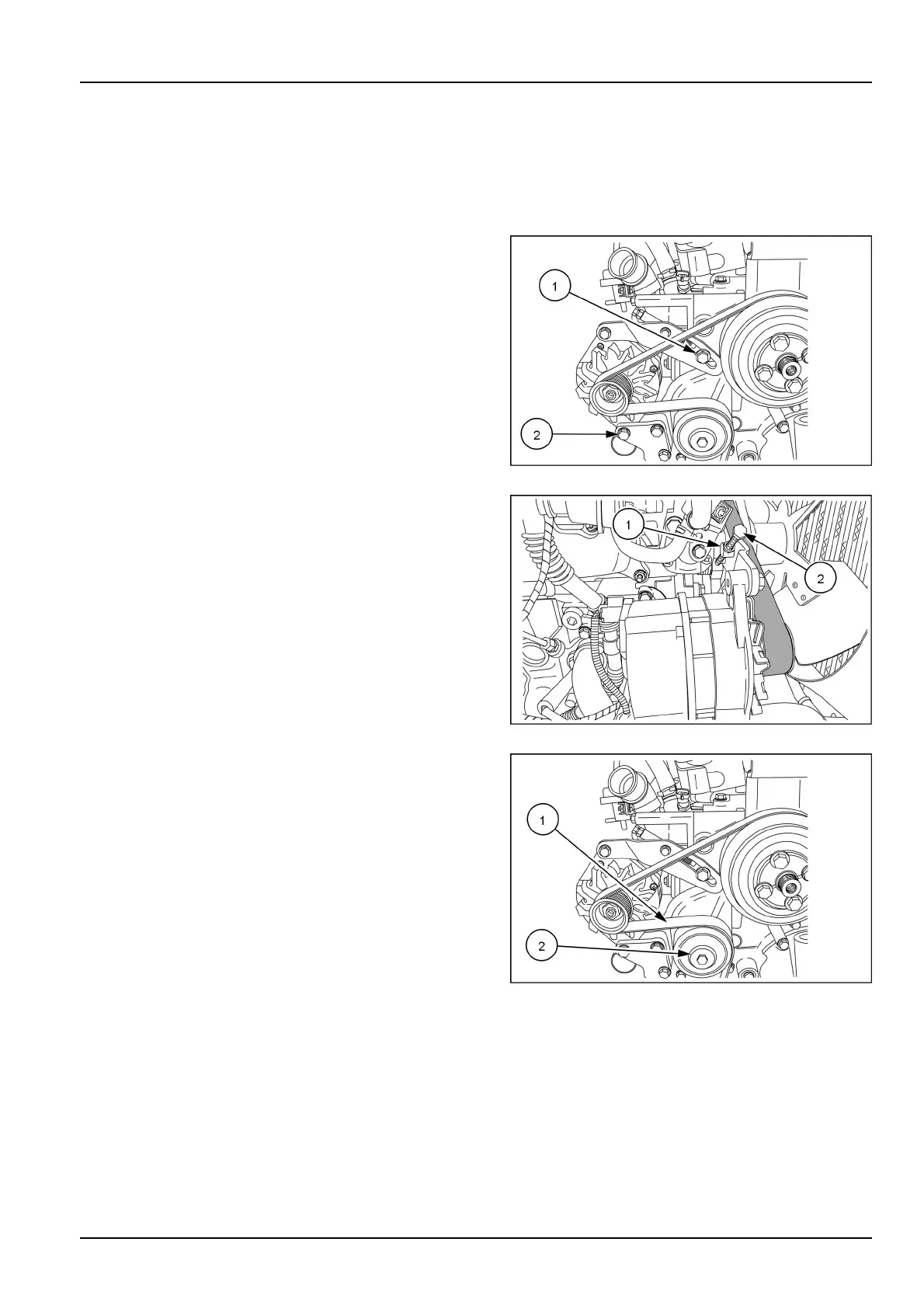

Removal
1.Removetheairconditioningbelt,ifequipped.
2.Loosentheloweralternatorbolt(2).
3.Loosenthepivotbolt(1).
831181211
4.Loosentheadjustmentboltlocknut(1).
5.Turntheadjustmentbolt(2)counter-clockwise,to
loosenthebelttension.
RAIL11TLB0004AA2
6.Slidethebelt(1)offofthewaterpumppulley(2)and
removethebelt.
831181213
