Case 570NXT - Page 152

7-MAINTENANCE

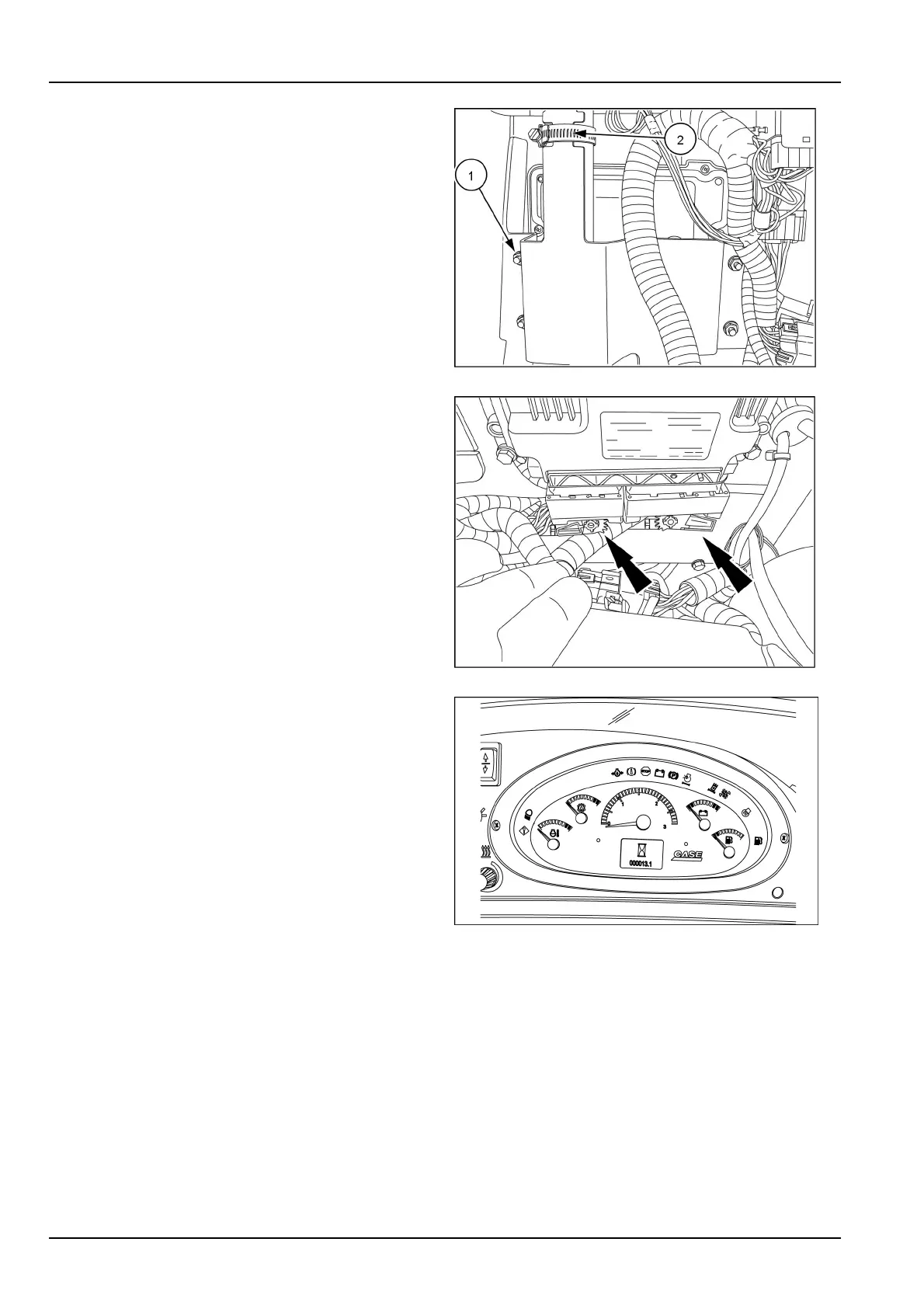

4.RemovetheECUguardplatebolts(1)andstrap(2).
RAPH12UTL0126BA4
5.Disconnectbothconnectors.
RCPH11TLB054BAD5
Disconnecttheinstrumentcluster.
1.Removetheinstrumentclusterpanel.
2.Disconnectallconnectorsfromthebackofthepanel.
RCPH10TLB339AAF6
Disconnectthecontrollerfortheloader4in1bucketor
auxiliaryhydraulics,ifequipped(oneconnector,located
undertheloadervalveattherear,leftundersideofthe
machine).
7-10
