Cellwatch Frontier System Installation & User Manual
Section I – Installation Guide-47
Sense leads are connected to the terminal clips to obtain accurate ohmic readings for each strap.
Terminal (Post) Clips

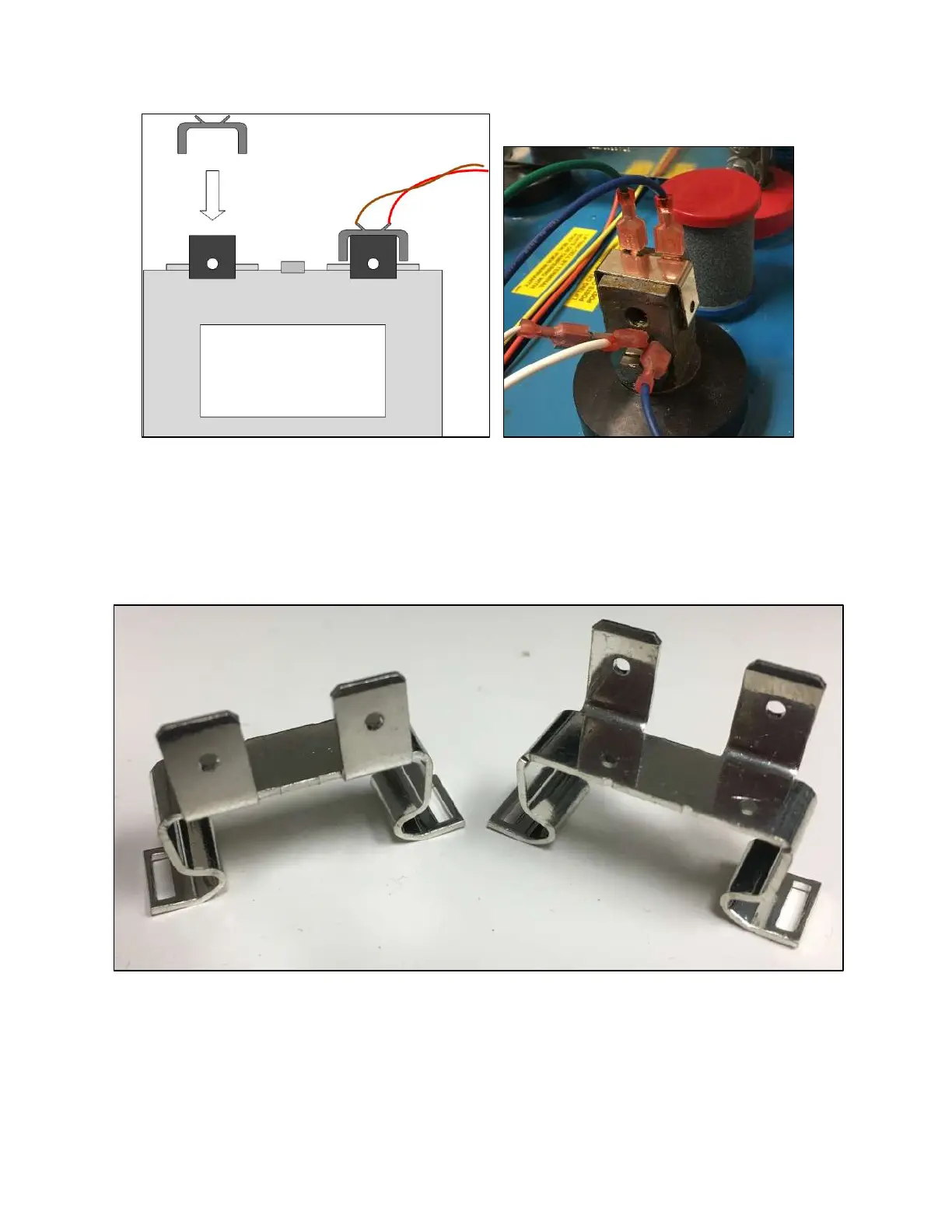

The post clip that ships with your Frontier system is shown in the photo below. These clips are available
in ¾ and 1-inch sizes. DCM sense leads will be connected to the post clips via the tabs on the top of the
clip. The clip features two tabs which allow multiple DCM leads to connect and measure the post.
Post Clip with Two Tabs for DCM Connections
The post clip is held on to the battery terminal by spring tension. This tension allows the clip to stay
attached to the terminal post under normal use. When fitting the clips to the post, landing DCM leads
to the tabs, or removing the clips, ensure that necessary safety precautions are taken. The use of safety
glasses is highly recommended when working with these clips.
