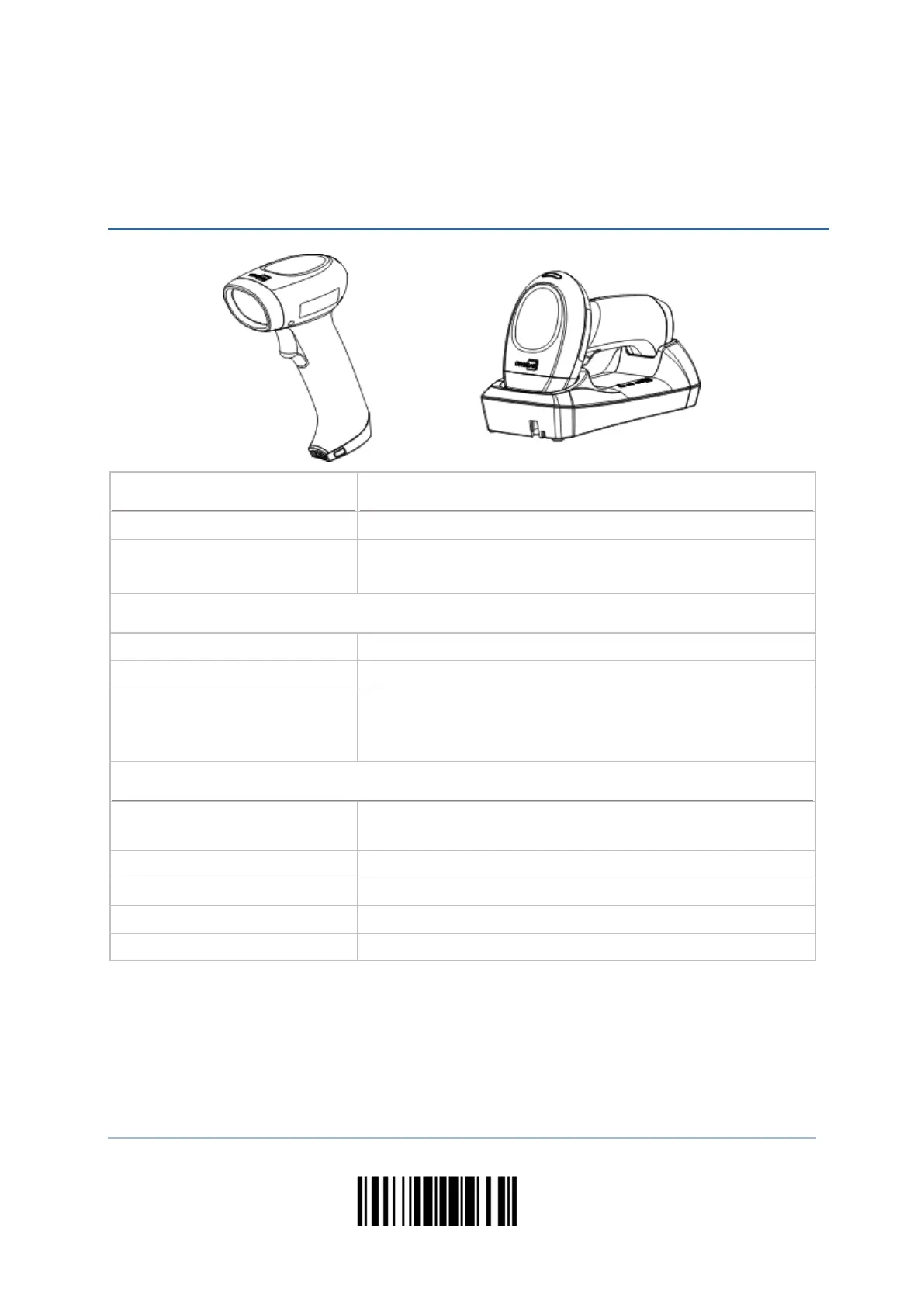

231
Update
Optical Cha
racteristic
s
2
564
Scan Engine
2D Imager
Light Source
Aiming pattern: 620~630nm LED
Illumination: Warm White LED
RF Cha
racteristic
s
WPAN Module
Wireless PAN BT Class 2 compliance
Coverage (line-
of
-sight)
10
0 meters with the cradle
Interface Supported
Serial Port Profile (BT
SPP)
Hu
man Interface Device Profile (
BT HID)
Cradle
Physical Cha
racteristic
s
Memory
10
KB for transmit buffer
4 MB
flash for memory mode
Switch
Tactile switch
Indication
Triple-color LED
(R
ed/Green/Blue) and beeper
Weight
Approx. 185 g
Dimensions
160.5 x 96.2 x 66 mm
SPECIFICATIONS
244
246
Table of Contents
Default Chapter
3
For Canada
3
Care & Maintenance
4
For Product with Laser
4
Release Notes
5
Table of Contents
7
Introduction
15
Getting Familiarized with the Scanner and the Cradle
16
Installing the Battery to the Scanner
16
Setting up the Cradle
17
Charging the Battery Via Cradle
18
Charging the Battery Via Charger
19
Inside the Package
20
Product Highlights
20
Symbologies Supported
21
Quick Start
23
Enter Configuration Mode
25
Exit Configuration Mode
25
Default Settings
26
Save User Settings as Defaults
26
Restore User Defaults
26
Restore System Defaults
26
Read a Setup Barcode
27
Configure Parameters
27
List the Current Settings
31
Create One-Scan Setup Barcodes
33
One-Scan Barcode
33
One-Scan Barcode
34
Chapter 1
35
Battery
35
Turn On-Off the Scanner
35
Power Economy
36
Power Economy Vs. WPAN Connection
38
Understanding the Barcode Scanner
35
Memory
40
Transmit Buffer
40
Memory Mode
41
Free Memory
42
LED Indicator
43
Good Read LED
44
Good Read LED Duration
44
Beeper
45
Beeper Volume
46
Good Read Beep
47
Low Battery Alarm
48
Send "NR" to Host
49
Scan Modes
50
Auto off Mode
51
Auto Power off Mode
51
Laser Mode
51
Aiming Mode
52
Multi-Barcode Mode
52
Presentation Mode
53
Scanning Timeout
54
Delay between Re-Read
55
Read Redundancy (1D)
56
Addon Security for UPC/EAN Barcodes
57
Auto-Sense Mode
57
Cable Auto-Detection Via BT Cradle
58
Picklist Mode
58
Mobile Phone/Display Mode
59
Serial Number Stamp
59
Separator between Serial Number Stamp and Data
59
Decode Settings
60
Aiming Pattern
60
Decoding Illumination
60
Selecting Output Interface
61
Chapter 2
62
Bt Hid
62
Activate BT HID & Select Keyboard Type
63
Reset Connection
64
Keyboard Settings
65
Inter-Character Delay
70
HID Character Transmit Mode
71
Inter-Function Delay
71
Keyboard Support for Iphone/Ipad
72
Special Keyboard Feature
72
Transmit Speed
72
BT HID Auto-Reconnection
73
BT HID Slave/Master Switching
73
Simple Pairing for Iphone/Ipad
73
UTF8 Conversion
74
ACK/NAK Timeout
75
Activate BT SPP Slave Mode
75
BT SPP Slave
75
Inter-Function Delay
75
BT SPP Slave Hardware Flow Control
76
Activate BT SPP Master Mode
77
BT SPP Master
77
Inter-Function Delay
79
ACK/NAK Timeout
80
BT SPP Master Auto-Reconnection
81
BT SPP Master Hardware Flow Control
81
Switch between Master/Slave Modes
81
Keyboard Wedge Via BT Cradle
82
Activate Keyboard Wedge & Select Keyboard Type
83
Keyboard Settings
84
Inter-Character Delay
90
Inter-Function Delay
91
Special Keyboard Feature
91
UTF8 Conversion
91
Activate RS-232 Interface
92
Baud Rate
92
Via BT Cradle
92
Data Bits
93
Parity
93
Stop Bit
93
Flow Control
94
Inter-Character Delay
95
Inter-Function Delay
95
ACK/NAK Timeout
96
USB HID Via BT Cradle
97
Activate USB HID & Select Keyboard Type
98
Keyboard Settings
99
Inter-Character Delay
105
Inter-Function Delay
105
HID Character Transmit Mode
106
Special Keyboard Feature
106
USB HID Via Cradle Auto-Reconnection
106
USB Polling Interval
107
UTF8 Conversion
107
Activate USB Virtual COM
108
Activate USB Virtual COM_CDC
108
Inter-Function Delay
108
USB Virtual COM Via BT Cradle
108
ACK/NAK Timeout
109
USB VCOM Via Cradle Auto-Reconnection
110
Setting up a Wpan Connection
111
Connecting Via Cradle
112
Connect to Cradle
112
Change Interface
113
Configure Related Settings
114
Connecting Via Bluetooth ® Dongle
114
Change Interface
114
Configure Related Settings
115
Connect to Dongle
119
Changing Symbology Settings
127
Chapter 4
128
Codabar
128
Security Level
128
Start/Stop Transmission
128
CLSI Conversion
129
Start/Stop Character Selection
129
Code Length Qualification
130
Code 25 - Industrial 25
131
Select Start/Stop Pattern
131
Verify Check Digit
131
Code Length Qualification
132
Transmit Check Digit
132
Code 25 - Interleaved 25
134
Select Start/Stop Pattern
134
Verify Check Digit
134
Code Length Qualification
135
Transmit Check Digit
135
Code 25 - Matrix 25
137
Select Start/Stop Pattern
137
Verify Check Digit
137
Transmit Check Digit
138
Code Length Qualification
139
Code 39
140
Transmit Start/Stop Characters
140
Verify Check Digit
140
Code 39
141
Security Level
141
Standard/Full ASCII Code 39
141
Transmit Check Digit
141
Asterisks (*) as Data Characters
142
Code Length Qualification
142
Code 93
143
Code Length Qualification
143
Code 128
145
Security Level
145
132
146
Convert to EAN-13
146
Ean-8
146
Conversion Format
147
Transmit Check Digit
147
134
148
Addon Modes
149
Convert to ISBN
151
Convert to ISSN
151
Security Level
152
Transmit Check Digit
152
Gs1-128 (Ean-128)
153
Field Separator (GS Character)
153
Transmit Code ID
153
Application ID Mark
154
GS1 Formatting
154
Isbt 128
155
ISBT Concatenation
155
Msi
156
Transmit Check Digit
156
Verify Check Digit
156
Code Length Qualification
157
French Pharmacode
158
Transmit Check Digit
158
Italian Pharmacode
158
Plessey
159
Convert to UK Plessey
159
Transmit Check Digit
159
GS1 Databar (RSS Family)
160
Select Code ID
160
GS1 Databar Omnidirectional (RSS-14)
161
GS1 Databar Expanded (RSS Expanded)
162
GS1 Databar Limited (RSS Limited)
163
Application ID Mark
164
Field Separator (GS Character)
164
GS1 Formatting
164
GS1 Databar Security Level
165
Telepen
165
Telepen Output Ascii/Numeric
166
Upc-A
167
Convert to EAN-13
168
Transmit Check Digit
168
Transmit System Number
168
Upc-E
169
Convert to UPC-A
170
Select System Number
170
Transmit Check Digit
171
Transmit System Number
171
Code 11
172
Transmit Check Digit
172
Verify Check Digit
172
Code Length Qualification
173
Security Level
173
Composite CC-A/B
175
Composite CC-C
175
Composite Code
175
UPC Composite Mode
176
Data Matrix
177
Micropdf417
177
Pdf417
177
Symbologies
177
QR Code
180
Aztec
181
Maxicode
181
Microqr
181
Han Xin
182
Chapter 5
183
Letter Case
183
Character Substitution
184
Select a Set for Character Substituion
185
Symbologies for Character Substitution (All 3 Sets)
186
Prefix/Suffix Code
194
Code ID
195
Select Pre-Defined Code ID
196
Change Code ID
200
Clear Code ID Settings
202
Length Code
203
Multi-Barcode Editor
209
Edit a Concatenation of Barcodes
210
Activate the Concatenation of Barcodes
212
Removal of Special Character
214
Defining Output Format
183
Applying Formats for Data Editing
215
Chapter 6
216
Activating Editing Formats
216
Activate Editing Formats
216
Exclusive Data Editing
217
How to Configure Editing Formats
218
Select Format to Configure
219
Restore Default Format
220
Applicable Code Type
221
Configuring Format - Define Data Criteria
221
Data Length
230
Matching String & Location
230
Configuring Format - Define Data Field
232
Field Adjustment
232
Start Position
232
Total Number of Fields
233
Field Settings
234
Pause Field Setting
240
Configuring Format - Define Transmission Sequence
241
Example I
243
Programming Examples
243
Example II
244
Specifications
245
Firmware Upgrade
247
How to Upgrade Scanner Firmware
247
Using the Cradle
247
Using Bluetooth ® Dongle
249
How to Upgrade BT Cradle Firmware
251
Host Serial Commands
253
Serial Commands
253
Example
255
BT Cradle Setup Barcodes & Serial Commands
257
BT Cradle Serial Command and Equivalent Setup Barcodes
258
Example
260
Keyboard Wedge Table
261
Key Type & Status
263
Key Type
263
Key Status
263
Example
264
Numeral Systems
265
Decimal System
265
Hexadecimal System
266
ASCII Table
268
Entering PIN Code for Authentication
269
Use Preset PIN
269
Disable Authentication or Use Random PIN
270
Reading Driver Licenses
271
License Parsing Setup
271
File Type
271
Output Sequence Setup
272
Separators and Fields
278
Edit Separators
279
Edit Fields
280
Keyboard Type One-Scan Barcode
281
Bluetooth HID
281
4
