Cisco 2100 Series Configuration Guide

6-59
Cisco Wireless LAN Controller Configuration Guide
OL-17037-01
Chapter 6 Configuring WLANsWireless Device Access
Configuring WLANs

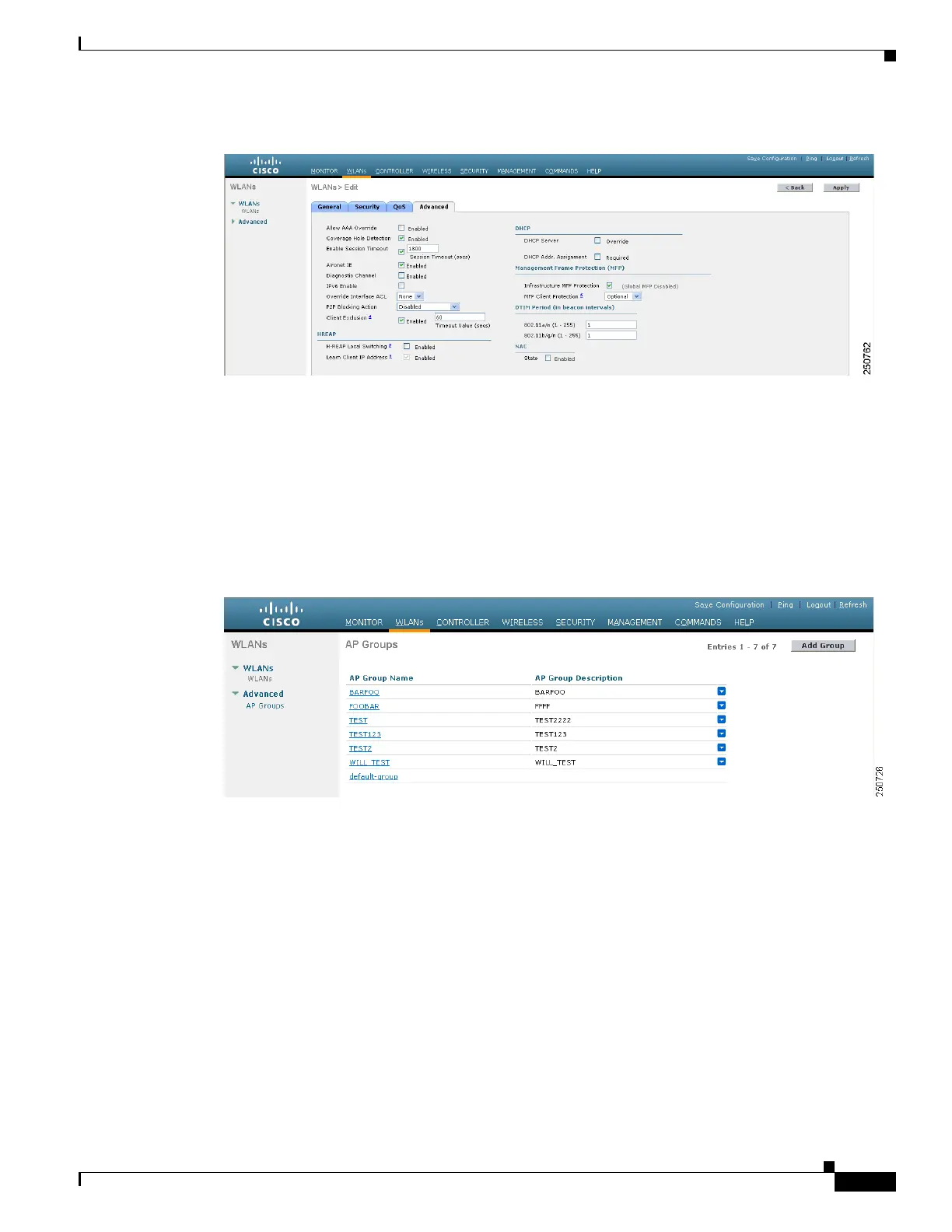

Figure 6-29 WLANs > Edit (Advanced) Page
d.
To configure NAC out-of-band support for this WLAN or guest LAN, check the NAC State check
box. To disable NAC out-of-band support, leave the check box unchecked, which is the default
value.
e. Click Apply to commit your changes.
Step 3 To configure NAC out-of-band support for a specific access point group, follow these steps:
a. Click WLANs > Advanced > AP Groups to open the AP Groups page (see Figure 6-30).
Figure 6-30 AP Groups Page
b.
Click the name of the desired access point group.
c. Click the WLANs tab to open the AP Groups > Edit (WLANs) page.
d. Click Add New to assign a WLAN to this access point group. The Add New section appears at the
top of the page (see Figure 6-31).

Cisco 2100 Series Specifications

General

Power over Ethernet (PoE)	No
Form Factor	Desktop
Encryption	AES, TKIP
Maximum Access Points	6
Security	WPA, WPA2, 802.1X
Dimensions	1.75 x 8.0 x 8.5 in. (4.4 x 20.3 x 21.6 cm)
