Chapter 8 Controlling Mesh Access Points
Adding Mesh Access Points to the Mesh Network

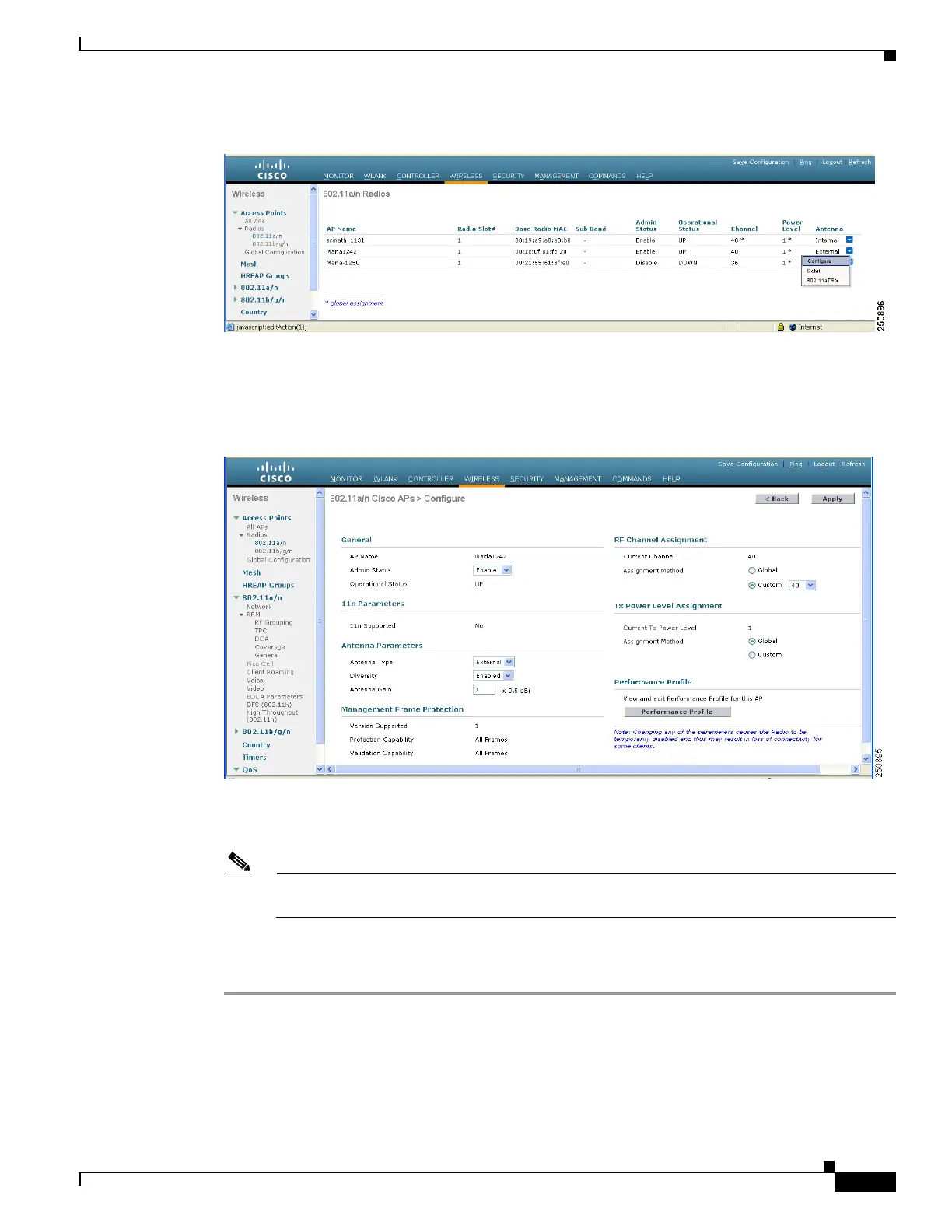

Figure 8-11 802.11a/n Radios Page
Step 2 Hover your cursor over the blue drop-down arrow for the mesh access point antenna that you want to
configure and choose Configure. The 802.11a/n Cisco APs > Configure page appears (see Figure 8-12).
Figure 8-12 802.11a/n Cisco APs > Configure Page
Step 3
Under the Antenna Parameters section, enter the antenna gain in 0.5-dBm units in the Antenna Gain
field. For example, 2.5 dBm = 5.
Note Only external antennas have configurable gain settings. The value that you enter must match the
value specified by the vendor for that antenna.
Step 4 Click Apply to commit your changes.
Step 5 Click Save Configuration to save your changes.

Cisco 2100 Series Specifications

General

Power over Ethernet (PoE)	No
Form Factor	Desktop
Encryption	AES, TKIP
Maximum Access Points	6
Security	WPA, WPA2, 802.1X
Dimensions	1.75 x 8.0 x 8.5 in. (4.4 x 20.3 x 21.6 cm)
