8-45
Cisco Wireless LAN Controller Configuration Guide
OL-17037-01
Chapter 8 Controlling Mesh Access Points
Viewing Mesh Statistics and Reports

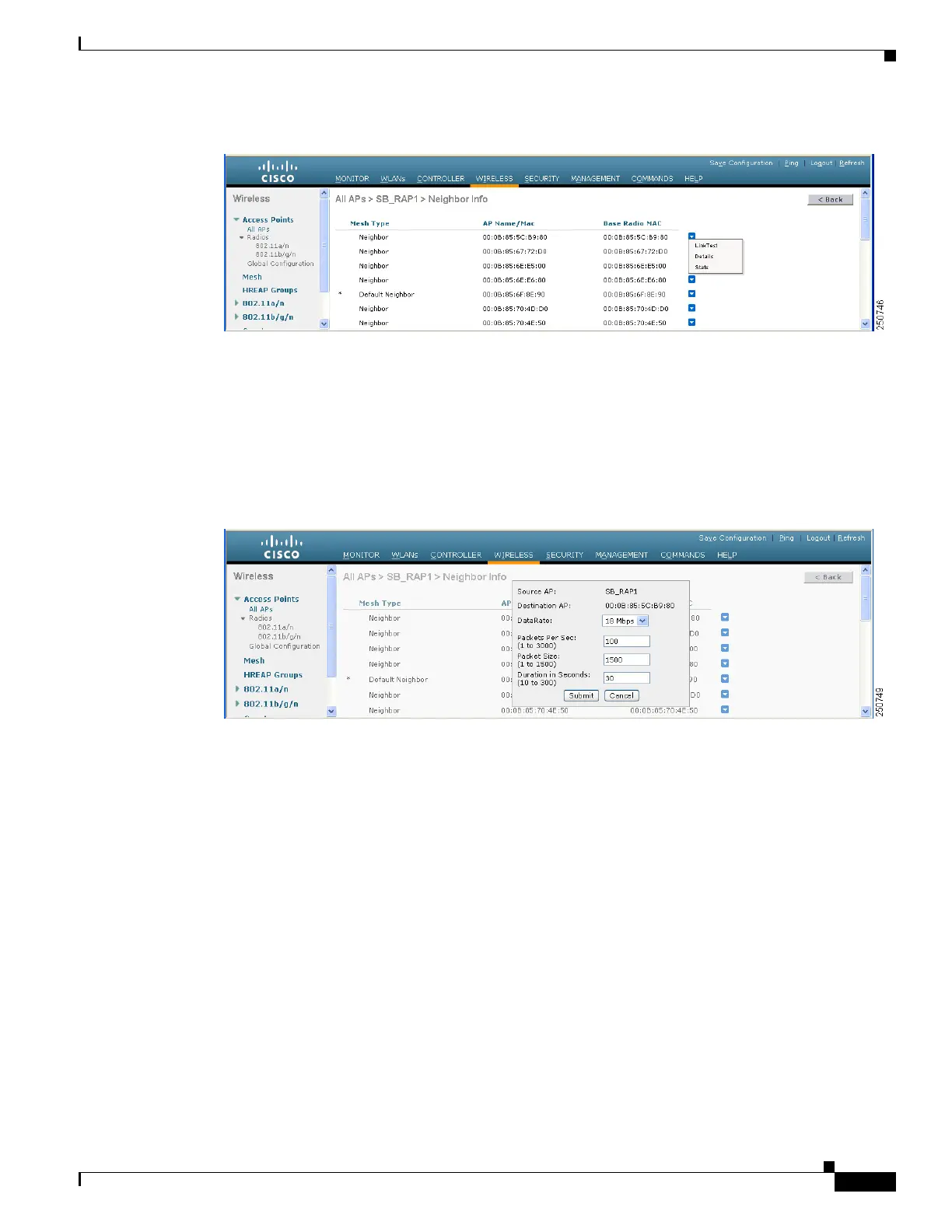

Figure 8-21 All APs > Access Point Name > Neighbor Info Page
This page lists the parent, children, and neighbors of the access point. It provides each access point’s
name and radio MAC address.
Step 3 To perform a link test between the access point and its parent or children, follow these steps:
a. Hover your cursor over the blue drop-down arrow of the parent or child and choose LinkTest. A
pop-up window appears (see Figure 8-22).
Figure 8-22 Link Test Window
b.
Click Submit to start the link test. The link test results appear on the Mesh > LinkTest Results page
(see Figure 8-23).
