Preparing Network Connections

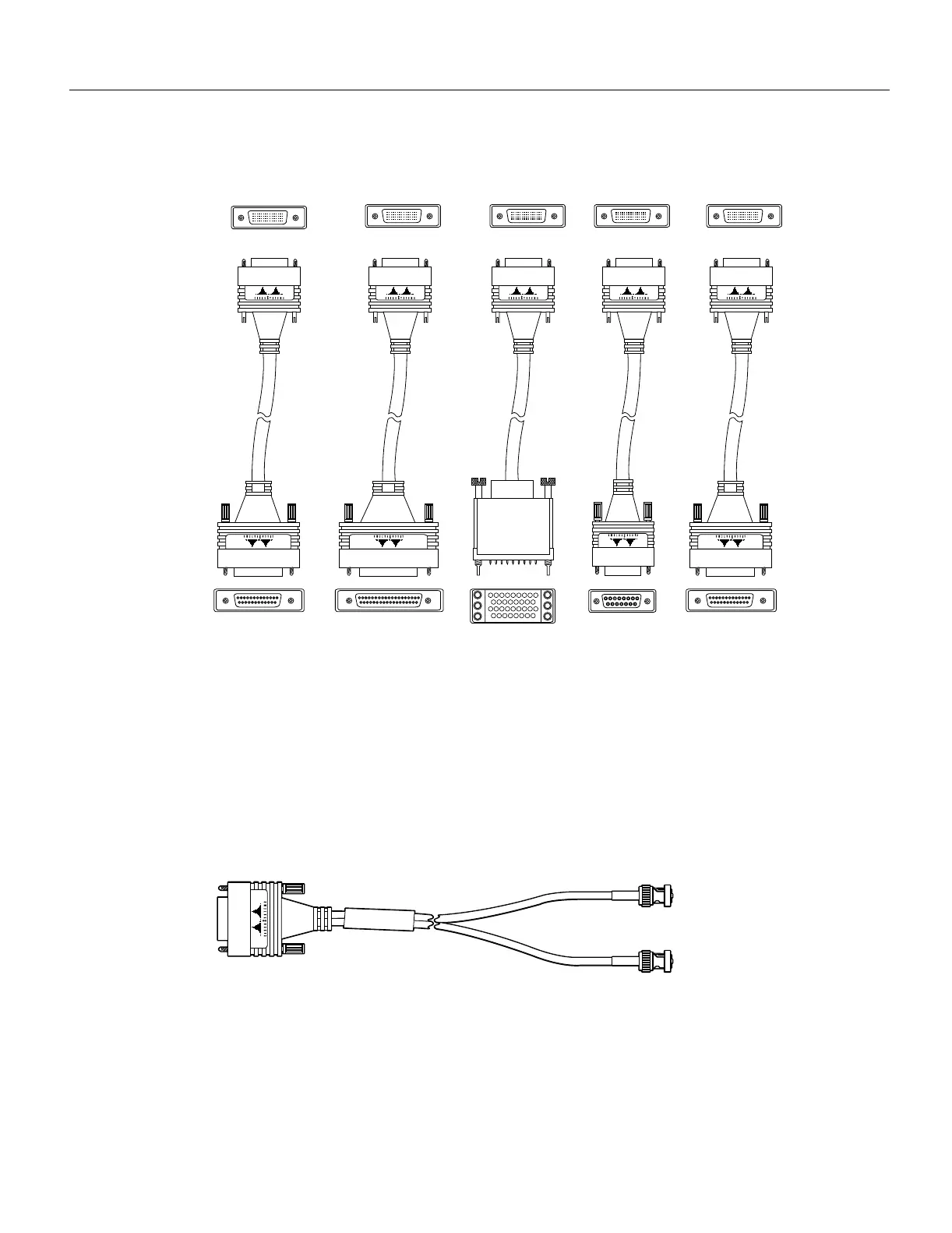

Figure 2-31 Serial Port Adapter Cables
E1-G.703/G.704 Cables
Figure 2-32, Figure 2-33, and Figure 2-34 show the unbalanced and balanced cables used for
connection between the E1-G.703/G.704 port adapter and your network. The port-adapter end of
each cable has a DB-15 connector.
Figure 2-32 E1-G.703/G.704 Interface Cable for 75-Ohm, Unbalanced Connections
(with BNC Connectors and Coaxial Cables)
Router (FSIP) connections
EIA/TIA-449 V.35 X.21
Network connections at the modem or CSU/DSU
H1727
EIA/TIA-232 EIA-530
H2421
