Cisco 7000 Hardware Installation And Maintenance

B-272 Cisco 7000 Hardware Installation and Maintenance
Interface Processor LEDs
FEIP LEDs
The FEIP contains the enabled LED, standard on all interface processors, and a bank of three status
LEDs for the ports. After system initialization, the enabled LED goes on to indicate that the FEIP
has been enabled for operation. (The LEDs are shown in Figure B-9.) The following conditions must
be met before the enabled LED goes on:
• The FEIP is correctly connected to the backplane and receiving power.
• The FEIP contains a valid microcode version that has successfully been downloaded.
• The bus recognizes the FEIP.
If any of these conditions is not met, or if the initialization fails for other reasons, the enabled LED
does not go on.

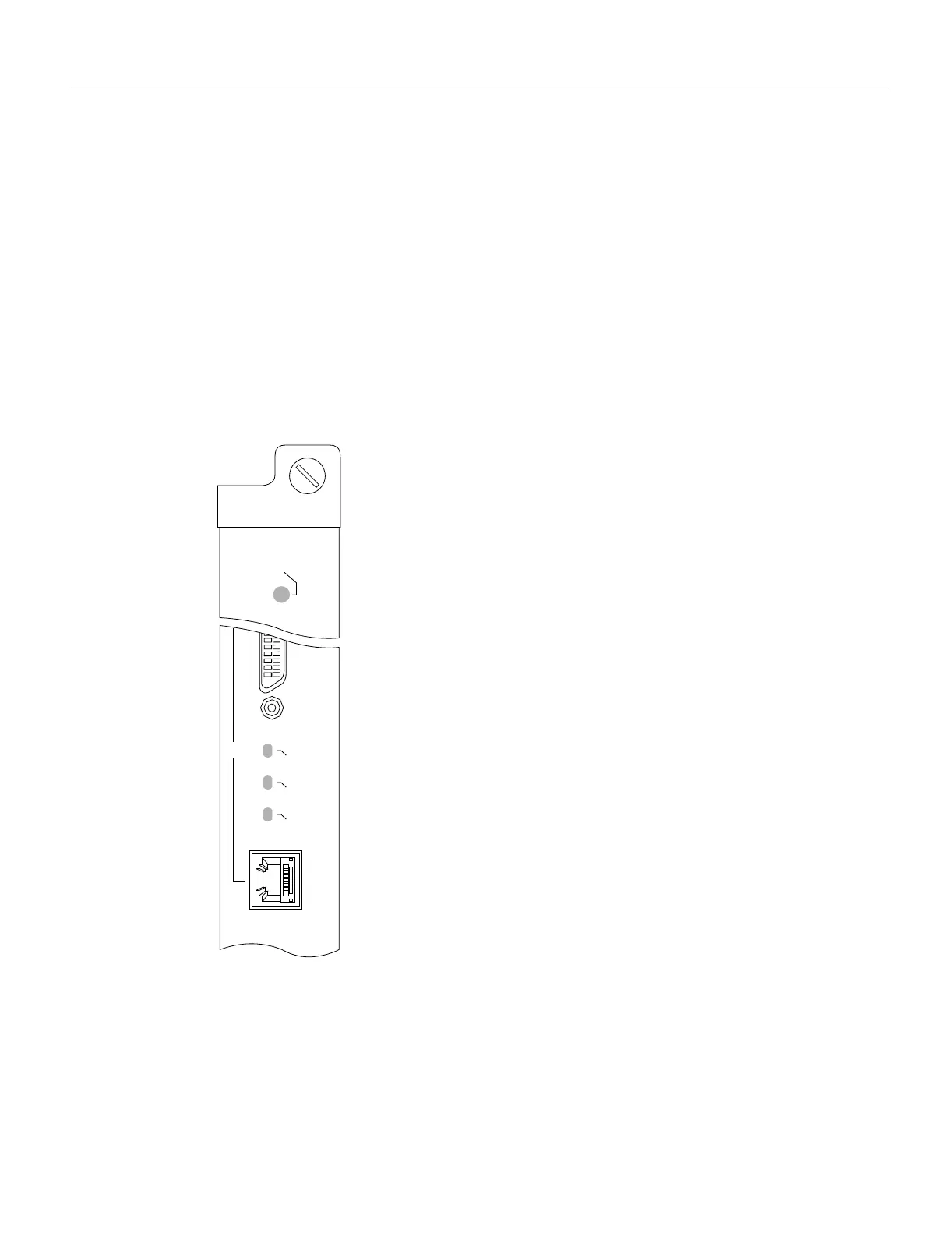

Figure B-9 FEIP LEDs
A bank of three LEDs indicates the following:
• MII—Lights when the MII port is selected as the active port by the controller.
• Link—Lights when the FEIP is receiving a carrier signal from the network.
• RJ-45—Lights when the RJ45 port is selected as the active port by the controller.
Either the MII LED or the RJ-45 LED should be on at one time; never both.
ENABLED
H3072
MII
LINK
RJ45
FAST ETHERNET MEDI
0
