3-128 Cisco 700 Hardware Installation and Mainteneance
Connecting Interface Cables
Channel Attachment Connections
Connecting bus and tag or Enterprise System Connection (ESCON) cables between the CIP and a
host processor is beyond the scope of this publication. The specific CIP connection requirements are
discussed in detail in the configuration note Channel Interface Processor (CIP) Installation and
Configuration (Document Number 78-1342-xx, where xx is the latest version of the document). This
configuration note ships with the CIP and is available on UniverCD.
Ethernet Connections
An Ethernet transceiver or MAU should already be connected to your network. Connect each
Ethernet port on the EIP to an Ethernet transceiver with a transceiver cable, or to an attachment unit
with an attachment unit interface (AUI). Figure 3-6 shows an example of a typical connection. Some
transceivers connect directly to the Ethernet port on the EIP (usually the 10BASE-T type) and do not
require an interface cable. On each EIP port, slide the metal bracket up over two posts on the cable
connector, or tighten the thumbscrews to secure the cable in the port and provide strain relief. For
descriptions of the connection equipment and connector locks, refer to the section “Ethernet
Connection Equipment” in the chapter “Preparing for Installation.”

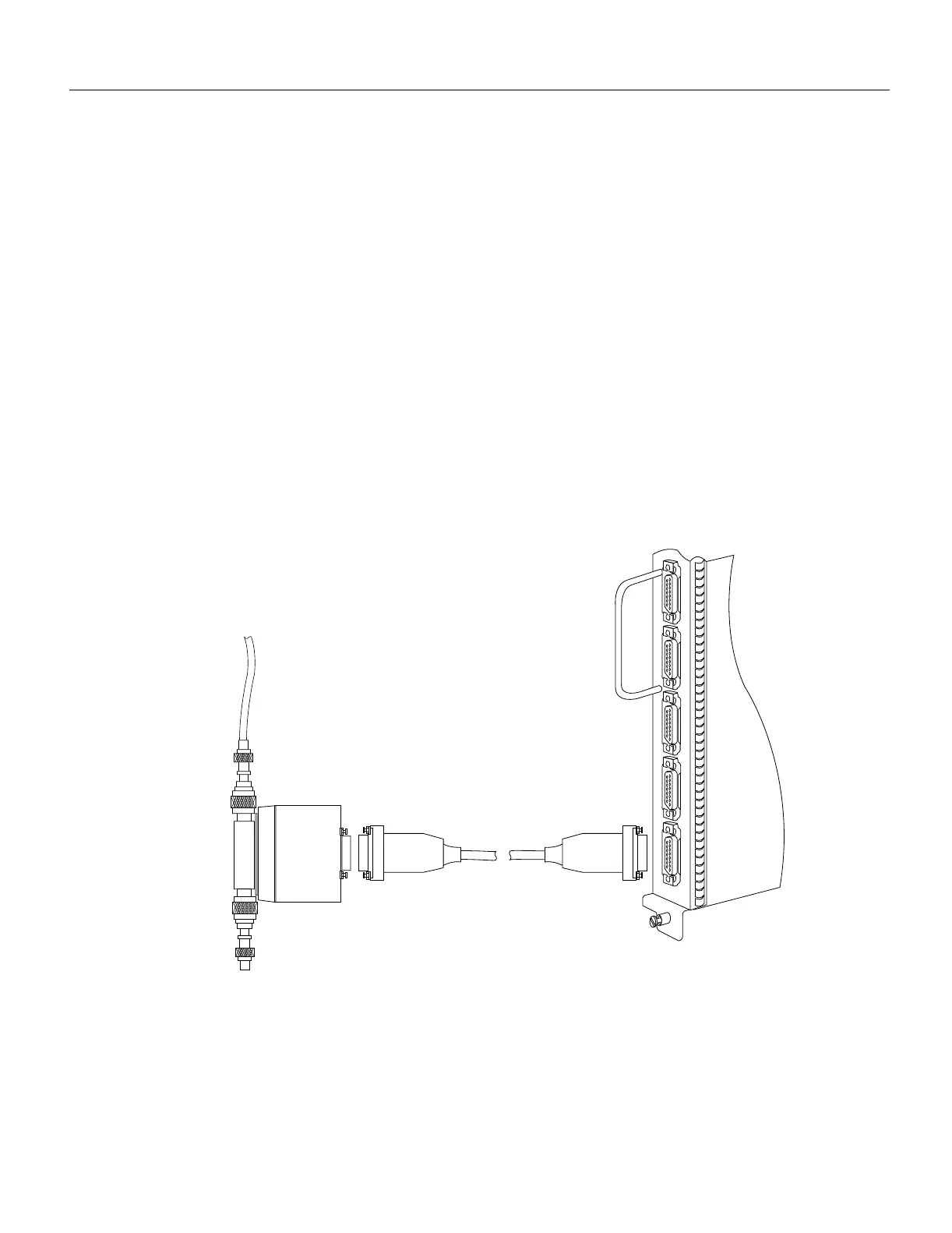

Figure 3-6 Ethernet Connections
MAU or
Ethernet
XCVR
AUI or transceiver cable
EIP
To
network
H1353a
