Installing the Router 3-127
Connecting Interface Cables
Step 3 To ensure that the clip is not pulled off when adjacent interface processors are removed,
position the clip parallel to the orientation of the AIP. (See Figure 3-5d.)

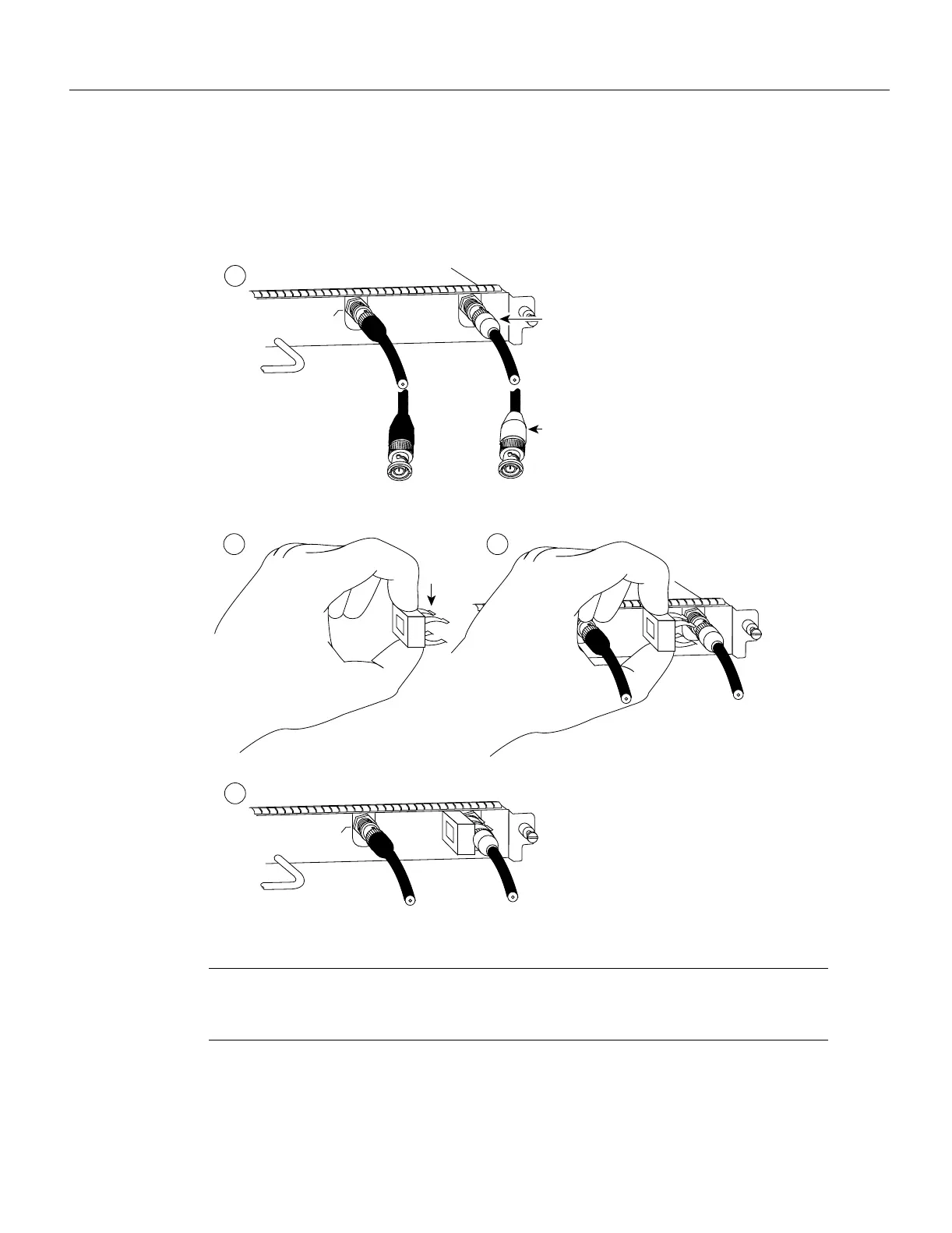

Figure 3-5 Installing the CAB-ATM-DS3/E3 Cable and EMI Filter Clip
Assembly—Horizontal Orientation Shown
Note Also refer to the Asynchronous Transfer Mode Interface Processor (AIP) Installation and
Configuration configuration note (Document Number 78-1214-xx, where xx is the latest version of
the document), which ships with the AIP card and is also available on UniverCD.
ATM INTERFACE PROCESSOR
UNI-34CX
XTMR
RCVR
White insulator
ATM INTERFACE PROCESSOR
UNI-34CX
XTMR
RCVR
H2897
To TX of switch
To RX of switch
ATM INTERFACE PROCESSOR
UNI-34CX
XTMR
RCVR
EMI filter
clip
a
b
d
c
White insulator
