Cisco Catalyst 2950 Hardware Installation Guide

C-3
Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-05
Appendix C Connecting to DC Power
Grounding the Switch
To ground the switch to earth ground, follow these steps. Make sure to follow any
grounding requirements at your site.
Step 1 Locate the ground lug and the two number-10-32 screws. The ground lug and
screws are on the rear panel of the Catalyst 2950G-24-EI-DC switch or on the
front panel of the Catalyst 2950ST-24 LRE 997 switch.
Use a standard Phillips screwdriver or a ratcheting torque screwdriver with a
Phillips head. Set the screws and the ground lug aside.
Step 2 If your ground wire is insulated, use a wire stripping tool to strip the 6-gauge
ground wire to 0.5 inch (12.7 millimeter [mm]) ± 0.02 inch (0.5 mm) as shown in
Figure C-1.

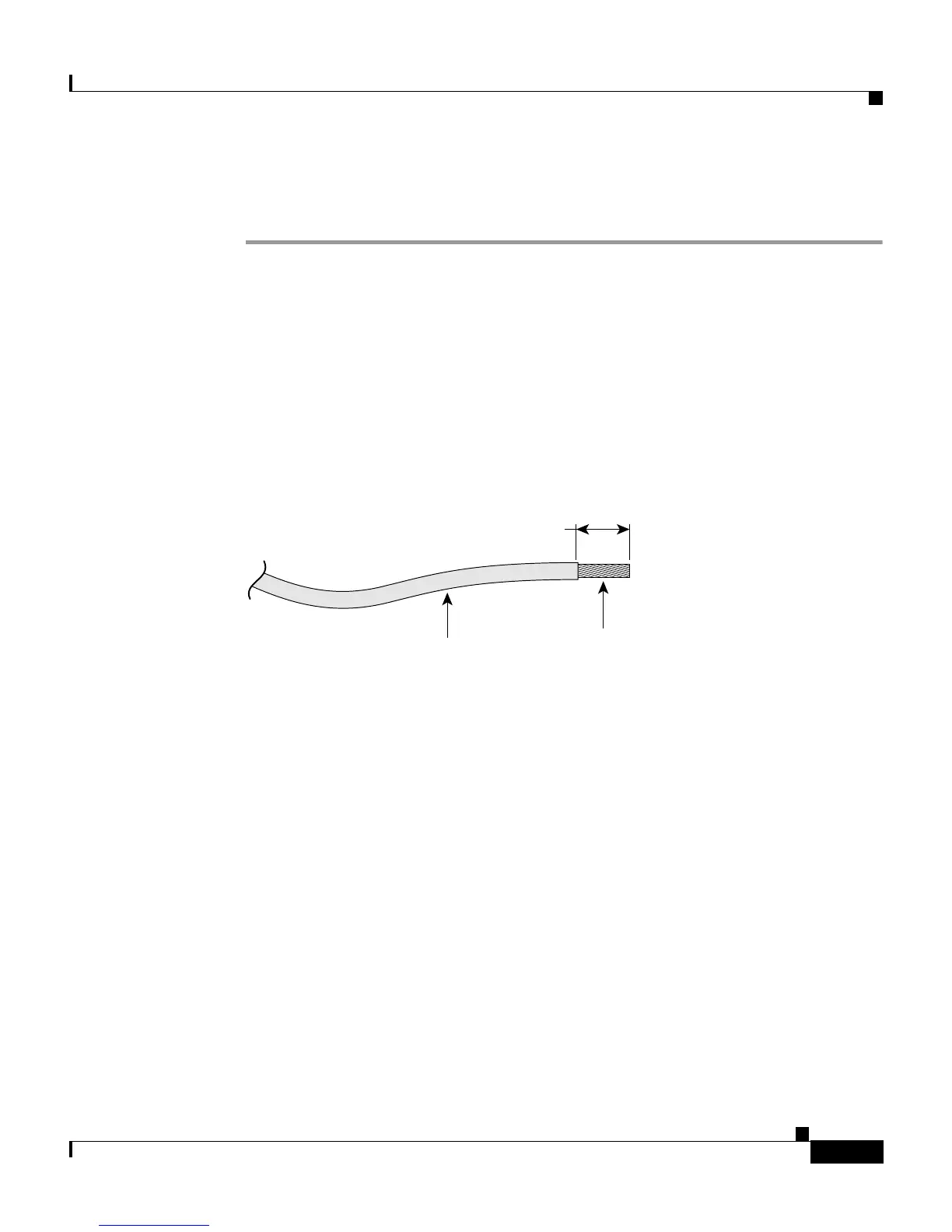

Figure C-1 Stripping the Ground Wire
Step 3
Slide the open end of the ground lug over the exposed area of the 6-gauge wire.
Insulation
Wire lead
0.5 in. (12.7 mm)
±
0.02 in. (0.5 mm)
60528

Cisco Catalyst 2950 Specifications

General

Forwarding Bandwidth	8.8 Gbps
Switching Capacity	13.6 Gbps
Forwarding Rate	6.6 Mpps
Weight	3.6 kg
RAM	16 MB
Flash Memory	8 MB
Operating Humidity	10% to 85% non-condensing
Uplink Ports	2 x 10/100/1000Base-T
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
Status Indicators	system
Operating Temperature	0 to 45°C
Ports	24 x 10/100 Ethernet ports
MAC Address Table Size	8, 192 entries
Power Supply	Internal 100-240V AC, 50-60Hz
