Cisco D9824 User Manual

Chapter 4 Front Panel Operation
100
Setup Menu: Outputs
To view the Outputs menus from the Main menu, press the RIGHT arrow key once
and then the SELECT key to reach the Setup menu. Then press the RIGHT arrow
key five times and the SELECT key to view the Outputs menu.
The Outputs menu allows you to set up the rear panel control relays for alarms, cue
tones and cue triggers, and the transport stream outputs, and Digital Program
Mapping (DPM).
For instructions on how to select and store settings, see About the Front Panel (on

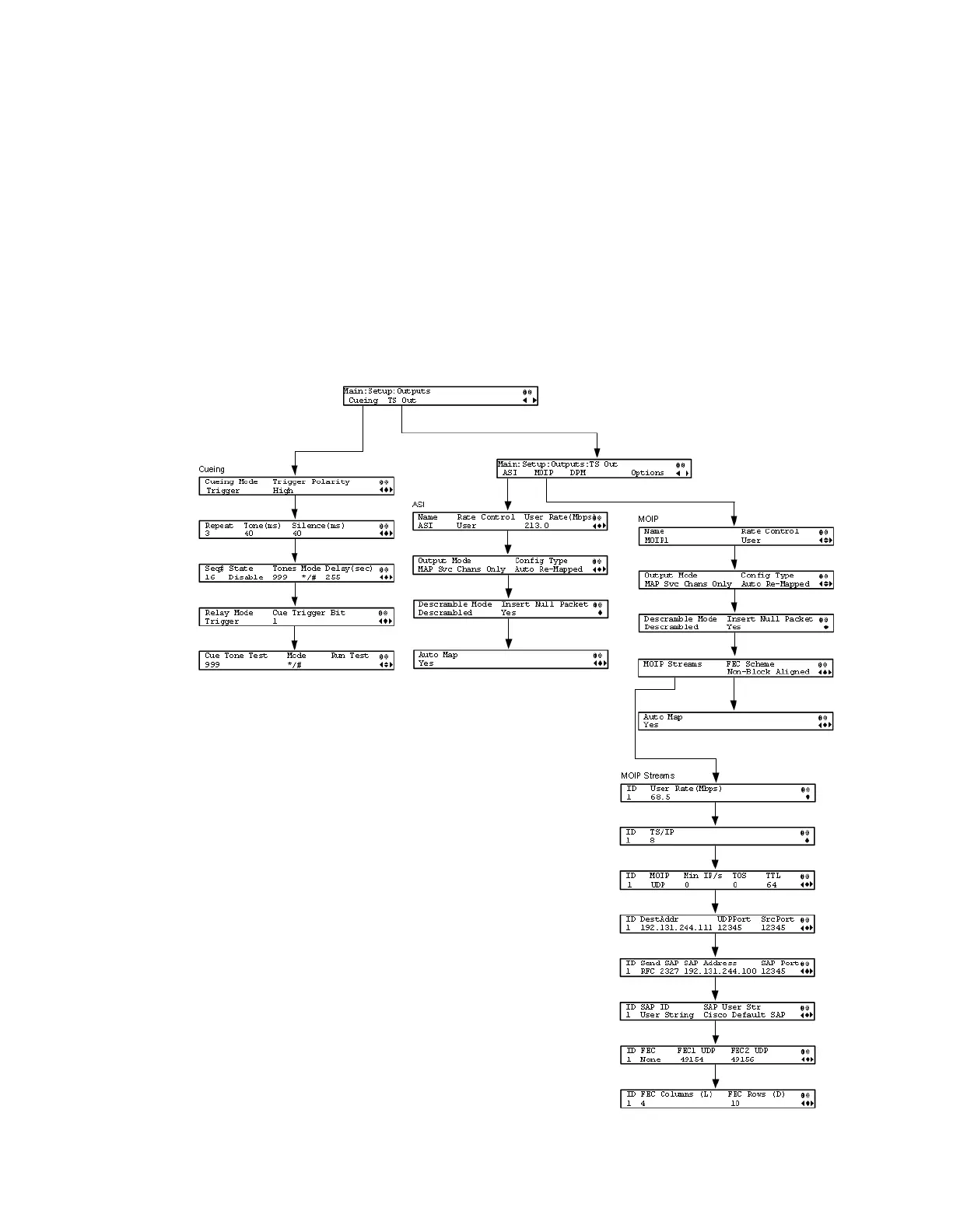

page 36). The Outputs menu has the following structure:

Cisco D9824 Specifications

General

Brand	Cisco
Model	D9824
Category	Receiver
Language	English
