Chapter 4 Front Panel Operation
Setup Menu
To view the Setup menu from the Main menu, press the RIGHT arrow key once and
the SELECT key. The Setup menu is split into nine parts; Administration, TS Input,
IP, Services, CI, Outputs, CA, Alarms/Warnings, and Noise Cutoff. For instructions
on how to select and store settings, see About the Front Panel (on page 36).
The Setup menu allows you to set all the parameters associated with the following:
 Administration - lock level, password, factory reset, keypad lock, download
mode and date and time
 TS Input - frequency parameters for acquiring and locking on to an RF signal, or
receiving an ASI input
 IP - parameters for setting up the Ethernet ports
 Services - audio video, captions, and VBI
 CI - parameters to decrypt programming available from service provider
programmers via CAM Smart Cards
 Outputs - alarm relays, cue tone/cue trigger setup, parameters for setting up the
transport stream out, which includes DPM
 CA - conditional access
 Alarms/Warnings - enables alarms/warnings traps and relays
 Noise Cutoff - muting thresholds
 DR - global, backup channel, and backup transport parameters for disaster
recovery

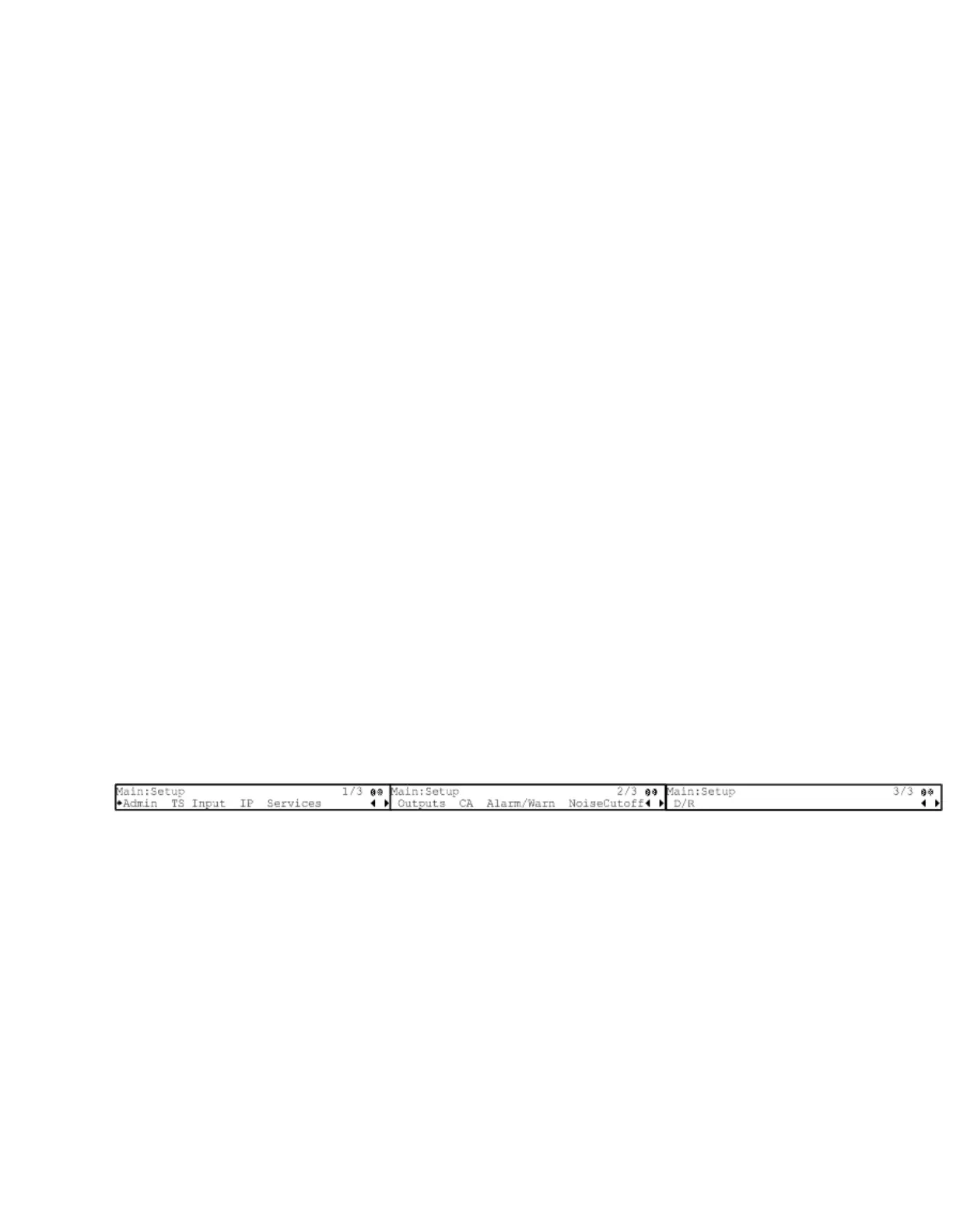

The Setup menu has the following structure:
To Next Page
