Configuring Transport Stream Information
Configuring the DPM ASI Details
Note: The following procedure defines all the available fields. For a typical setup of
the DPM, see Typical set up for Digital Program Mapping (DPM) (on page 241).
Note: After you make any changes, a successfully updated (session open) message
appears. The changes are displayed, but not saved. You must click Apply to save
and apply the changes.

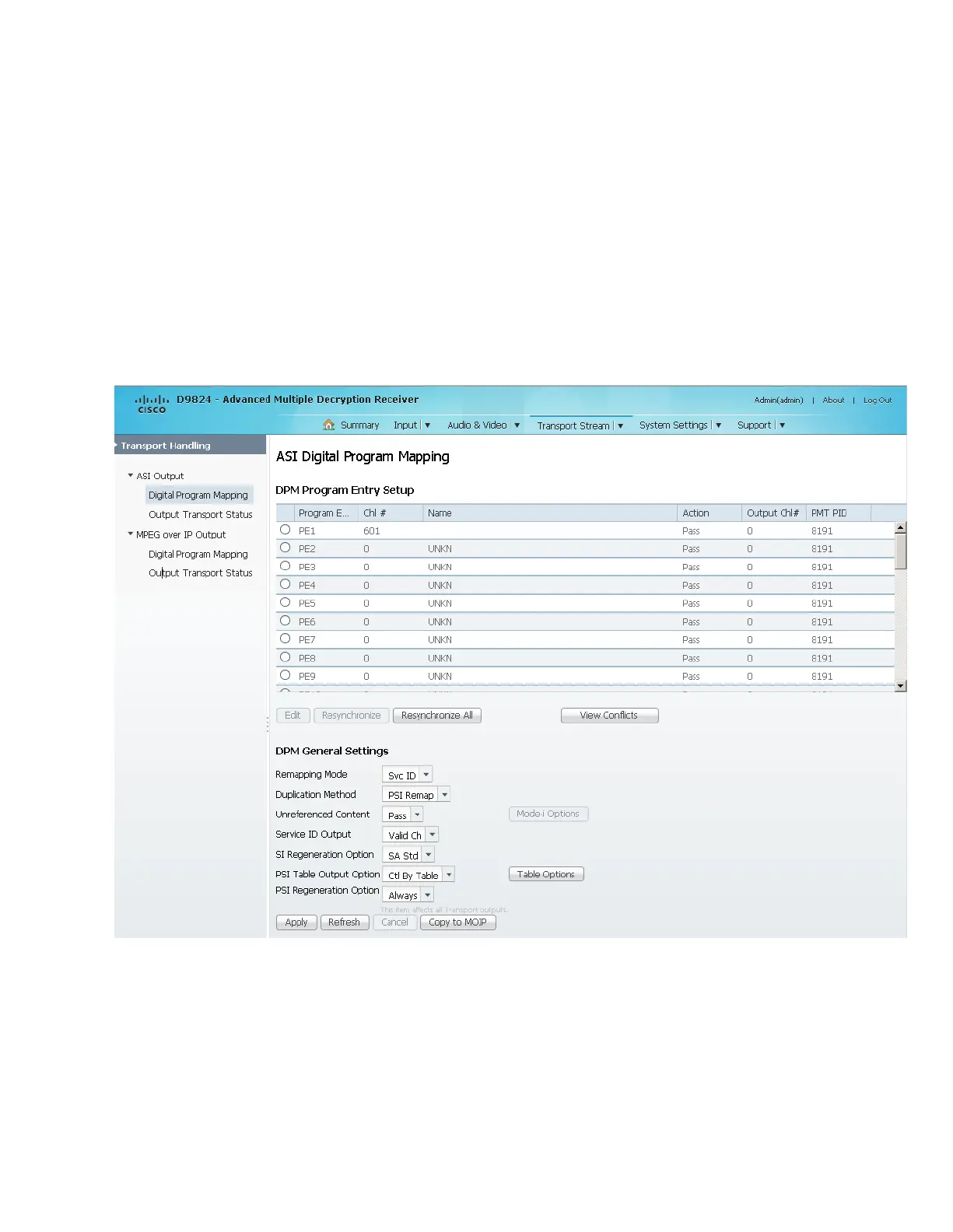

1 From the user interface of the D9824, choose Transport Stream > Digital
Program Mapping under ASI Output. The ASI Digital Program Mapping page
is displayed.
2 For each DPM Program Entry, it displays the input channel number (Chl #) and
channel name (Name). There are 32 channels (PE1 to PE32).
Note: Any changes made to the ASI DPM values will automatically change the
Mode Status to Edited by User in the ASI Outputs page.
3 In the table, select a program entry row you want to edit.
From the Action drop-down list, choose the DPM program action for the PE
(Pass, Map, or Drop).
