Startup Screen
41
Startup Screen

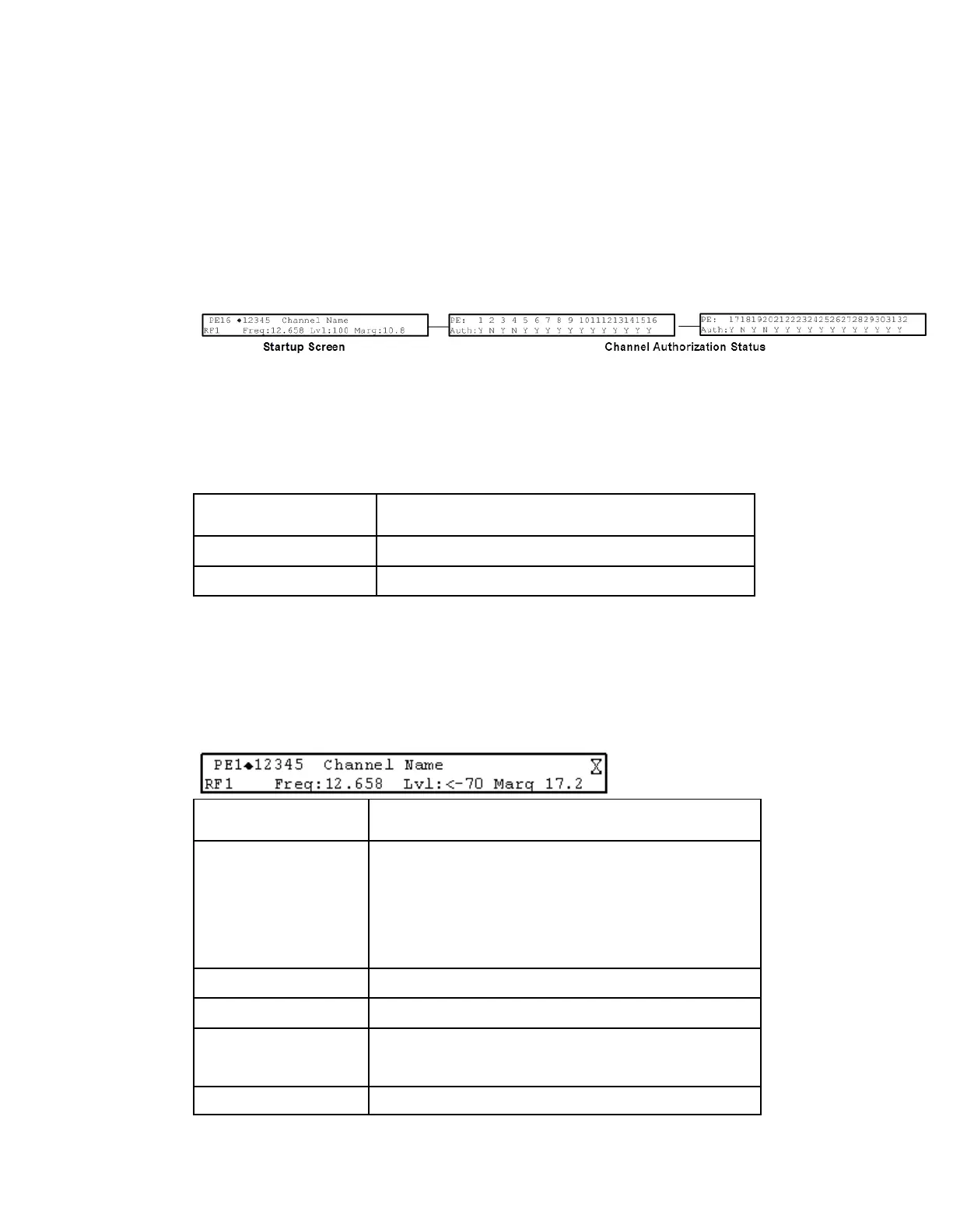

Main Structure
At power on and initialization, the startup screen is displayed similar to that shown
below. The screen also indicates the signal status.
Channel Authorization Status
From the startup screen, press the right or left arrow keys on the front panel keypad
to move to the PE entry authorization status screen. This screen indicates whether
the selected channel is authorized.
Auth Status
Description
Y
Indicates the channel is authorized.
N
Indicates the channel is not authorized.
LCD Panel
The LCD panel displays basic signal and program information in the LCD display,
as described in the following illustration:
LCD Setting
Description
PE
Program Entry (PE). The receiver supports up to 32
program entries.
All 32 PEs support PowerVu descrambling.
All 32 PEs can use the Conditional Access Modules
(CAMs).
12345
Channel for program monitoring.
Channel name
Name of the monitored program.
RF
Active RF input port.
Note: ASI will be shown if the ASI input port is active.
Freq:
Downlink frequency of the tuned signal in GHz.
