Cisco D9824 User Manual

Chapter 5 Web GUI Setup and Monitoring
192
Viewing the PID Input Status

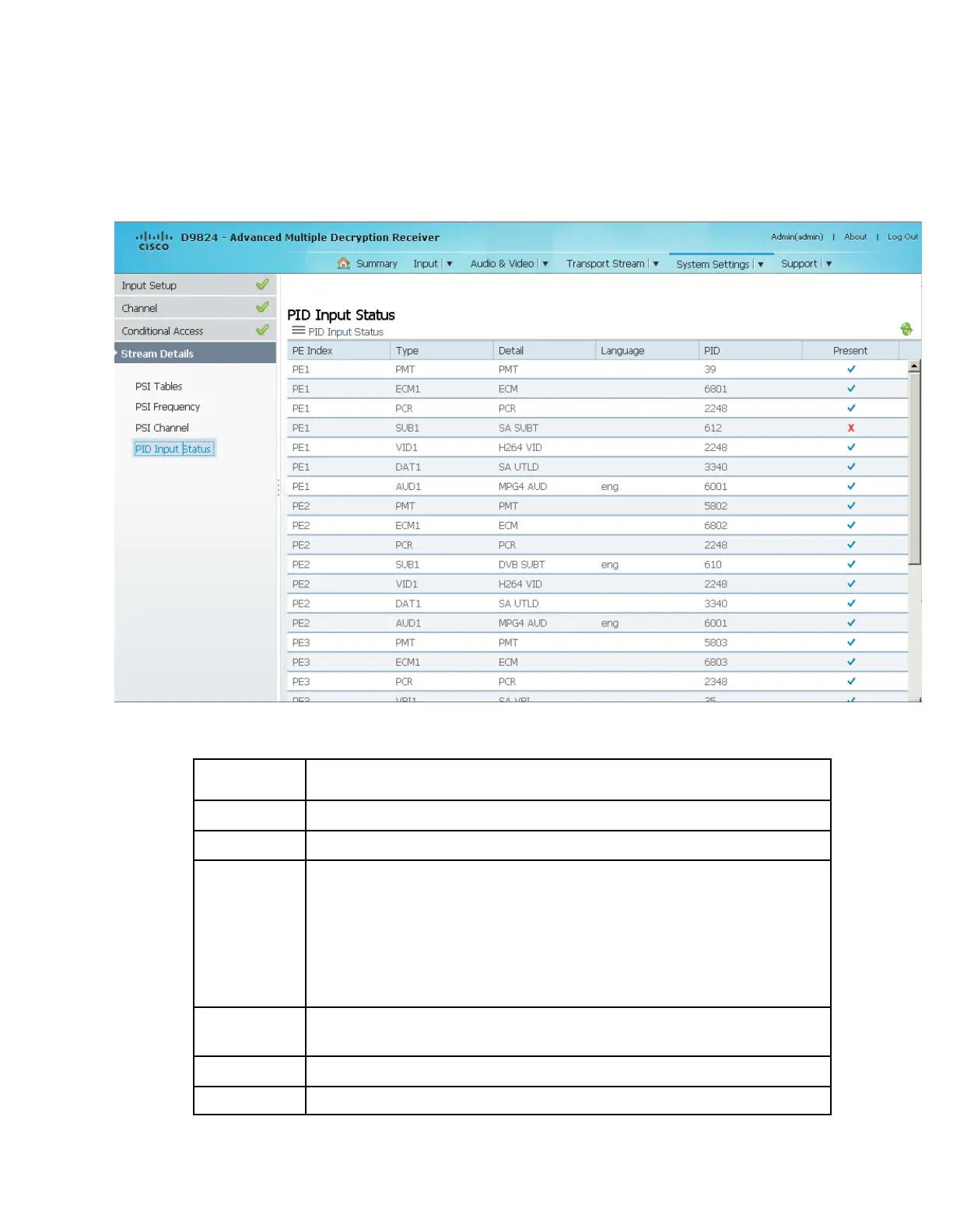

From the user interface of the D9824, choose Input > PID Input Status. The PID
Input Status page is displayed.
You cannot make any changes in the PID Input Status table and can only view the
available channels and their settings. The following is a list of the various columns:
Abbreviation
Description
PE Index
Indicates the Program Entry number (PE1 or PE32).
Type
Name assigned to the Program Entry, up to 4 alphanumeric characters.
Detail
Displays any detail associated with the program PID (e.g., MPG2 PID).
The parameters are: MPG1 VID, MPG2 VID, 422 VID, H264 VID, HD VID,
MPG4 VID, MPG AUD, MPG2 AUD, DVB AC3, DVB DDP, AAC AUD,
HEAAC, AUD, MPG4 AUD, DBE AUD, DTS AUD, DVB TXT, DVB VBI,
DVB SUBT, DVB ASYN, DVB SYNS, DVB SYND, DVB MPE, DVB DCAR,
DVB OCAR, SA VBI, ATSC AC3, ATSC DDP, SA UTLD, SCTE DPI, SA
HSD, SA CDDL, SA WBD, SA SUBT, ECM, EMM, PCR, or UNKNOWN.
Language
Displays the language code carried in the PMT for the current PID, if
applicable.
PID
The program PID number, in the range from 1 to 8192.
Present
Indicates whether the PID is present in the incoming stream (Yes or No).
