Chapter 5 Web GUI Setup and Monitoring
238
Map Mode
Description
Svc ID
The elementary PIDs are not changed. Channels are remapped by
changing their PSI references. When this mode is selected, PE
detailed PID mapping cannot be edited.
Svc ID & PID
Channels and the elementary service PIDs can be mapped.
3 From the Duplication Method drop-down list, choose the duplication method of
the DPM program, which modifies the PSI to duplicate a program and its
content. This parameter is only used if Remapping Mode is set to Svc ID & PID.
The following table describes the each duplication method:
Duplic Mode
Description
PSI Remap
Every input PID can be mapped to one output PID. If PID
mapping conflicts exist, DPM will use the Precedence Rule to
decide which output PID to use. All PMTs using the input PID
will be updated to reference the output PID specified by the
winner.
Pkt Copy
An input PID can be mapped to multiple output PIDs. The PID
will be duplicated as many times as needed (up to a certain
hardware limitation).
Pkt Copy is recommended for most applications.
4 From the Unreferenced Content drop-down list, choose the action to use for
unreferenced content. Unreferenced content is the remainder of the transport
that is not filtered by the program entries. Choose Drop (default) to drop all
unreferenced content. Choose Pass to pass all unreferenced content to the output

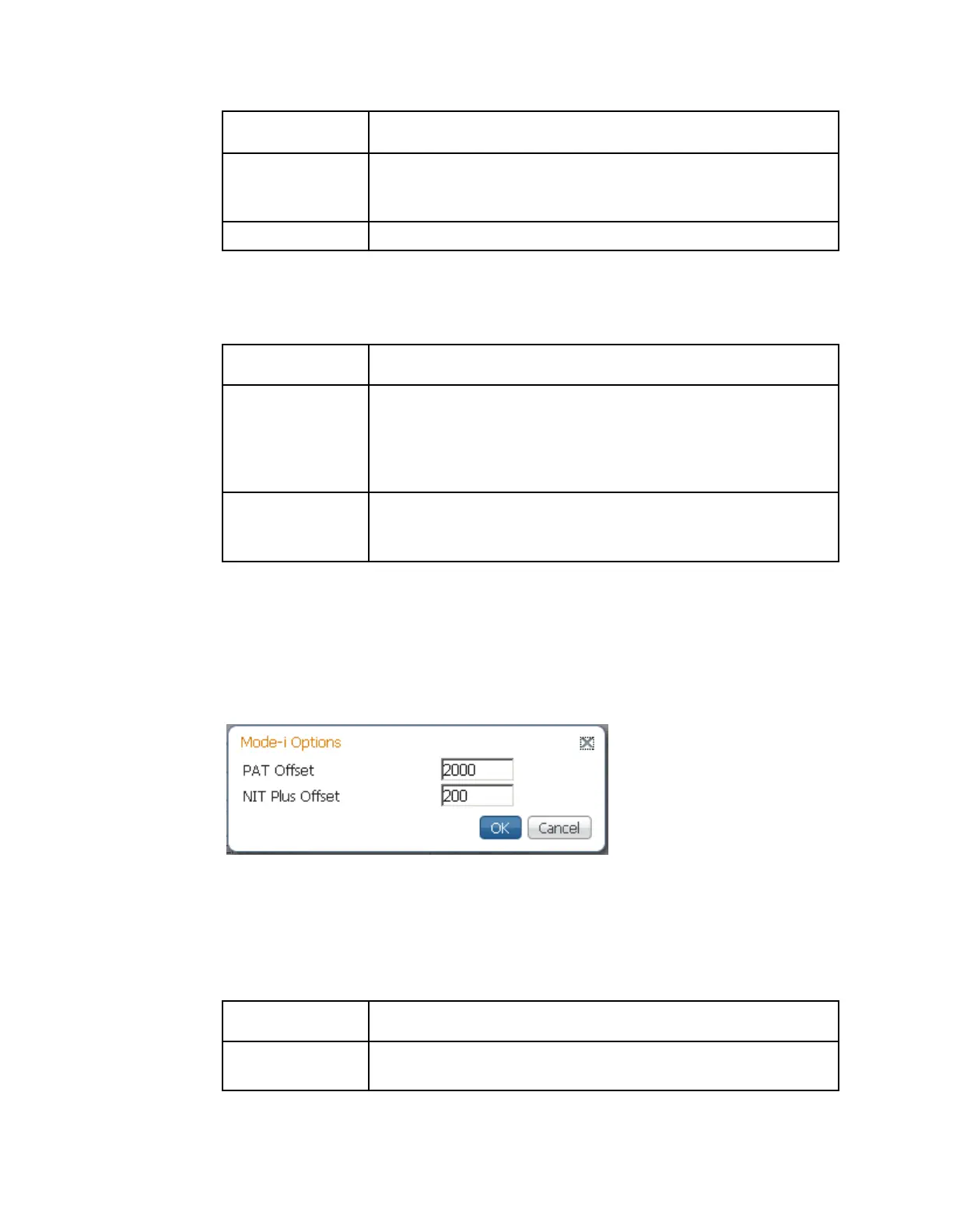

unchanged. Choose Mode-i and then click Mode-i Options to open the Mode-i
Options dialog box.
Mode-i is a customer-specific mode, only to be used if directed by Cisco. For
more information, contact Cisco Services.
5 From the Service ID Output drop-down list, choose whether the receiver should
always generate PSI tables for the Mapped PE even if the selected input channel
is not available, or for only valid service channels/IDs. The following table
describes each service ID:
Svc ID
Description
Valid Ch
Only transmits the PSI tables for the mapped program if the
program exists on the input stream.
