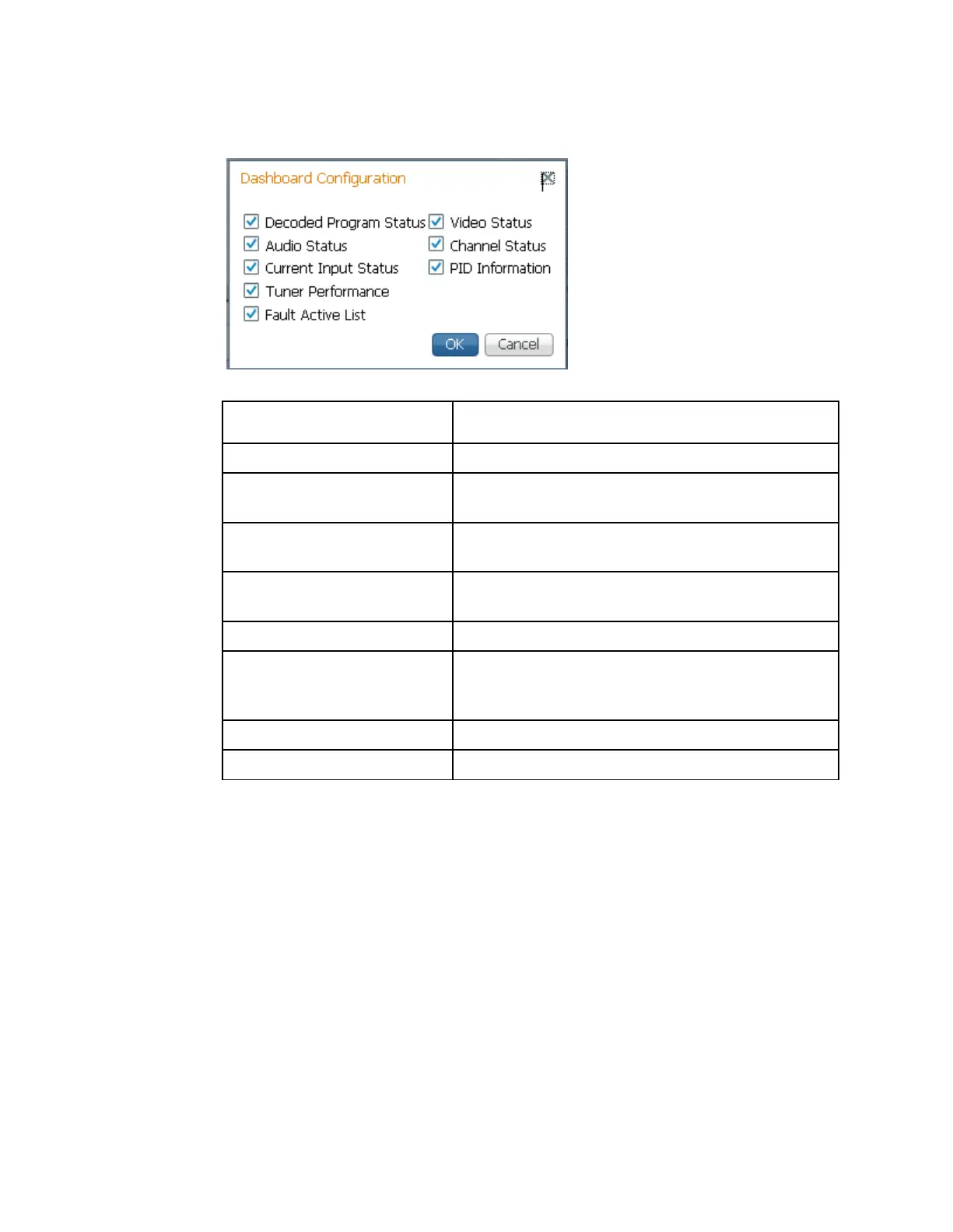

You can also customize the Dashboard by clicking Add/Remove Module. The
Dashboard Configuration window is displayed.
The following table describes the available modules.
Module
Description
Decoded Program Status
Displays channel and service information.
Audio Status
Displays the current audio status information, such as
the audio format and sampling frequency.
Current Input Status
Displays the current RF Tuning Status information,
including the downlink frequency and signal status.
Tuner Performance
Displays the satellite dish status, such as the C/N
Margin and Signal Level.
Video Status
Displays the current video information.
Channel Status
Displays the channel status information, such as the
type of CA used and whether the receiver is
authorized to receive the signal.
PID Information
Displays the PIDs associated with the channels.
Fault Active List
Displays the currently active alarms and warnings.
Alarms/Warnings
The bottom right corner of the Summary Dashboard page displays the total number
of active alarms, active warnings, and clear messages. Clear messages are calculated
as follows: total number of alarms + total number of warnings - total number of
active alarms - total number of active warnings.
