Connecting the Input/Output Signals
Connecting the Cue Tone Interface

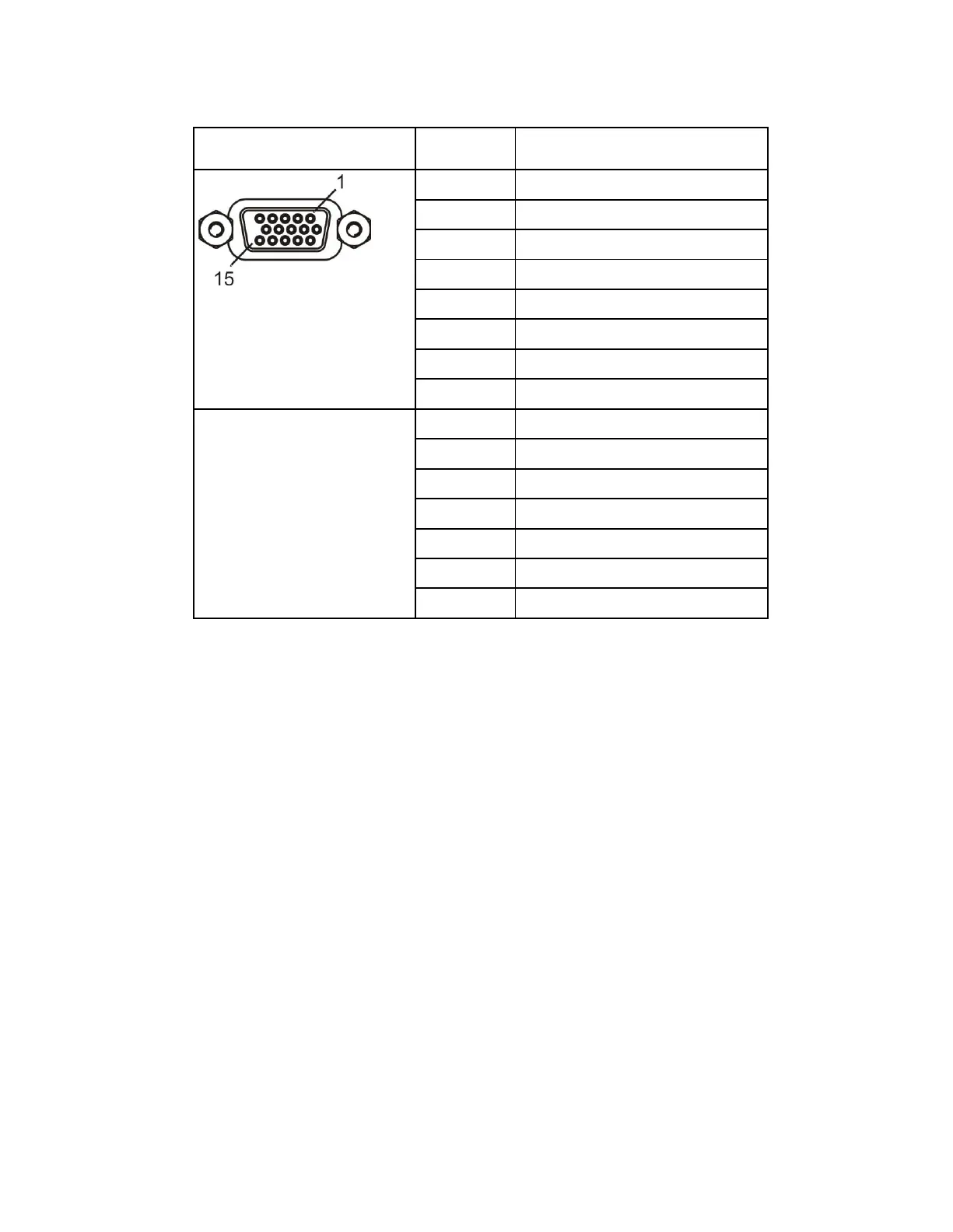

Connect the Cue Tone pins, 13 and 14 to a device to facilitate ad-insertion using
DTMF Analog Cue Tones.
Connecting the Cue Trigger Interface
Connect the Cue Trigger pins (1 to 8) to up to 8 serial control devices or a device to
control ad-insertion. These outputs are user-configurable on the front panel menu.
Configuring Open-collector Outputs
The D9858 supports decoding of SCTE-35 messages with DTMF descriptor. The
D9858 outputs tones or sets the open collector contacts according to the content of
the DTMF descriptor in the Cisco D9054 HDTV Encoder and the Cisco D9036
Modular Encoding Platform. For information on the open-collector output settings,
see the Cisco D9054 HDTV Encoder Installation and Operation Guide, part number
4043745 and Cisco D9036 Modular Encoding Platform Installation and Configuration
Guide, part number 4043885.
