Setting up Audio and Video Information
Setting up Audio and Video Information
Setting up the Video Parameters
1 From the user interface of the D9858, choose Audio & Video > Video Decoding.

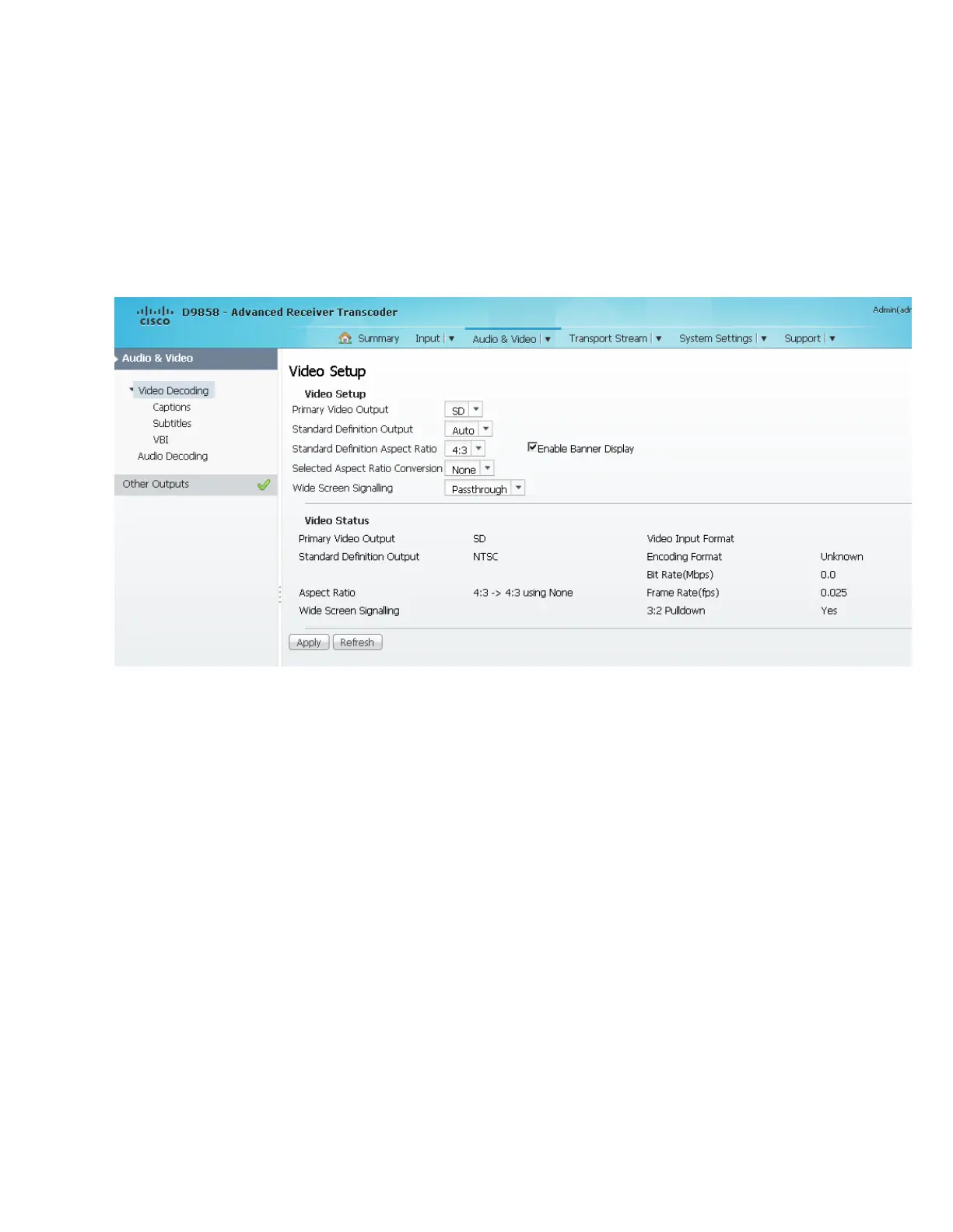

The Video Setup page is displayed.
2 From the Primary Video Output drop-down list, choose the format for local
decoding. The options are Auto, HD 720p, HD 1080i, or SD.
3 From the Standard Definition Output drop-down list, choose the actual
Standard Definition output format of the primary video if the PV Output is set to
SD. The options are Auto, NTSC, PAL-N (AR), PAL-M, or PAL-B/G/I/D. You
must use NTSC for 525-line systems and PAL-B/G/I/D for 625-line systems.
4 From the Standard Definition Aspect Ratio drop-down list, choose the Standard
Definition aspect ratio of your TV monitor (4:3 or 16:9). The default is 4:3. Set it to
the corresponding value.
5 From the Selected Aspect Ratio Conversion drop-down list, choose the aspect
ratio conversion that the unit will perform on the incoming signal for the picture
to be displayed correctly on your TV, based on the Standard Definition Aspect
Ratio selection.
The options are None, Auto, Auto AFD, 16:9 L/B, 4:3 P/B, 14:9, 4:3 CCO, and
16:9 Scale. The default is Auto.
6 Choose the wide screen signaling output mode from the Wide Screen Signalling
drop-down list. It is used to select how the receiver affects PAL WSS when it is
present in the VBI line 23. The table below describes each of the options. The
default is Auto.
