Rear Connector Panel
23
Rear Connector Panel

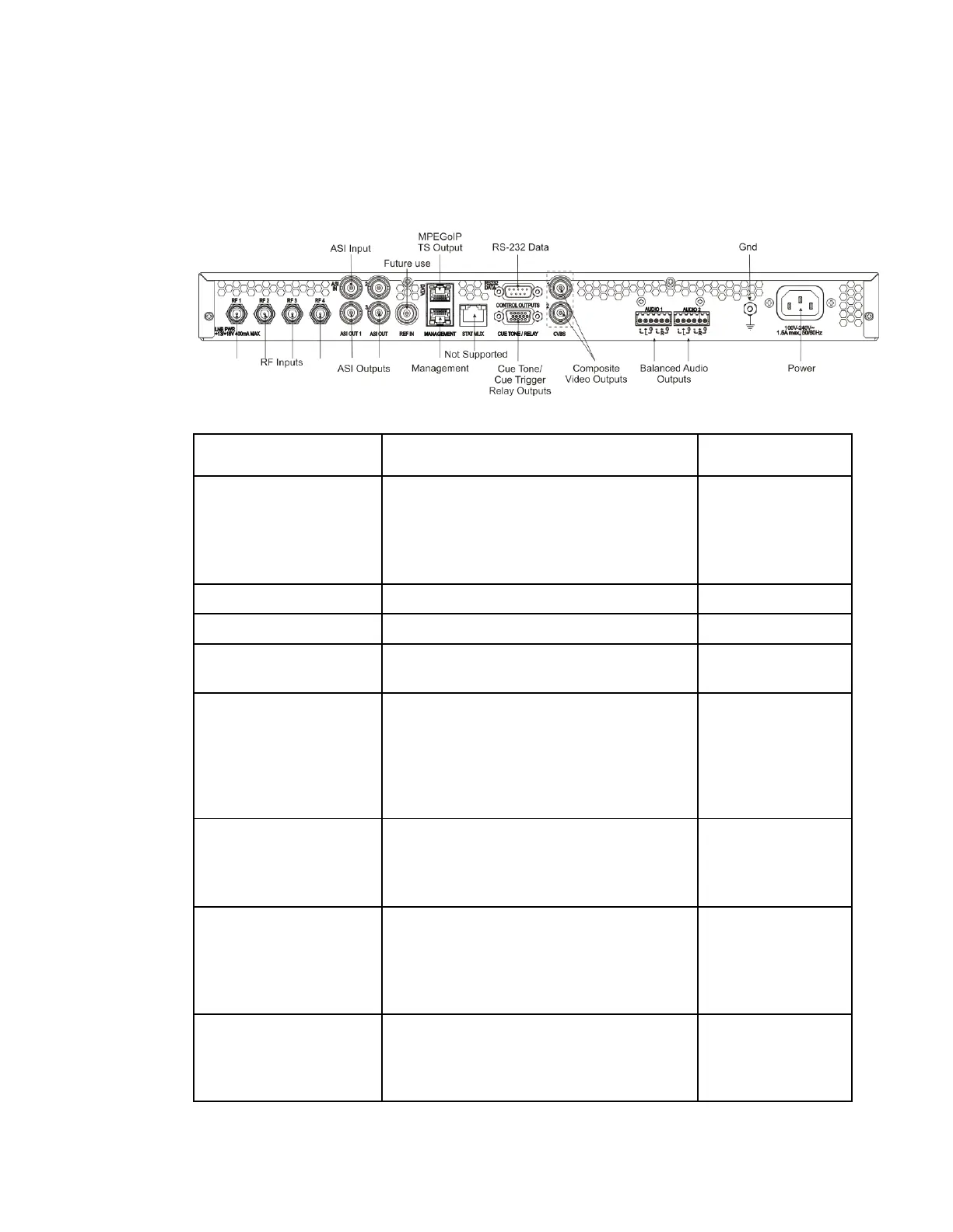

The following diagram show the rear connector panel of the D9858 transcoder:
The following table describes the function and type of the various connectors.
Connector
Description
Type
RF Inputs
Each input accepts an LNB signal input.
RF1 provides LNB power for use when no
external LNB power source is available. RF2
to RF4 require an external LNB power
source.
F
Reference Input
For future use.
BNC
ASI Input
Asynchronous Serial Interface Input.
BNC
ASI Outputs
Three Asynchronous Serial Interface
Outputs.
BNC
TS Output
This is for the MPEGoIP and MPE outputs.
The MPEGoIP output of the transport
stream is encapsulated in the IP packets to a
groomer for distribution. The MPE output
receives IP packets from the transport
stream.
RJ-45
Management
Supports the following network protocols:
Telnet, SSHv2, HTTP, HTTPS, SNMPv2,
Syslog/DTX, SNTP, FTP (client side),
MPEGoIP output, and TFTP.
RJ-45
Cue Tone/Cue Trigger
Relay Outputs
Program relay provides programmed
responses for alarms, cue trigger states for
ad-insertion equipment, or a cue tone
output for connection to ad-insertion
equipment.
15-pin sub-D female
RS-232 Data
RS-232 data output: 7 bits, even parity, 1
stop bit, up to 38.4 kbps. These outputs are
user-configurable via the Setup menu on
the front panel.
9-pin sub-D female
