Reacquiring the Network Information

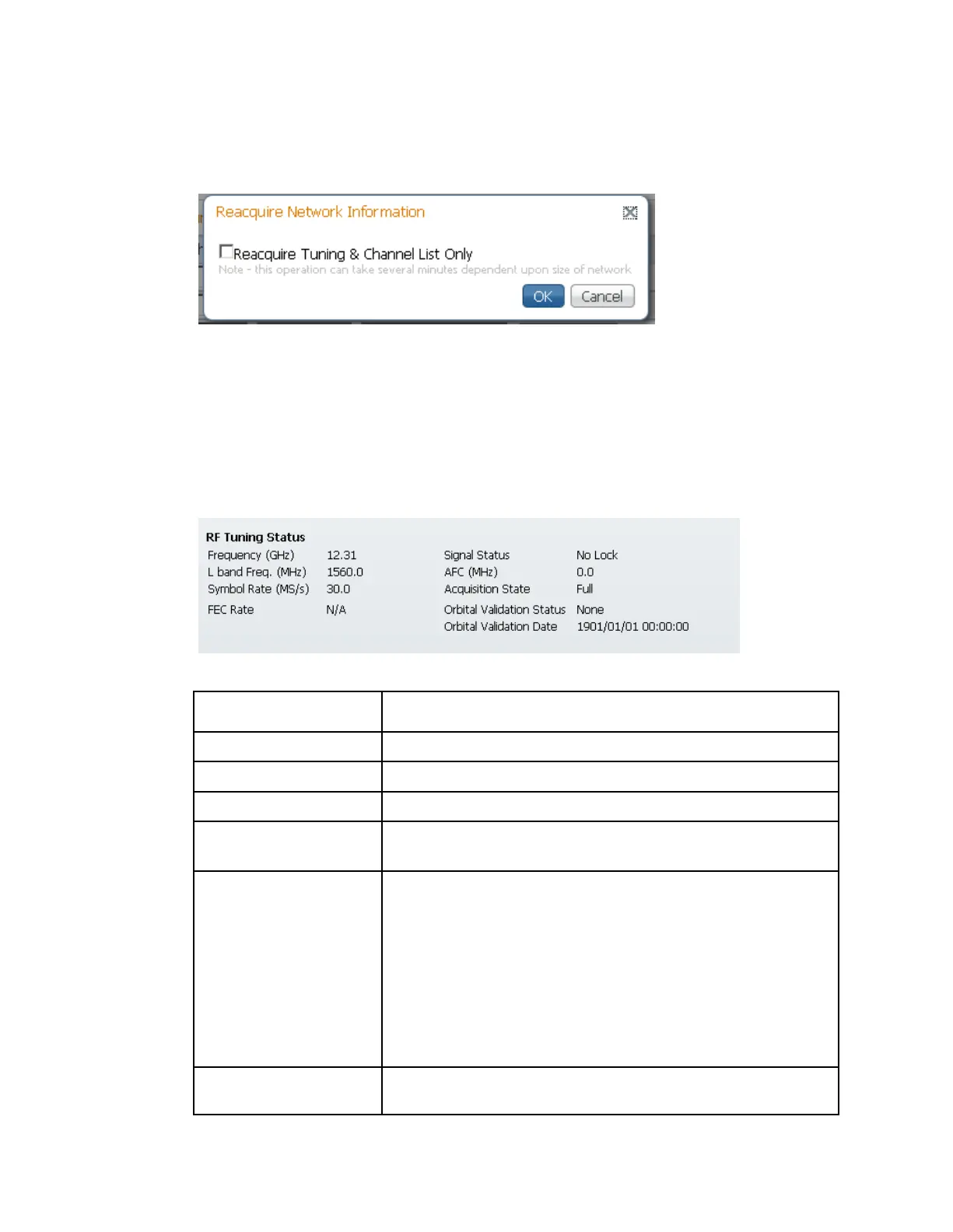

Click Reacquire to re-acquire the signal using the tuning parameters from user
settings. The Reacquire Network Information window is displayed.
Check the Reacquire Tuning & Channel List Only check box for the decoder to
tune back to the user configured input and frequency and re-acquire the PSI/SI
information back to the selected channel. Click OK.
Note: This operation can take several minutes, depending on the size of the network.
Viewing the Current Input Status
The Current Input Status section displays the current RF status.
The following table describes the Current Input Status information displayed:
Parameter
Description
Frequency (GHz)
The current downlink frequency, in GHz.
L band Frequency (MHz)
The current L-Band frequency, in MHz.
Symbol Rate (Msym)
Symbol rate of the received signal, in Msymbols/second.
FEC Rate
The FEC (Forward Error Correction) rate of the received signal
(N/A, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8, 8/9 or 9/10).
Signal Status
Indicates whether the input signal is locked.
 Locked - Indicates the transcoder is locked to a carrier
with no valid content.
 Lock+Sig - Indicates the transcoder is locked to a
carrier with valid content.
 No Lock - Indicates the transcoder is not locked to a
carrier.
AFC (MHz)
Indicates the current Automatic Frequency Control count, in
MHz.
