Configuring System Settings

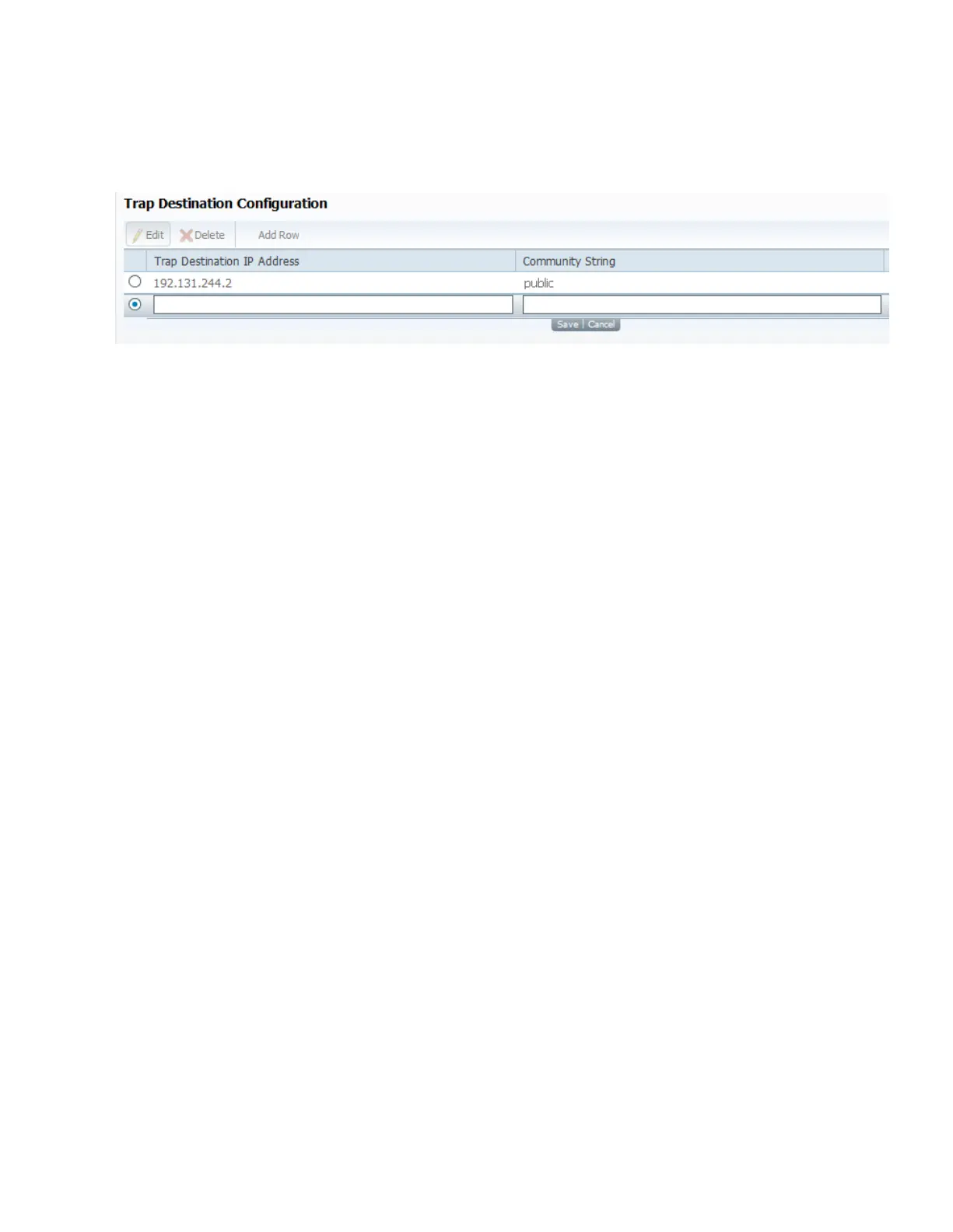

Adding a Trap Destination
1 Click Add in the Trap Destination Configuration area.
2 Type the Trap Destination IP Address that sets the destination for SNMP trap
messages for system events (for example, alarms).
3 Type the Community String for the trap destination (IP Address entered above).
4 Enter public or custom string. The default is public. You can enter a string up to
35 characters.
5 Click Save.
To edit/delete an existing trap destination, select the trap destination entry by
clicking on the radio button. Make the necessary changes, or click Delete to remove
the address from the Trap Destination Configuration list.
