Configuring VLANs
Configuration Examples for Configuring VLANs
 The Catalyst 6500 series Switch C and Switch J are secondary VMPS servers.
 End stations are connected to the clients, Switch B and Switch I.
 The database configuration file is stored on the TFTP server with the IP address 172.20.22.7.

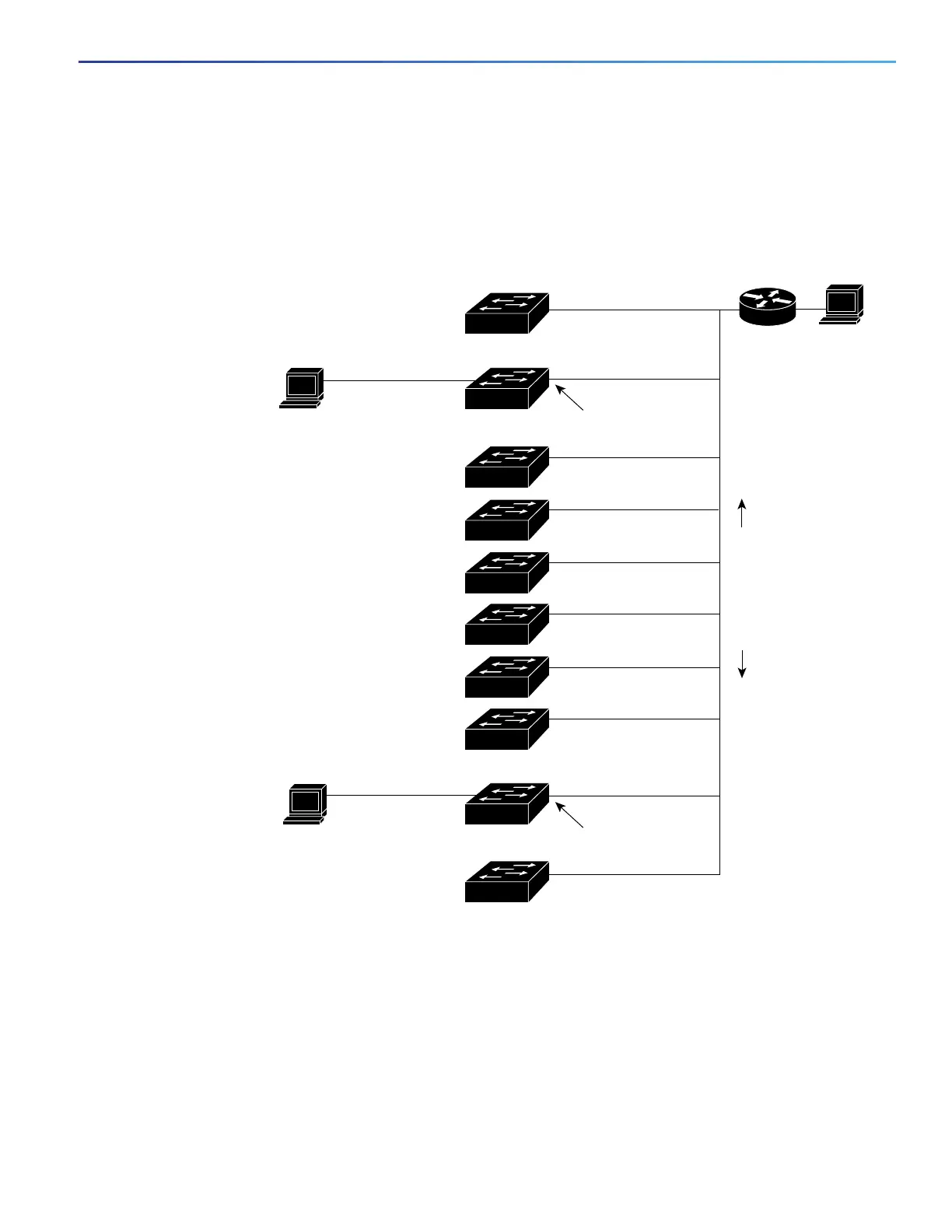

Figure 32 Dynamic Port VLAN Membership Configuration
Configuring a VLAN: Example
This example shows how to create Ethernet VLAN 20, name it test20, and add it to the VLAN database:
Switch# configure terminal
Switch(config)# vlan 20
Switch(config-vlan)# name test20
Switch(config-vlan)# end
Primary VMPS
Server 1
Catalyst 6500 series
Secondary VMPS
Server 2
Catalyst 6500 series
Secondary VMPS
Server 3
172.20.26.150
172.20.26.151
Catalyst 6500 series switch A
172.20.26.152
Switch C
Ethernet segment
(Trunk link)
172.20.26.153
172.20.26.154
172.20.26.155
172.20.26.156
172.20.26.157
172.20.26.158
172.20.26.159
Client switch I
Client switch B
End
station 2
End
station 1
TFTP server
Dynamic-access port
Dynamic-access port
Switch J
Switch D
Switch E
Switch F
Switch G
Switch H
172.20.22.7
101363t
Trunk port
Trunk port
Router

Cisco IE 4000 Specifications

General

Product Type	Switch
Form Factor	DIN Rail Mountable
MAC Address Table Size	8000
Jumbo Frame Support	9216 bytes
Operating Temperature	-40°C to 70°C
Mean Time Between Failures (MTBF)	Over 500, 000 hours
Memory	256 MB DRAM
Mounting	DIN Rail, Wall
Certifications	EN 50121-4
Ports	8 x 10/100Base-TX Ethernet Ports
