Cisco Industrial Ethernet 4000 Series Switch Software Configuration Guide
Chapter Configuring HSRP and VRRP
Configuring HSRP

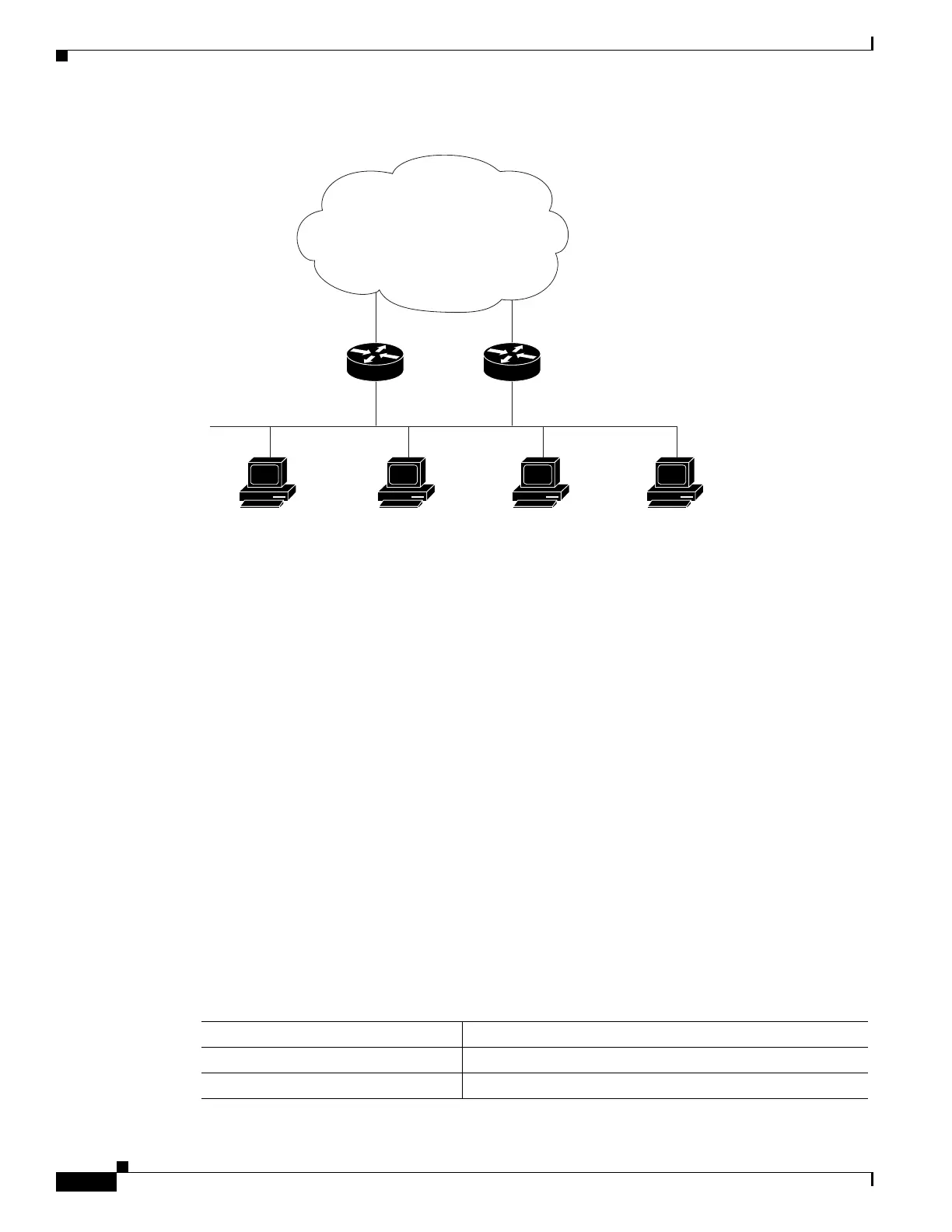

Figure 47-95 MHSRP Load Sharing
Configuring HSRP
These sections contain this configuration information:
• Default HSRP Configuration, page -770
• HSRP Configuration Guidelines, page -771
• Enabling HSRP, page -772
• Configuring HSRP Priority, page -773
• Configuring MHSRP, page -775
• Configuring HSRP Authentication and Timers, page -776
• Enabling HSRP Support for ICMP Redirect Messages, page -777
• Configuring HSRP Groups and Clustering, page -777
• Troubleshooting HSRP, page -777
Default HSRP Configuration
Table 47-62 shows the default HSRP configuration.
121235
Active router for group 1
Standby router for group 2
Client 1
Router A Router B
10.0.0.1 10.0.0.2
Active router for group 2
Standby router for group 1
Client 2 Client 3 Client 4
Table 47-62 Default HSRP Configuration
Feature Default Setting
HSRP version Version 1
HSRP groups None configured

Cisco IE 4000 Specifications

General

Product Type	Switch
Form Factor	DIN Rail Mountable
MAC Address Table Size	8000
Jumbo Frame Support	9216 bytes
Operating Temperature	-40°C to 70°C
Mean Time Between Failures (MTBF)	Over 500, 000 hours
Memory	256 MB DRAM
Mounting	DIN Rail, Wall
Certifications	EN 50121-4
Ports	8 x 10/100Base-TX Ethernet Ports
