Configuring Switch Clusters
How to Plan for Switch Clustering

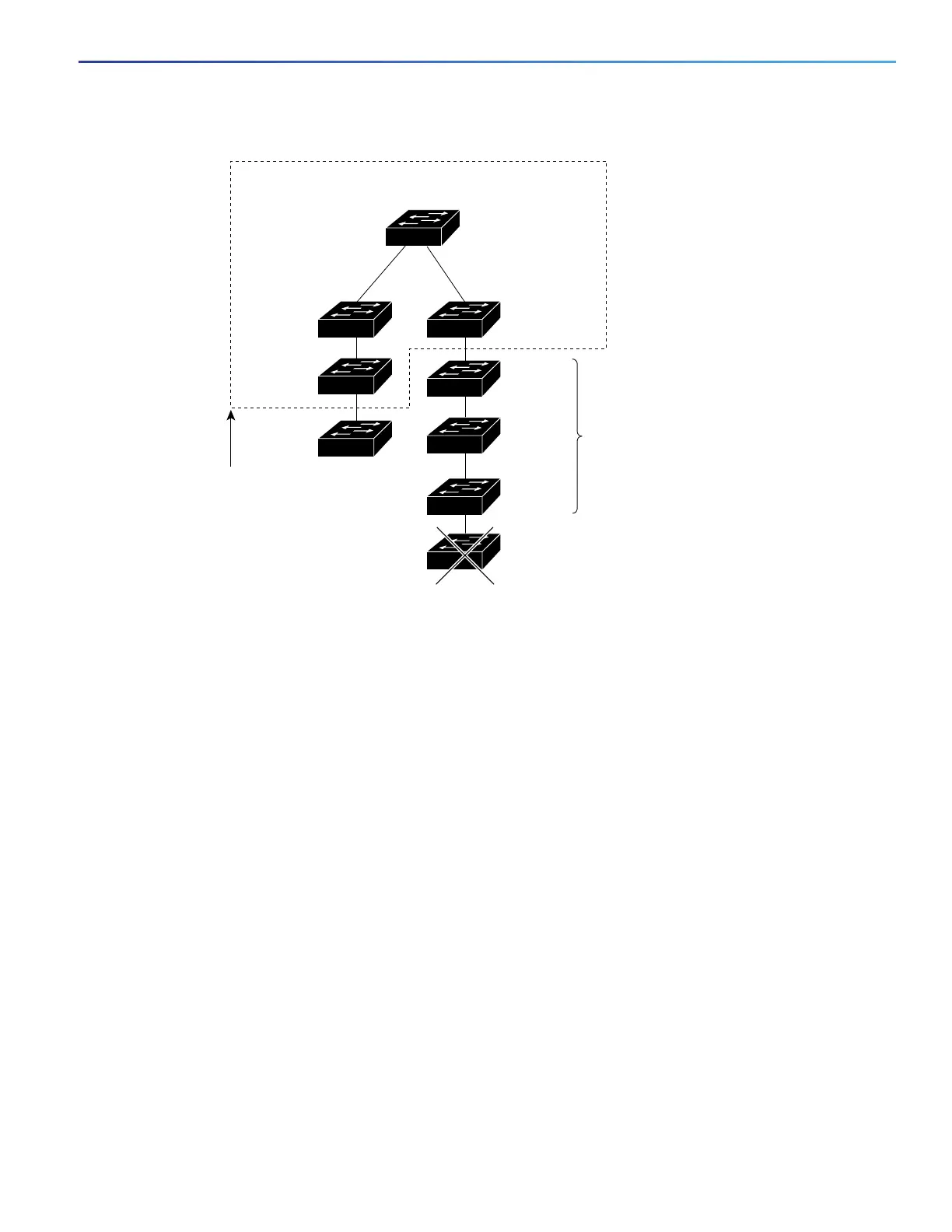

Figure 7 Discovery Through CDP Hops
Discovery Through Non-CDP-Capable and Noncluster-Capable Devices
If a cluster command switch is connected to a non-CDP-capable third-party hub (such as a non-Cisco hub), it can
discover cluster-enabled devices connected to that third-party hub. However, if the cluster command switch is
connected to a noncluster-capable Cisco device, it cannot discover a cluster-enabled device connected beyond the
noncluster-capable Cisco device.
Figure 8 on page 96 shows that the cluster command switch discovers the switch that is connected to a third-party hub.
However, the cluster command switch does not discover the switch that is connected to a Catalyst 5000 switch.
Command device
Member
device 10
Member
device 8
Member
device 9
VLAN 62
Edge of
cluster
VLAN 16
101321
Device 11
candidate
device
Candidate
devices
Device 12
Device 13
Device 14
Device 15

Cisco IE 4000 Specifications

General

Product Type	Switch
Form Factor	DIN Rail Mountable
MAC Address Table Size	8000
Jumbo Frame Support	9216 bytes
Operating Temperature	-40°C to 70°C
Mean Time Between Failures (MTBF)	Over 500, 000 hours
Memory	256 MB DRAM
Mounting	DIN Rail, Wall
Certifications	EN 50121-4
Ports	8 x 10/100Base-TX Ethernet Ports
