Cisco SA500 Series Security Appl
iances Administration Guide
14
1
Wa
ll Mounting

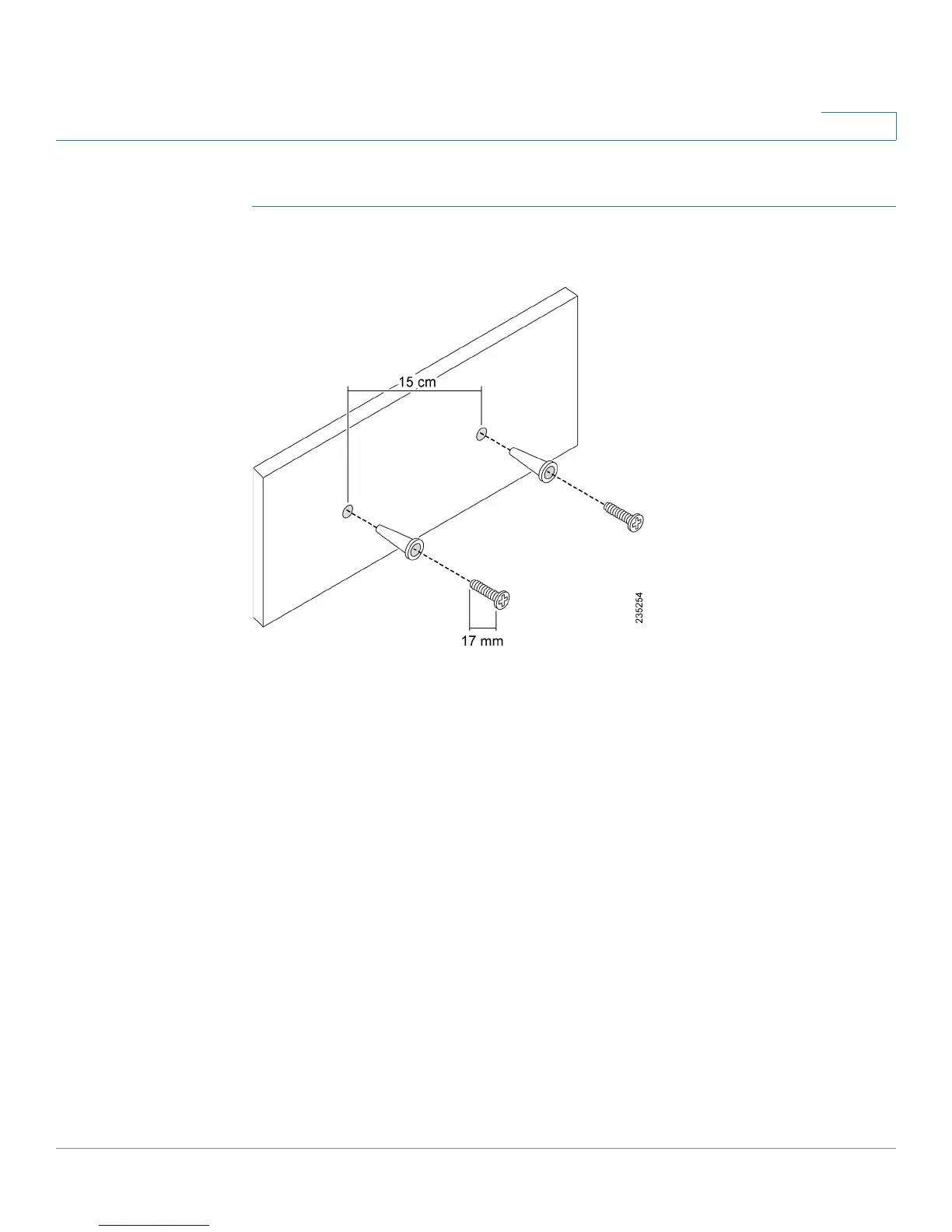

STEP
1
Inser
t two 17 mm screws, with anchors
, int
o the wall 15 cm apar
t (about 5.9
inches). Lea
ve 3-4 mm (about 1
/8 inch) of the head e
xp
ose
d.
13
15
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1: Getting Started
10
Feature Overview
10
Device Overview
11
Front Panel
11
Rear Panel
12
Installation
13
Installation Options
13
Hardware Installation
16
Getting Started with the Configuration Utility
17
Connecting to the Configuration Utility
18
Using the Getting Started Pages
19
Navigating through the Configuration Utility
21
Using the Help System
22
About the Default Settings
22
Basic Tasks
23
Changing the Default User Name and Password
23
Backing up Your Configuration
24
Upgrading the Firmware
24
Common Configuration Scenarios
25
Basic Network Configuration with Internet Access
26
Cisco Smart Business Communications System Configuration
28
Firewall for Controlling Inbound and Outbound Traffic
29
DMZ for Public Websites and Services
29
Configuring Protectlink Web & Email Security
31
Site-To-Site Networking and Remote Access
31
Wireless Networking
35
Chapter 2: Networking
36
Configuring the WAN Connection
37
Viewing the WAN Status
39
Creating Pppoe Profiles
40
Configuring an IP Alias
41
Configuring the LAN
43
About the Default LAN Settings
43
Configuring the LAN
44
Viewing the LAN Status
46
VLAN Configuration
46
DHCP Reserved Ips
52
DHCP Leased Clients
53
Configuring an IGMP Proxy
53
Configuring the Optional Port as a LAN Port
53
Configuring the Optional WAN
54
Configuring Auto-Rollover, Load Balancing, and Failure Detection
57
Configuring the Protocol Bindings for Load Balancing
60
Configuring a DMZ
61
Configuring the DMZ Settings
64
DMZ Reserved Ips
66
DMZ DHCP Leased Clients
67
Routing
67
Static Routing
68
Dynamic Routing
69
Port Management
70
Configuring the Ports
70
Configuring SPAN (Port Mirroring)
71
Qos Bandwidth Profiles
72
Creating Qos Bandwidth Profiles for WAN Interfaces
72
Traffic Selectors
73
LAN Qos
74
Enabling LAN Qos
74
Port Cos Mapping
75
Port DSCP Mapping
75
DSCP Remarking
75
Dynamic DNS
76
Configuring Ipv6 Addressing
77
IP Routing Mode
78
Configuring the Ipv6 WAN Connection
78
Configuring the Ipv6 LAN
80
Ipv6 LAN Address Pools
82
Ipv6 Multi LAN
83
Ipv6 Static Routing
83
Routing (Ripng)
84
6To4 Tunneling
85
Ipv6 Tunnels Status
85
ISATAP Tunnels
86
MLD Tunnels
87
Router Advertisement Daemon (RADVD)
88
Configuring Router Advertisement
88
Adding RADVD Prefixes
89
Chapter 3: Wireless Configuration for the SA520W
91
Configuring an Access Point
91
Step 1: Configuring the Wireless Profiles
92
Profile Advanced Configuration
95
Configuring the Qos Settings for a Wireless Profile
95
Controlling Wireless Access Based on MAC Addresses
96
Step 2: Configuring the Access Points
98
Configuring the Radio
99
Basic Radio Configuration
99
Advanced Radio Configuration
101
Chapter 4: Firewall Configuration
103
Configuring Firewall Rules to Control Inbound and Outbound Traffic
103
Preliminary Tasks for Firewall Rules
104
Configuring the Default Outbound Policy
107
Configuring a Firewall Rule for Outbound Traffic
107
Configuring a Firewall Rule for Inbound Traffic
110
Prioritizing Firewall Rules
113
Firewall Rule Configuration Examples
114
Using Other Tools to Prevent Attacks, Restrict Access, and Control Inbound Traffic
117
Configuring Attack Checks
118
Configuring MAC Filtering to Allow or Block Traffic
119
Configuring IP/MAC Binding
120
Port Triggering
121
Configuring a Port Triggering Rule to Direct Traffic to Specified Ports
122
Viewing the Port Triggering Status
122
Configuring Session Settings to Analyze Incoming Packets
123
Using Other Tools to Control Access to the Internet
124
Configuring Content Filtering to Allow or Block Web Components
124
Configuring Approved Urls to Allow Access to Websites
126
Configuring Blocked Urls to Prevent Access to Websites
127
Configuring IP/MAC Binding to Prevent Spoofing
128
Sip
129
Chapter 5: Intrusion Prevention System
130
Configuring IPS
131
Configuring the IPS Policy
132
Configuring the Protocol Inspection Settings
133
Configuring Peer-To-Peer Blocking and Instant Messaging
134
Chapter 6: Using Cisco Protectlink Security Services
135
Chapter 7: Configuring VPN
136
About VPN
136
Configuring a Site-To-Site VPN Tunnel
137
Configuring an Ipsec VPN Tunnel for Remote Access with a VPN Client
139
Configuring the User Database for the Ipsec Remote Access VPN
142
Advanced Configuration of Ipsec VPN
144
Viewing the Basic Setting Defaults for Ipsec VPN
144
Configuring the IKE Policies for Ipsec VPN
144
Configuring the Ipsec VPN Policies
148
Configuring SSL VPN for Browser-Based Remote Access
154
Access Options for SSL VPN
155
Security Tips for SSL VPN
155
Elements of the SSL VPN
156
Scenario Step 1: Customizing the Portal Layout
157
Scenario Step 2: Adding the SSL VPN Users
159
Creating the SSL VPN Policies
160
Specifying the Network Resources for SSL VPN
163
Configuring SSL VPN Port Forwarding
163
SSL VPN Tunnel Client Configuration
165
Viewing the SSL VPN Client Portal
168
Verisign™ Identity Protection Configuration
169
Configuring Verisign Identity Protection
169
Managing User Credentials for Verisign Service
170
Chapter 8: Administration
171
Users
171
Domains
172
Groups
173
Adding or Editing User Settings
173
Adding or Editing User Login Policies
175
Firmware and Configuration
176
Upgrading Firmware and Working with Configuration Files
176
Maintaining the USB Device
178
Using the Secondary Firmware
180
Diagnostics
180
Measuring and Limiting Traffic with the Traffic Meter
182
Configuring the Time Settings
184
Configuring the Logging Options
185
Local Logging Config
185
Ipv6 Logging
187
Remote Logging
188
Logs Facility and Severity
189
Managing Certificates for Authentication
190
Configuring RADIUS Server Records
193
License Management
194
Chapter 9: Network Management
197
RMON (Remote Management)
197
Cdp
199
Snmp
199
Configuring SNMP
200
Configuring SNMP System Info
200
Upnp
201
Bonjour
202
Configuring Bonjour
202
Associating Vlans
202
Chapter 10: Status
204
Device Status
204
Device Status
205
Resource Utilization
207
Interface Statistics
207
Port Statistics
208
Wireless Statistics for the SA520W
208
VPN Status
210
Ipsec VPN Status
210
SSL VPN Status
211
Quick VPN Status
212
Active Users
213
View Logs
213
View All Logs
213
Ipsec VPN Logs
215
Protectlink Logs
215
CDP Neighbor
215
LAN Devices
216
Reports
216
Appendix A: Troubleshooting
217
Internet Connection
217
Date and Time
220
Pinging to Test LAN Connectivity
221
Restoring Factory Default Configuration Settings
223
Appendix B: Standard Services
224
Appendix C: Technical Specifications and Environmental Requirements
227
Appendix D: Factory Default Settings
229
General Settings
229
Router Settings
231
Wireless Settings
234
Storage
237
Security Settings
238
Appendix E: Where to Go from here
240
Product Resources
240
