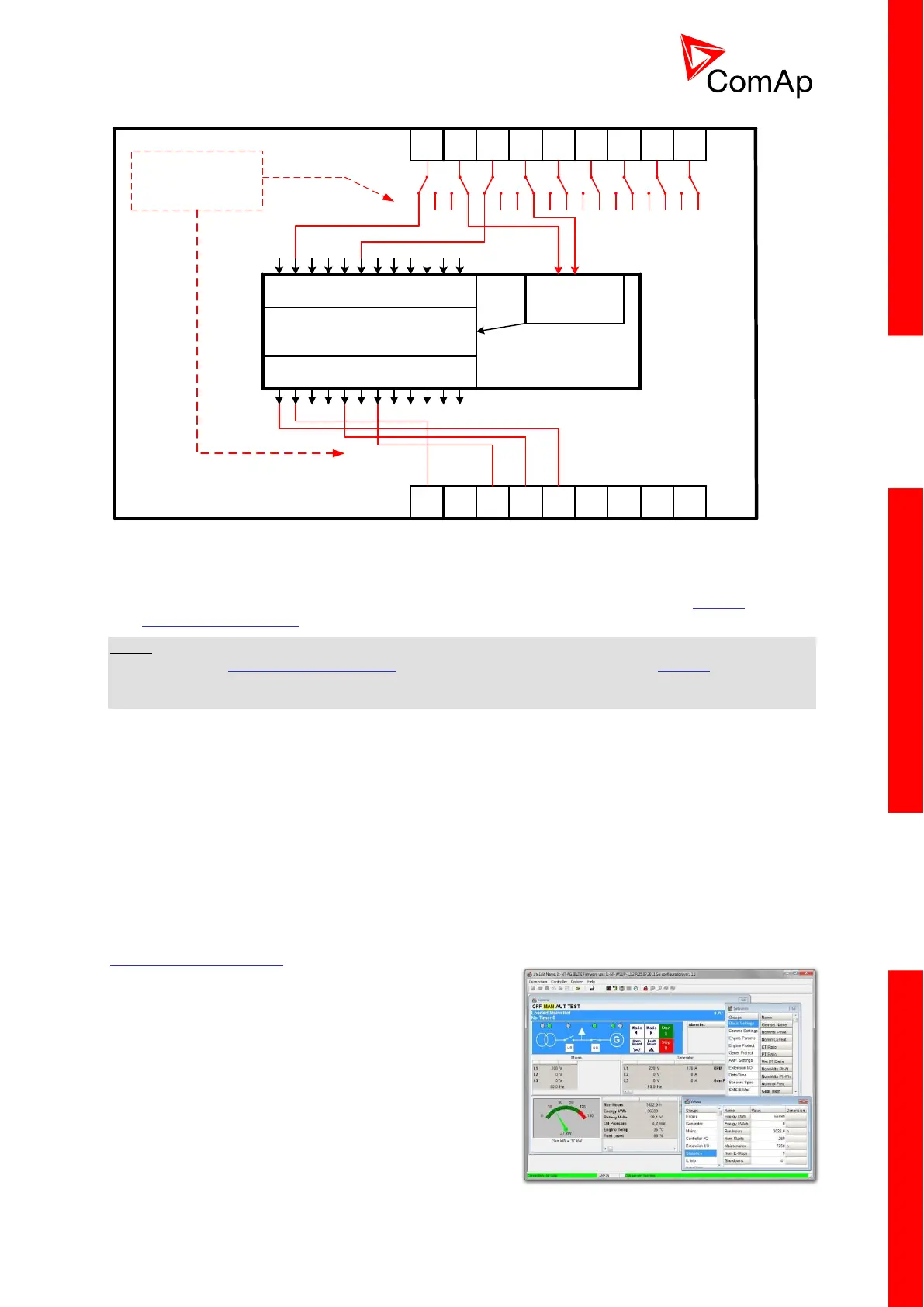

PRINCIPLE OF BINARY INPUTS AND OUTPUTS CONFIGURATION
The controller is shipped with a default configuration, which should be suitable for most standard
applications. This default configuration can be changed only by using a PC with the LiteEdit software.
See LiteEdit documentation for details.
NOTE:
You need one of communication modules to connect the controller to a PC with LiteEdit. There is a
special easy removable service module for cases when no communication module is permanently
attached.
Once the configuration is modified, it can be saved to a file for later usage with another controller or for
backup purposes. The file is called archive and has the file extension .aic. An archive contains a full
image of the controller at the time of saving (if the controller is online for the PC) except the firmware.
Besides configuration it also contains current adjustment of all setpoints, all measured values, a copy
of the history log and a copy of the alarm list.
The archive can be simply used for cloning controllers, i.e. preparing controllers with identical
configuration and settings.
2.2.1 LiteEdit
Configuration and monitoring tool for InteliCompact
NT
, InteliLite
NT
and other controllers. See more in
LiteEdit Reference Guide.
This tool provides the following functions:
- Direct, modem or internet communication with
the controller
- Offline or online controller configuration
- Controller firmware upgrade
- Reading/writing/adjustment of setpoints
- Reading of measured values
- Browsing of controller history records
- Exporting data into a XLS file
- Controller language translation
