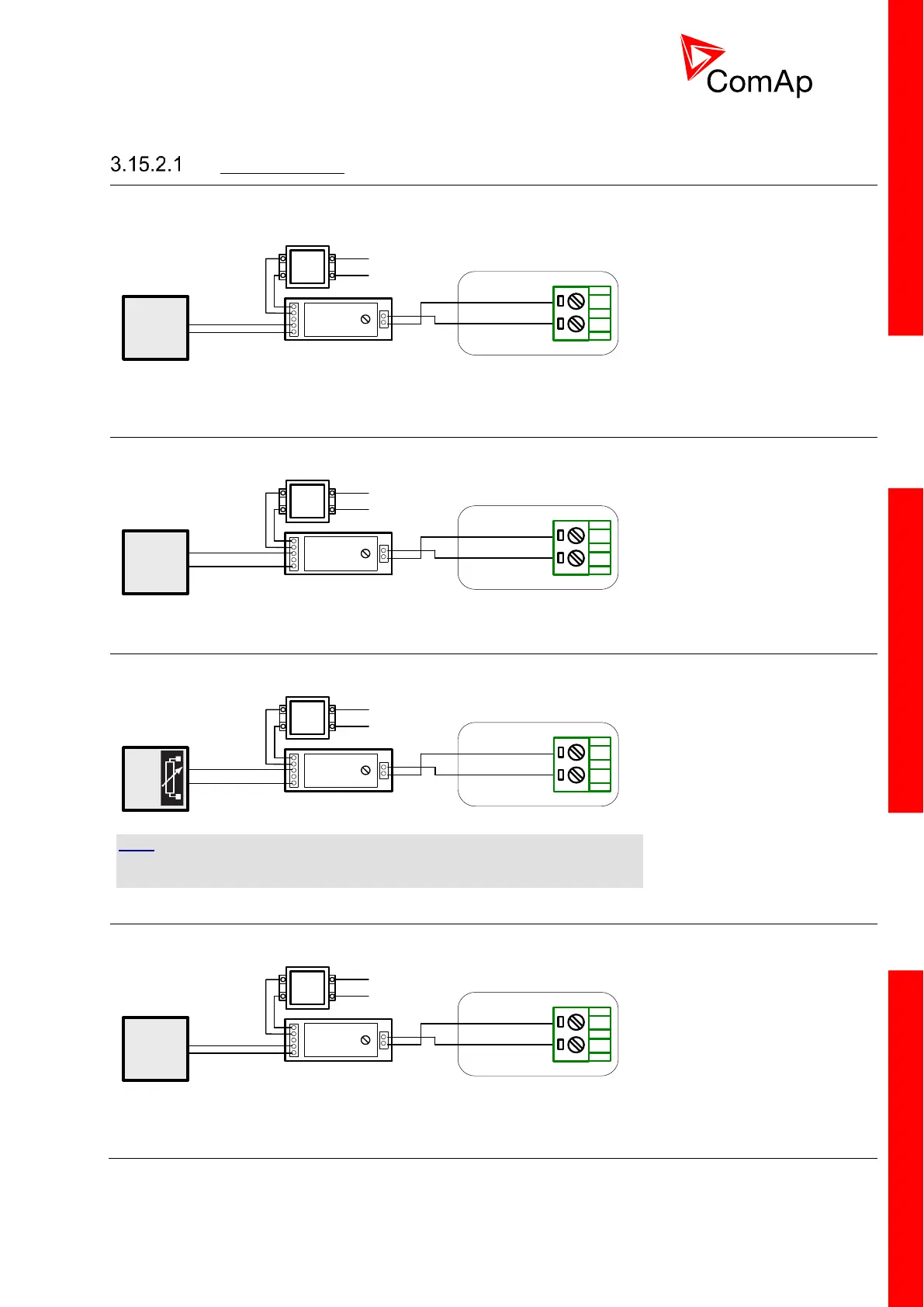

3.15.2 AVR list
LeRoy-Somer
LeRoy-Somer: R 438 LS, R448
Kutai EA448
18VAC
From
generator
OUT1
OCOM
iG-
AVRi
230/400VAC
0VAC
AVRI
AO GND
ST4
AO GND
AVRI
IG-
AVRi
TRANS
AVRi output is connected instead of Remote voltage trimmer 470 Ω to
terminals ST4. Module R726 is not required.
AVRi trim to minimum counter
clockwise.
Volt/PF ctrl:
AVR Bias = 50%
LeRoy-Somer: R 449
18VAC
From
generator
OUT1
OUT2
iG-
AVRi
230/400VAC
0VAC
AVRI
AO GND
ST4
3
2
AVRI
AO GND
IG-
AVRi
TRANS
Module R726 is not required.
AVRi trim to minimum counter
clockwise.
Volt/PF ctrl:
AVR Bias = 50%
LeRoy-Somer: R 450
18VAC
From
generator
OUT1
OUT2
iG-
AVRi
230/400VAC
0VAC
AVRI
AO GND
AVRI
AO GND
IG-
AVRi
TRANS
HINT:
Use AVRi instead of potentiometer 1kΩ.
Read LeRoy-Somer R450 manual before use.
AVRi trim to minimum counter
clockwise.
Volt/PF ctrl:
AVR Bias = 50%
LeRoy-Somer: R 129
18VAC
From
generator
OUT1
OCOM
iG-
AVRi
230/400VAC
0VAC
AVRI
AO GND
J2
AVRI
AO GND
IG-
AVRi
TRANS
AVRi output is connected instead of Remote voltage trimmer 470 Ω to
terminal J2. Module R726 is not required.
AVRi trim to minimum counter
clockwise.
Volt/PF ctrl:
AVR Bias = 50%
