ComAp InteliCompact NT Reference Guide

InteliCompact
NT
, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp – May 2015
53
3.19 Extension modules
Extension modules are to be enabled and configured using LiteEdit. Extension modules are not
contained in the factory default configuration.

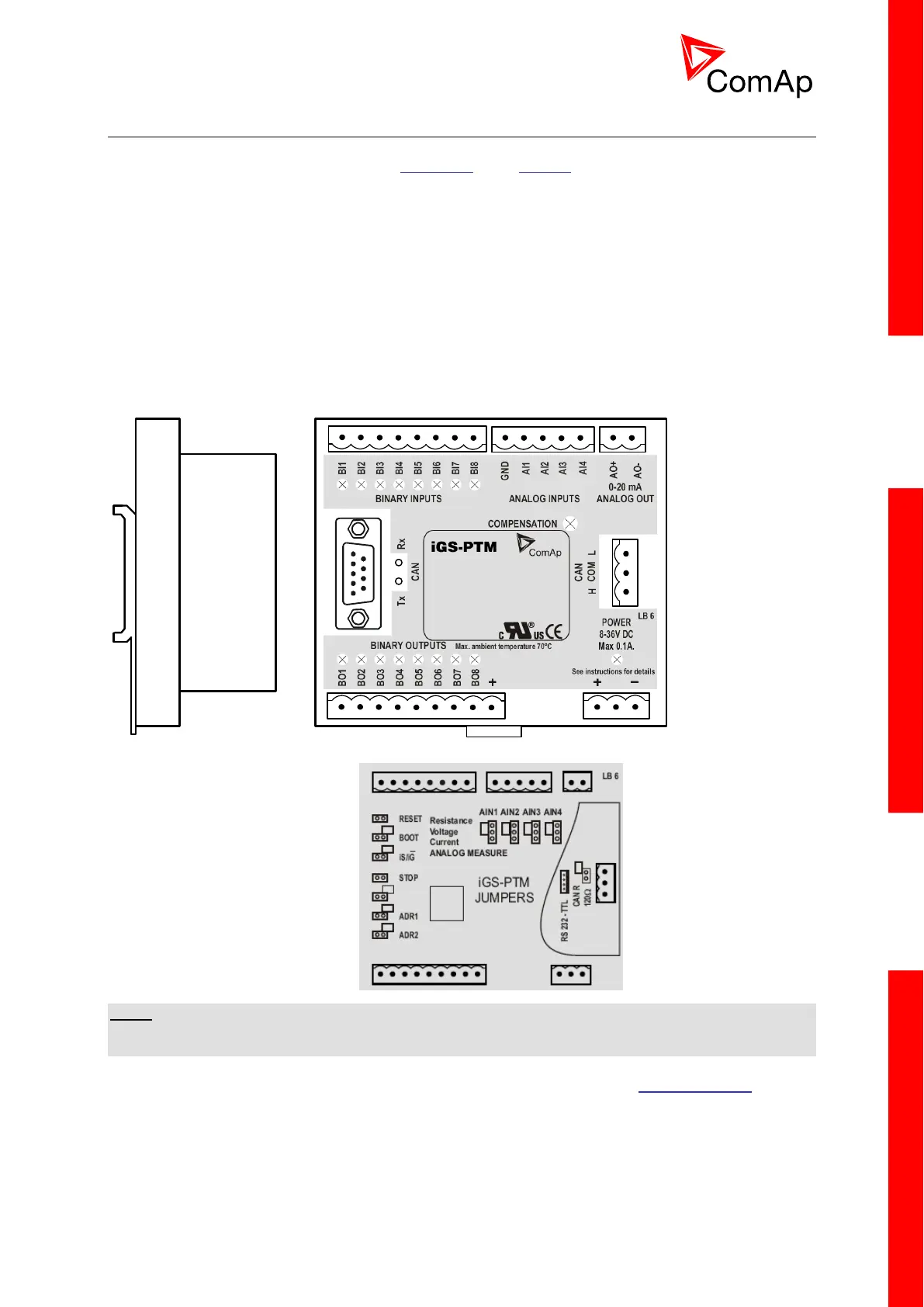

3.19.1 IGS-PTM
The IGS-PTM is a DIN Rail mounted extension module that is connected to the controller via a CAN1
bus. The module contains:
 8 binary inputs with the same properties and configuration as binary inputs of the controller.
 8 binary outputs with the same properties and configuration as binary outputs of the controller.
 4 analog inputs with selectable electrical range by a jumper: 0–250 Ω, 0–100 mV, 0–20 mA,
suitable for Pt100 and thermocouple sensors
NOTE:
The controller selection jumper (iS/iG) must be in the iG position for using the module with the
InteliCompact
NT
.
A separate manual for the IGS-PTM module is available for download on the ComAp web site
