3.24 Emergency Stop
The Emergency Stop function can be made in two ways:
 Connecting a normally closed “mushroom-type” button to the binary input Emergency Stop.
This is a purely software solution.
 A hard-wired solution, where the button also disconnects the power supply from the controller
outputs.
EMERGENCY STOP
INPUT
OUTPUTS
+ BATT
SUPPRESION DIODES ARE NOT INDICATED, BUT
REQUIRED!
- BATT

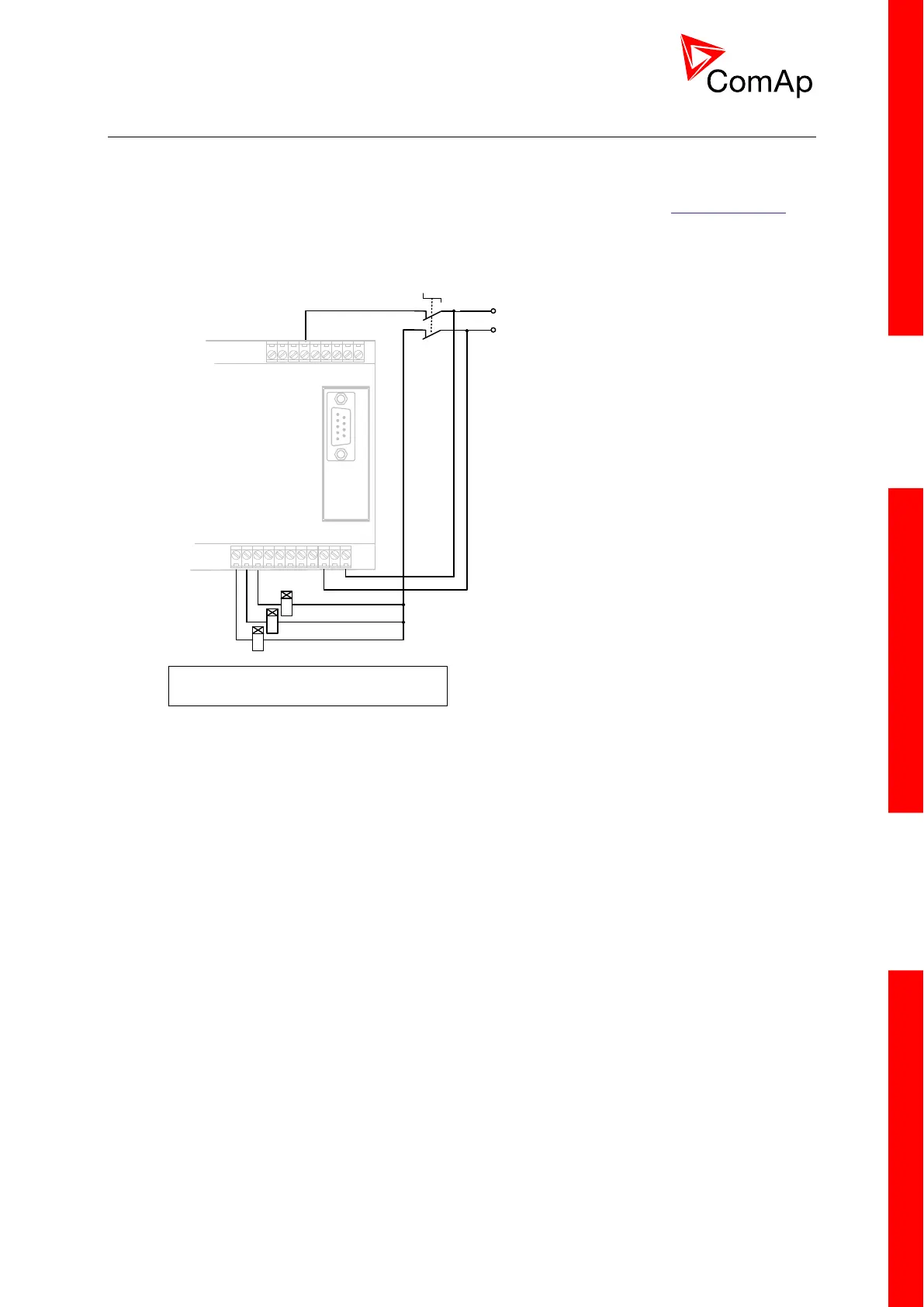

HARD-WIRED EMERGENCY STOP
