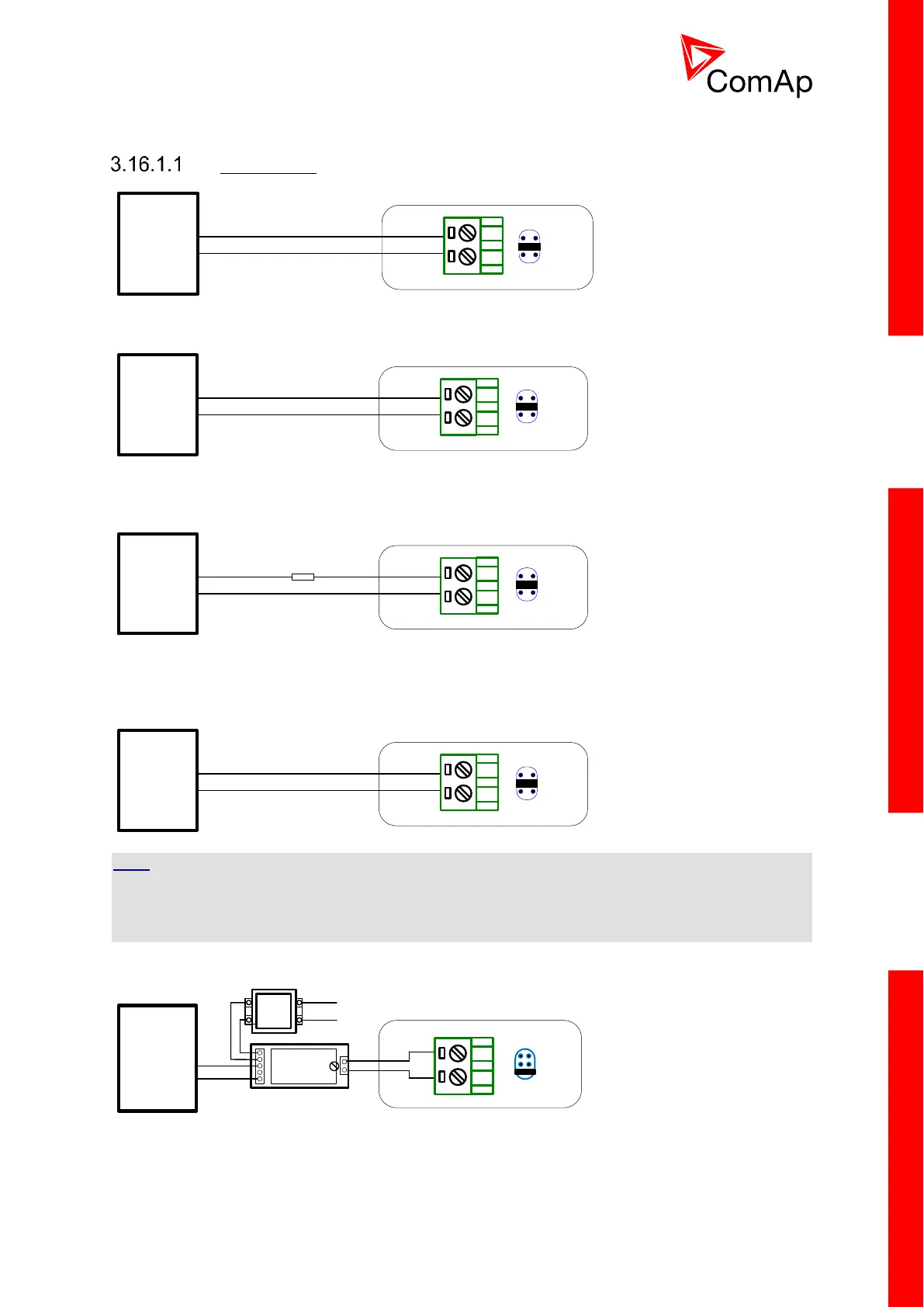

3.16.1 Speed governor list
Woodward
VoutR
16 COM
15 ±
WOODWARD
2301A
Speed Control
SG +
AO COM
Sync/Load Ctrl:
Speed Gov Bias = 5.00 V
SpeedGovChar = POSITIVE
26 -
25 +
WOODWARD
2301 LS &
Speed control
SG +
AO COM
VoutR
Sync/Load Ctrl:
Speed Gov Bias = 5.00 V
SpeedGovChar = POSITIVE
VoutR
GND:2
ILS:9
WOODWARD
DPG 2201
SG +
AO COM
470k
For Woodward DPG 2223 the ILS terminal is 10.
Sync/Load Ctrl:
Speed Gov Bias = 2.50 V
SpeedGovChar = POSITIVE
SpeedGovLowLim = 0 V
SpeedGovHiLim = 5 V
12 -
11+
WOODWARD
EPG
SG +
AO COM
VoutR
Sync/Load Ctrl:
Speed Gov Bias = 1.50 V
SpeedGovChar = POSITIVE
SpeedGovLowLim = 0 V
SpeedGovHiLim = 3 V
HINT:
For Woodward EPG speed governor (revision F) is in case of InteliCompact
NT
limit:
Speed Gov Bias = 1 V
SpeedGovLowLim = 0 V
SpeedGovHiLim = 2 V
18VAC
From
generator
AO COM
SG+
WOODWARD
EPG
Options 2
0VAC
iG-
AVRi
iG-
AVRi
TRANS
230/400VAC
OUT1
OUT2
PWM
Sync/Load Ctrl:
Speed Gov Bias = 5.00 V
SpeedGovChar = POSITIVE
