ComAp InteliCompact NT

InteliCompact
NT
, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp – May 2015
200
Setpoint: TauSpeedActuat
Group
Sync/Load Ctrl
Range [units]
1 ... 300 [s]
Related
applications
All
Description
Time constant of the speed actuator connected to the binary outputs Speed
Up/Speed Down. Setting of this parameter affects the length of the pulses
on these binary outputs. This is to match the reaction of the controller’s
regulator with the actual reaction time of the actuator.
Setpoint: Voltage Window
Group
Sync/Load Ctrl
Range [units]
0 … 100.0 [%]
Related
applications
All
Description
This setpoint adjusts maximum difference between generator and mains/bus
voltage in respective phases for synchronizing.

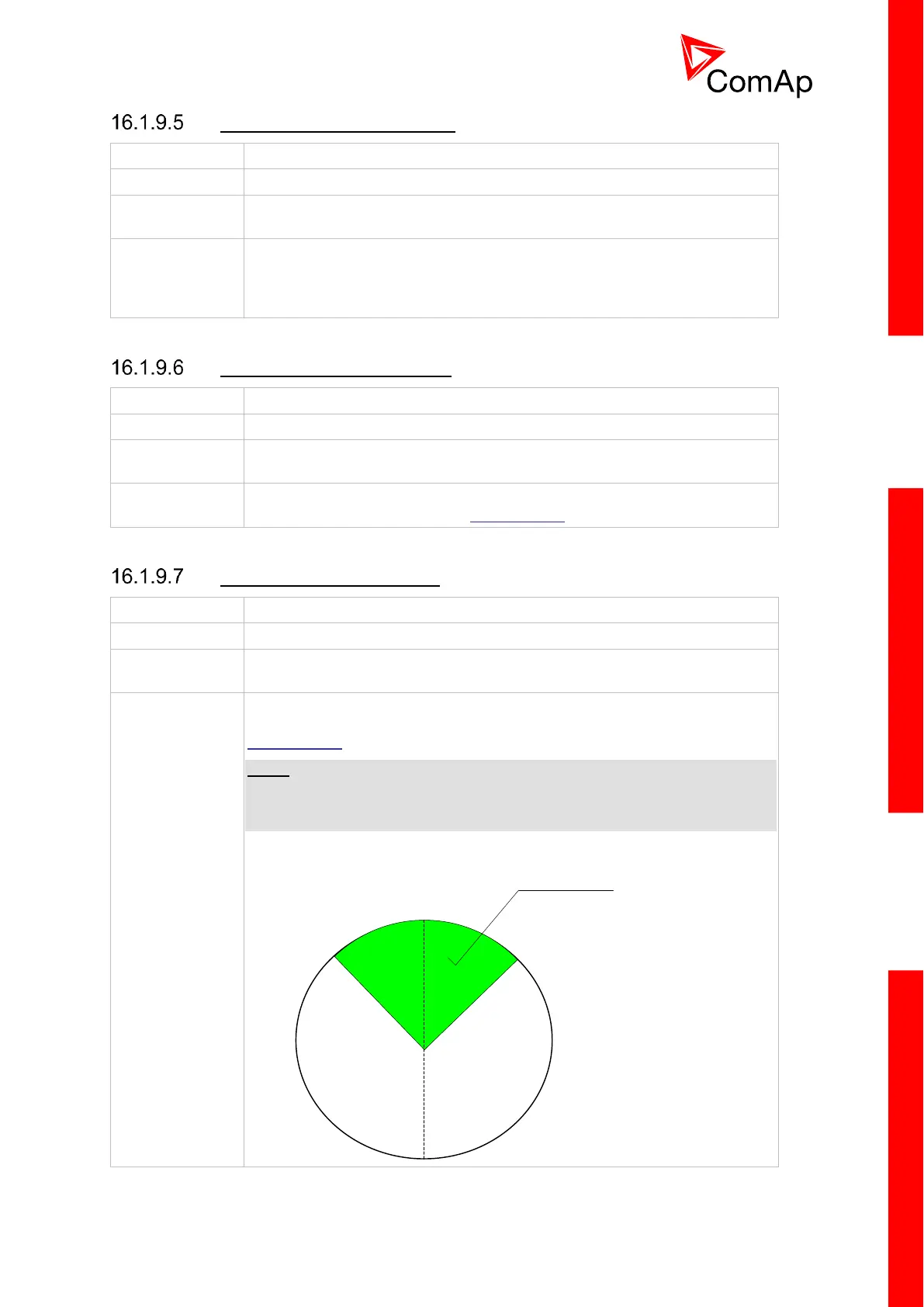

Setpoint: Phase Window
Group
Sync/Load Ctrl
Range [units]
0 ... 90 [°]
Related
applications
All
Description
This setpoint adjusts the maximum absolute value of difference between
actual phase angle between the generator and mains/bus voltages for
synchronizing.
NOTE:
To disable issuing the breaker close command (i.e. for test purpose) adjust
this setpoint to 0. Synchronizing will continue until a timeout occurs or the
breaker is closed externally.
0
X
X = PhaseWindow
-X
Allowed range of
phase angle
difference
