ComAp InteliCompact NT Reference Guide

InteliCompact
NT
, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp – May 2015
41

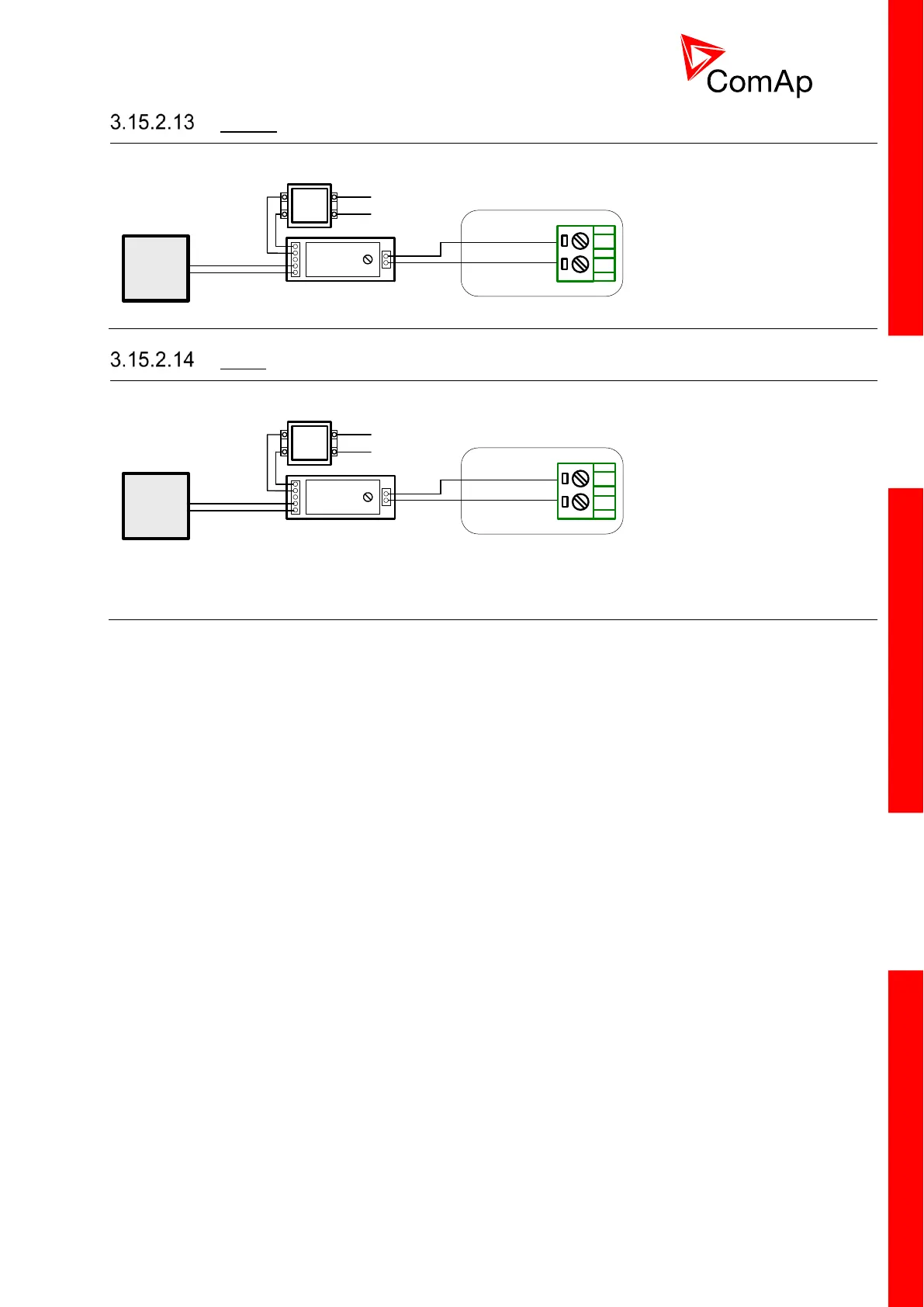

Sincro
Sincro AVR BL3 or BL4
AVRI
AO GND
18VAC
From
generator
OUT1
AVRi
230/400VAC
0VAC
AVRI
AO GND
IG- AVRi
TRANS
IG-
COM
POT
EXT
AVRi trim to middle position
Volt/PF ctrl:
AVR Bias = 20%
Kutai
Kutai EA448
AVRI
AO GND
18VAC
From
generator
OUT1
AVRi
230/400VAC
0VAC
AVRI
AO GND
IG- AVRi
TRANS
IG-
COM
ST4
AVRi output is connected instead of Remote voltage trimmer 470Ω to
terminals ST4. Module R726 is not required.
AVRi trim to minimum counter
clockwise.
Volt/PF ctrl:
AVR Bias = 50%
