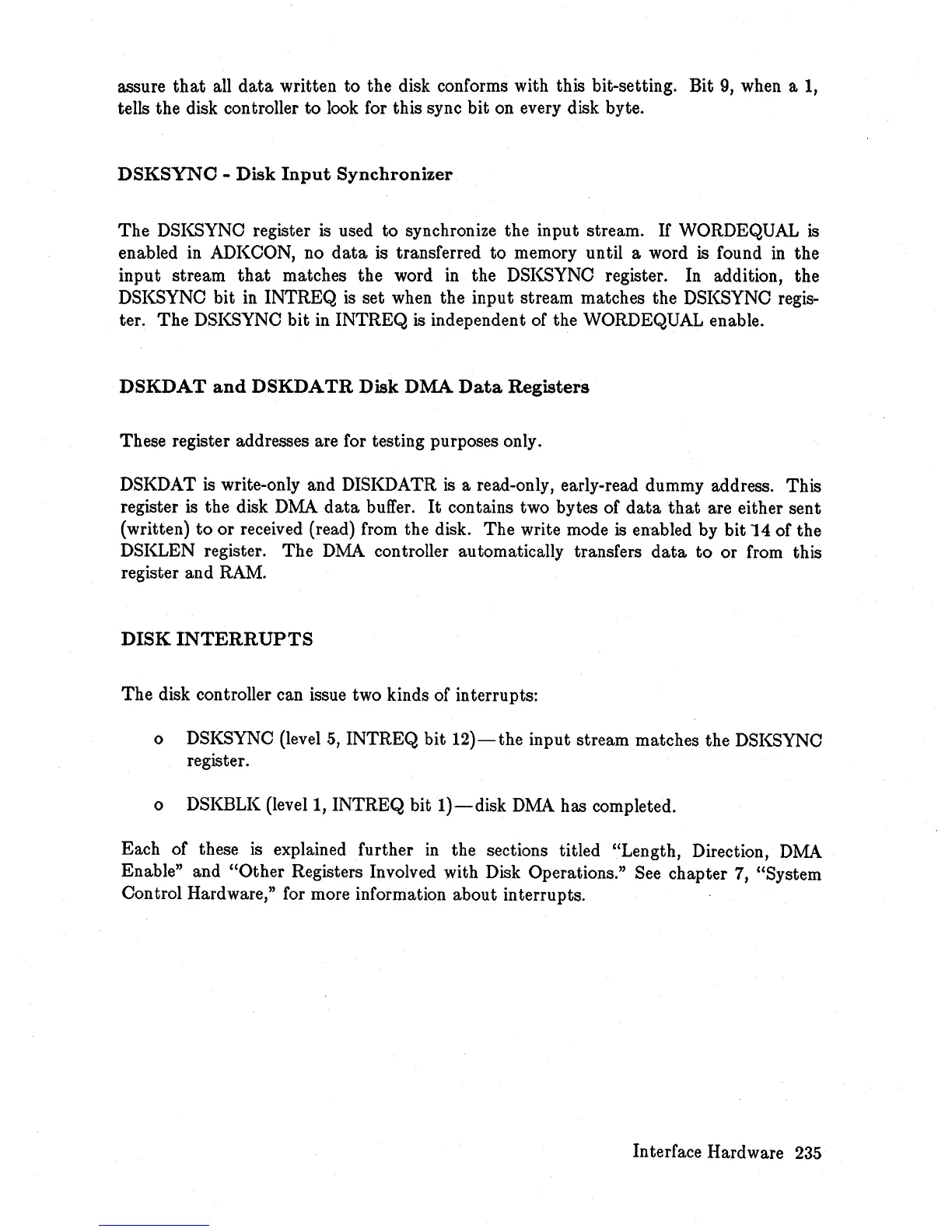

assure
that
all
data
written to the disk conforms with this bit-setting. Bit
9,
when a
I,
tells the disk controller
to
look for this sync bit on every disk byte.
DSKSYNC
- Disk
Input
Synchronizer
The DSKSYNC register
is
used
to
synchronize the input stream.
If
WORDEQUAL
is
enabled in ADKCON, no
data
is transferred to memory until a word
is
found
in
the
input stream
that
matches the word
in
the DSKSYNC register. In addition, the
DSKSYNC bit in INTREQ
is
set when the input stream matches the DSKSYNC regis-
ter. The DSKSYNC bit
in
INTREQ
is
independent of the WORD EQUAL enable.
DSKDAT
and
DSKDATR
Disk
DMA
Data
Registers
These register addresses are for testing purposes only.
DSKDAT is write-only and DISKDATR
is
a read-only, early-read dummy address. This
register is the disk DMA
data
buffer.
It
contains two bytes of
data
that
are either sent
(written)
to
or received (read) from the disk. The write mode
is
enabled by bit
]4
of the
DSKLEN register. The
DMA
controller automatically transfers
data
to
or from this
register and RAM.
DISK
INTERRUPTS
The
disk controller can issue two kinds of interrupts:
o DSKSYNC (level
5,
INTREQ bit
l2)-the
input stream matches the DSKSYNC
register.
o DSKBLK
(levell,
INTREQ bit
1)-disk
DMA
has completed.
Each of these
is
explained further
in
the sections titled "Length, Direction,
DMA
Enable" and
"Other
Registers Involved with Disk Operations." See chapter 7, "System
Control Hardware," for more information about interrupts.
