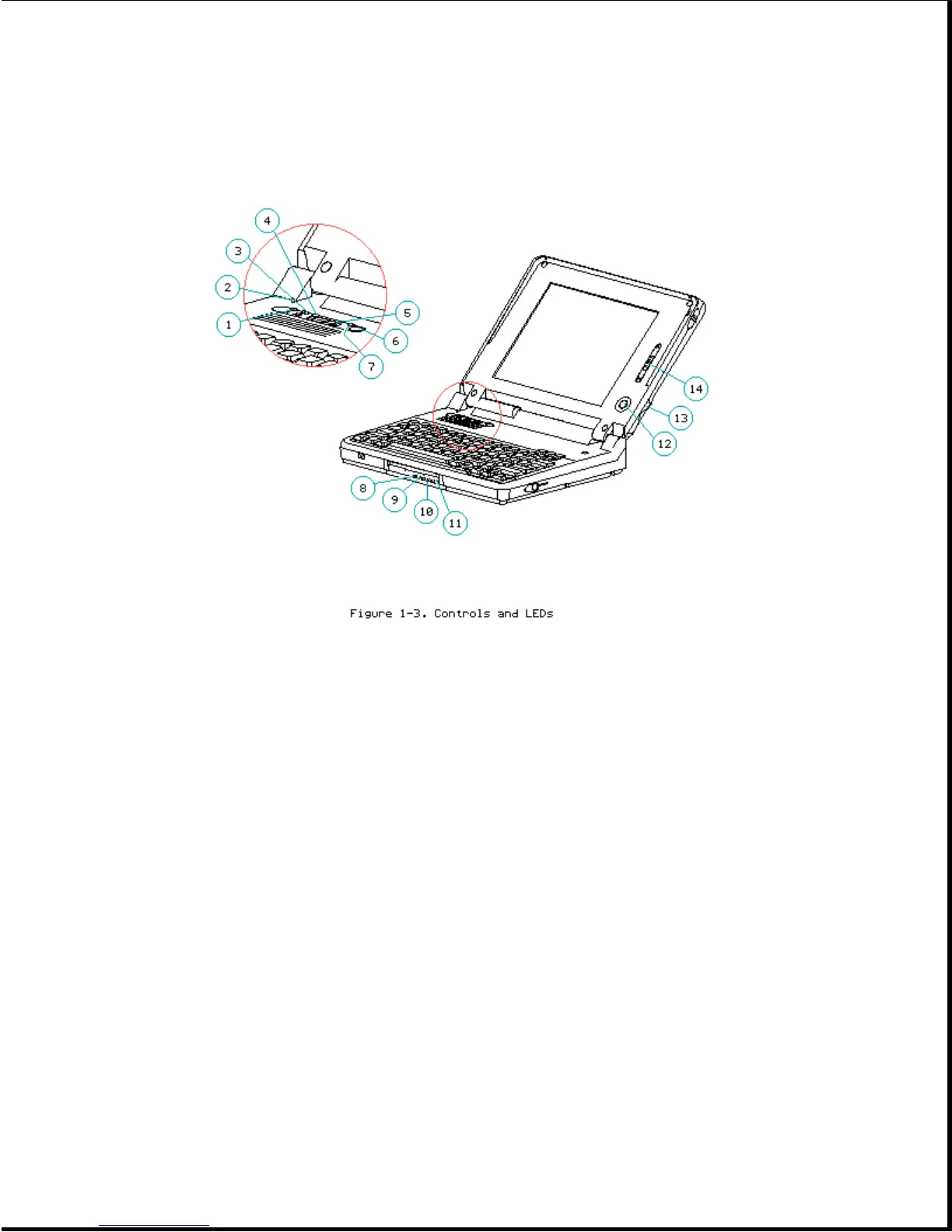

1. Caps lock LED
2. Display switch
3. Scroll lock LED
4. Num lock LED
5. Power switch
6. Standby button
7. Power/standby LED
8. Hard drive LED
9. Diskette drive LED
10. Power/standby LED
11. Battery LED
12. Trackball
13. Trackball buttons
14. Display control slide(s)
LEDs
Table 1-2 lists the function of the LEDs.
Table 1-2. LEDs
===========================================================================
LED Name Status Indication Location Color
===========================================================================
