Compaq LTE Elite - External Monitor Connector Pin Assignments

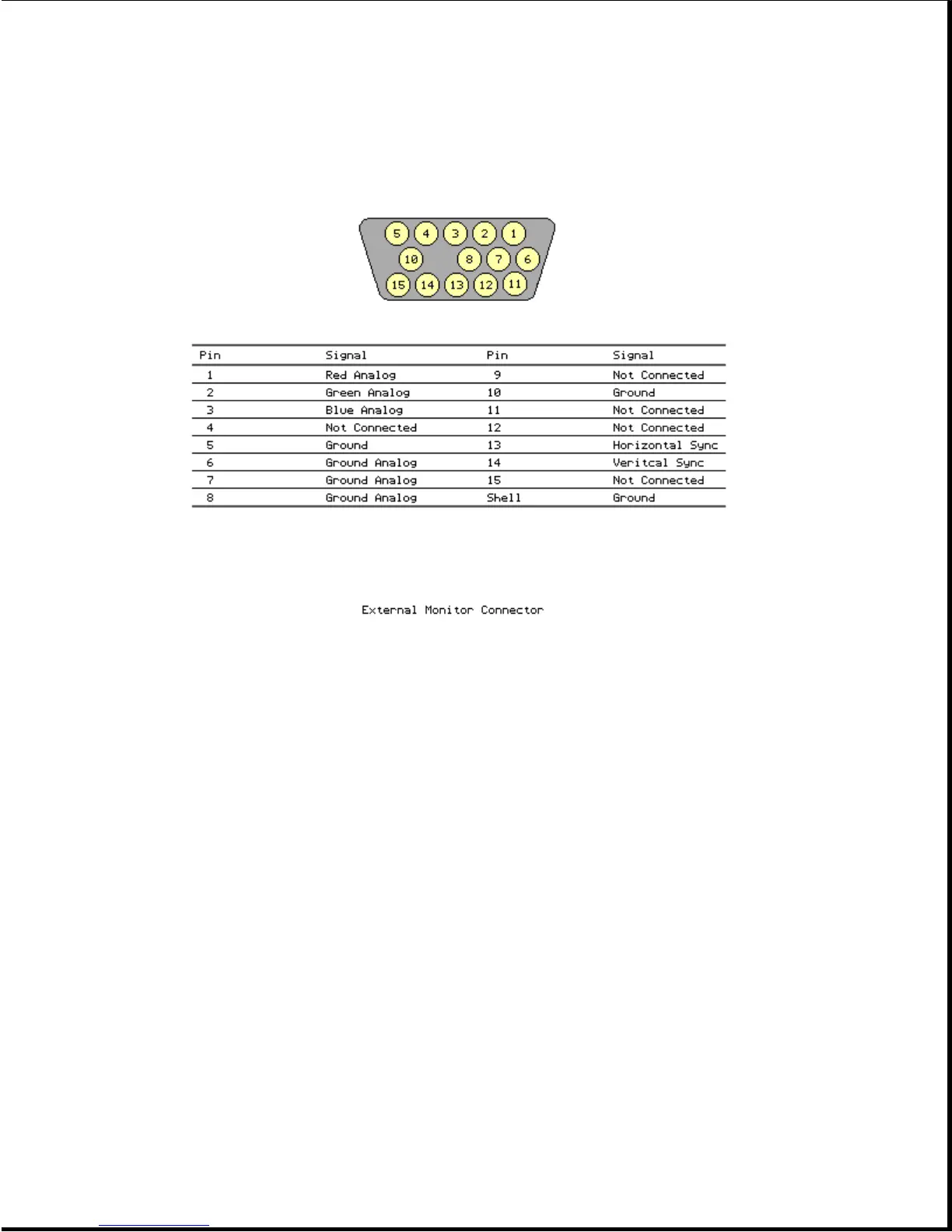

Table A-3. External Monitor Connector
===========================================================================
Pin Signal Pin Signal
===========================================================================
1 Red Analog 9 Not connected
2 Green Analog 10 Ground
3 Blue Analog 11 Not connected
4 Not connected 12 Not connected
5 Ground 13 Horizontal Sync
6 Ground Analog 14 Vertical Sync
7 Ground Analog 15 Not connected
8 Ground Analog Shell Ground
===========================================================================
