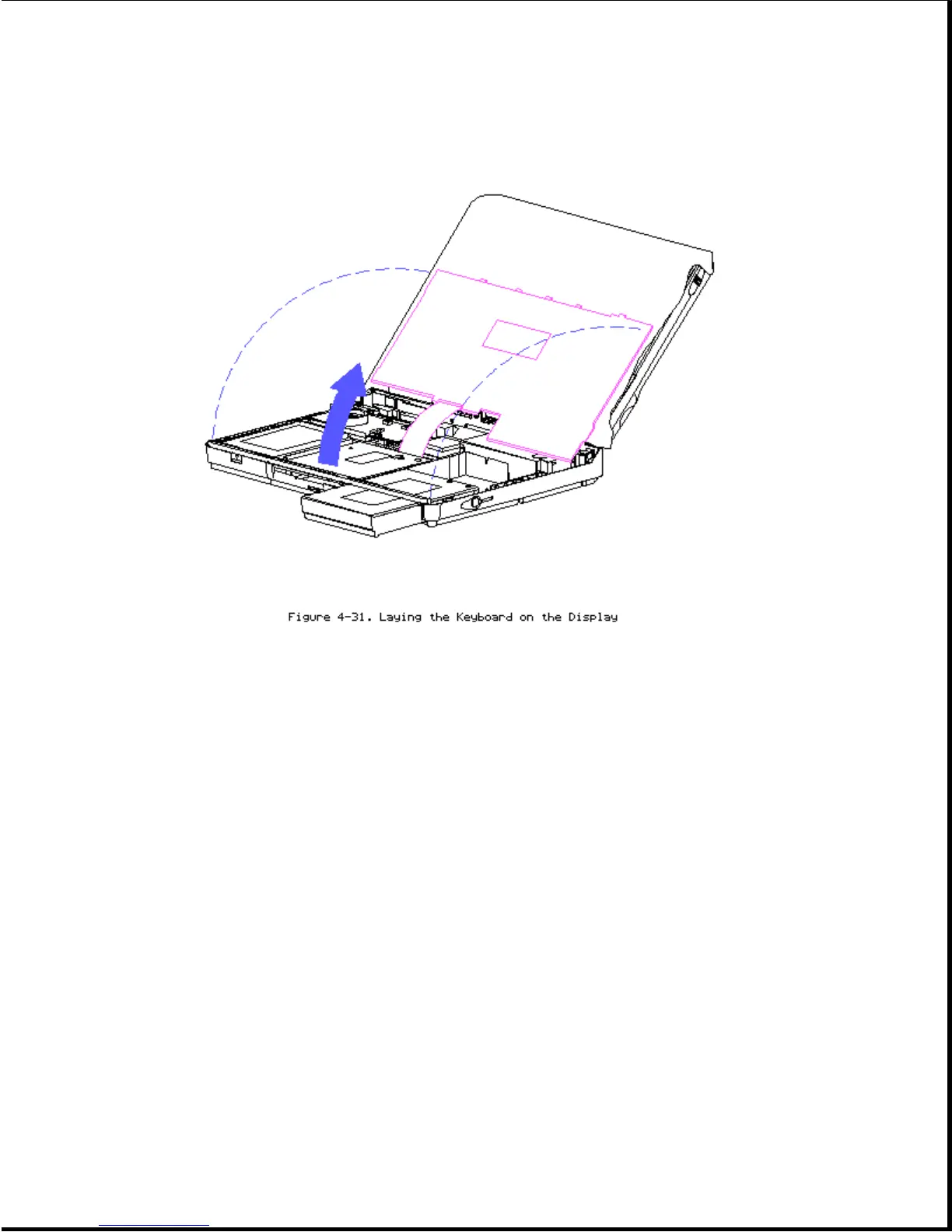

Compaq LTE Elite - Laying the Keyboard on the Display

To Next Page

To Previous Page

7. Remove the hard drive security clips by gently lifting up on them

(Figure 4-32).
