voltage input comes from one of the following sources:
o Internal AC power supply
o Battery pack
o Automobile adapter
o 198-pin external options connector (from expansion base)
o Auxiliary battery
To replace the DC-to-DC power supply, the system board must be replaced.
Processor Board

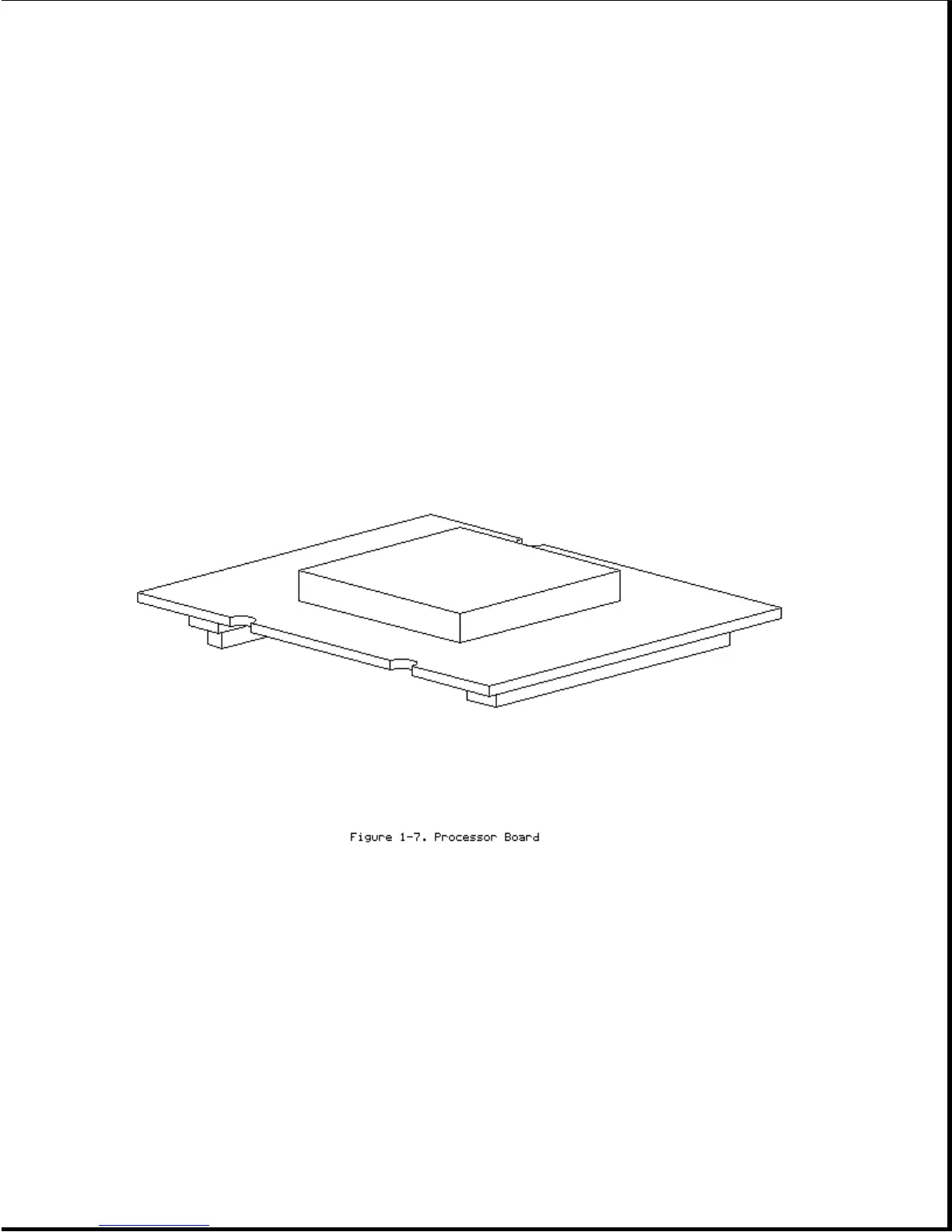

The SL Enhanced Intel486 processor has an integrated coprocessor and is
upgradeable by replacing the processor board (Figure 1-7). The system
automatically adjusts to the new configuration. In addition, the processor
board contains the primary temperature sensor (refer to "Temperature
Sensors").
Some models have a heat sink attached. The computer comes with one of the
following processors:
o 486 DX4/75 MHz
o 486 DX2/50 MHz
o 486 DX2/40 MHz
