The expansion base has two half-height drive cages for installing internal
drive options in the drive bays. The expansion base comes from the factory
with blank panels that cover the drive bay openings. The drive bays are

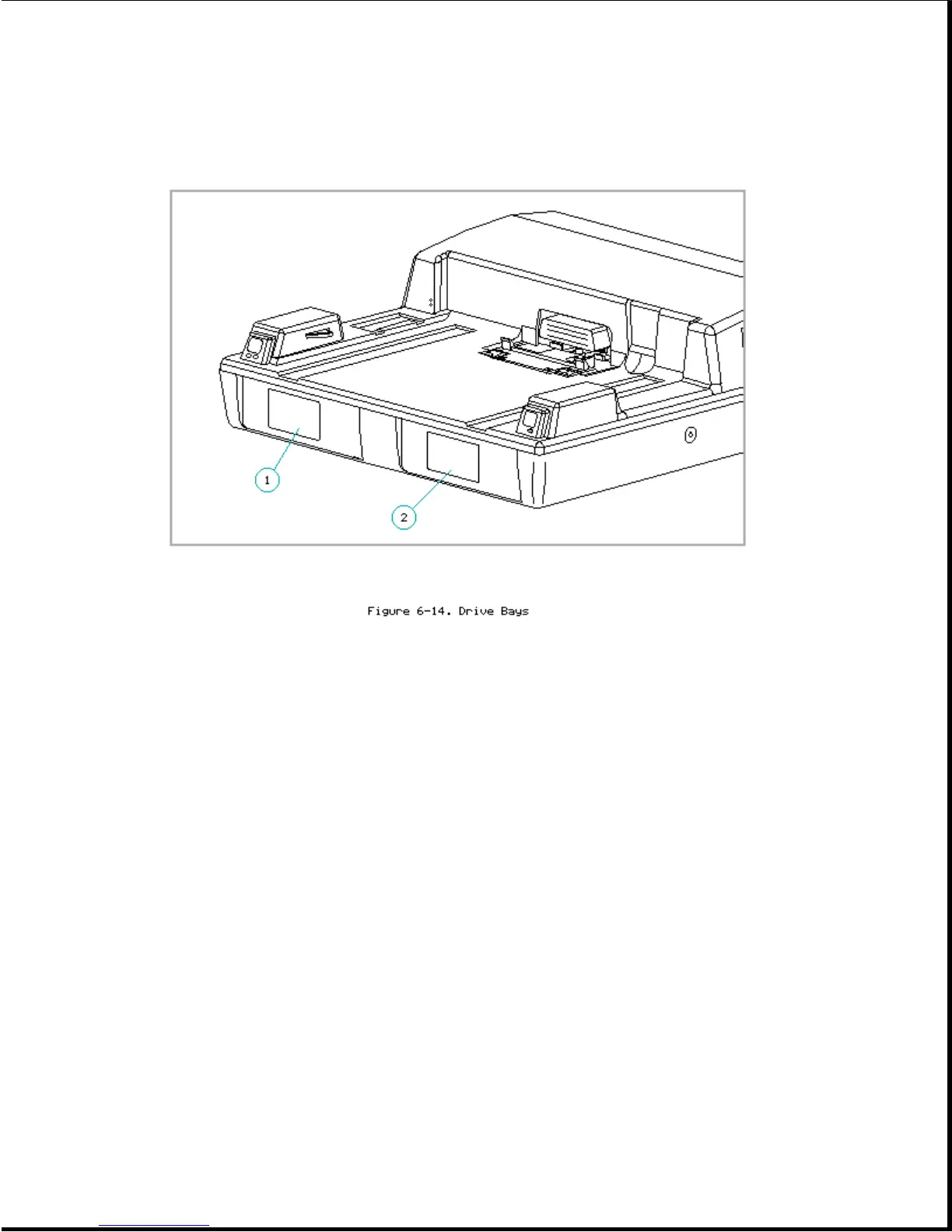

designated as drive positions 1 and 2 [1], [2] (Figure 6-14).
To be supported in the expansion base, drives must meet the power
requirements in Section 10.2, and the dimension requirements in Section
10.1.
Refer to Appendix C to configure the system for drives other than SCSI-2.
Refer to Appendix F to configure the system for SCSI-2 drives.
Drive Cables
The expansion base is shipped with one each of the following drive cables:
o Drive power
o IDE hard drive signal
o Tape/diskette drive signal
o Internal SCSI-2
For ease of identification, the vertical circuit board (also known as the
