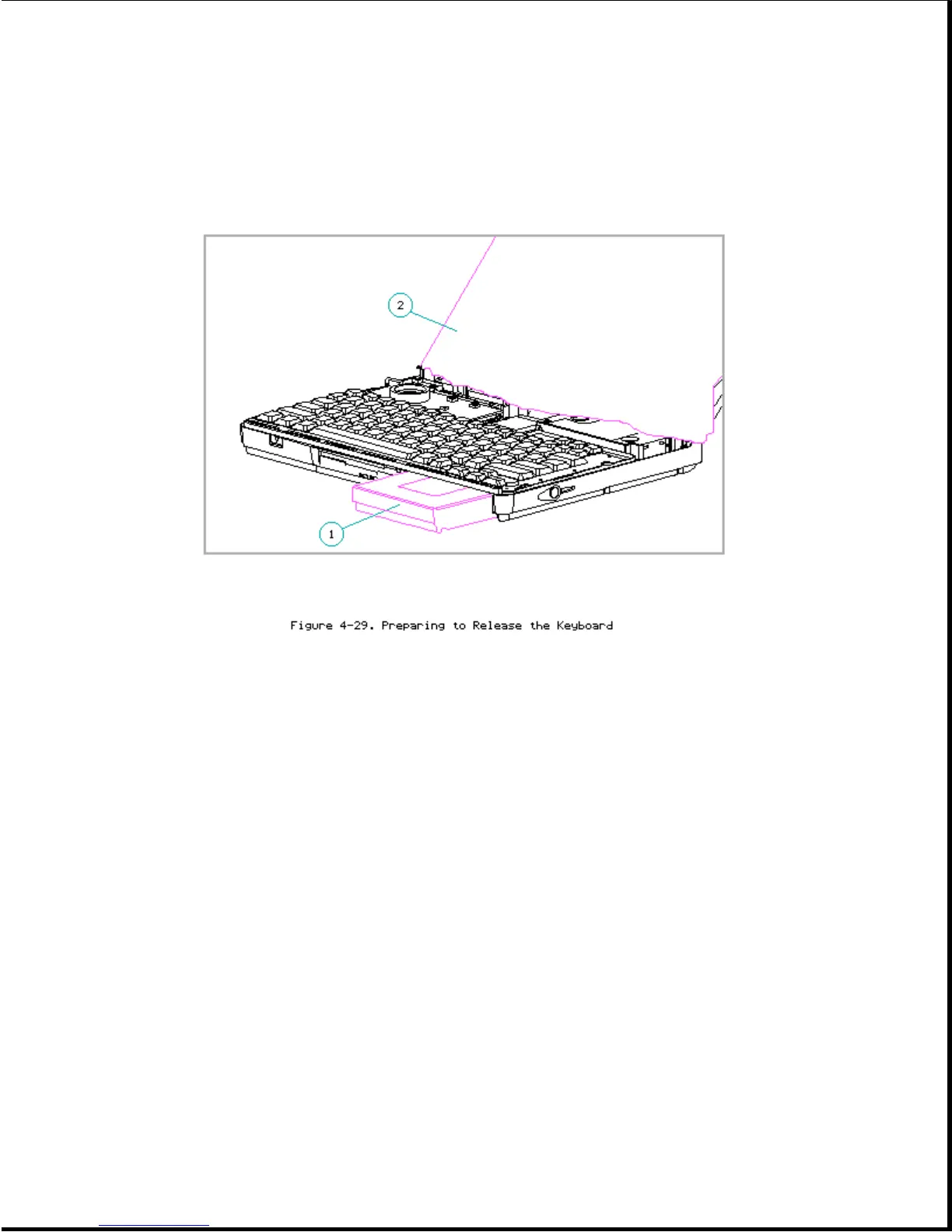

Compaq LTE Elite - Preparing to Release the Keyboard

Compaq LTE Elite
387 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
4. Remove the two remaining screws on the keyboard [1] (Figure 4-30).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
To avoid damage to the keyboard, be careful when handling it, since the
keyboard cable is still connected. Do not pull on the cable.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
5. Gently slide the keyboard toward the display to release its front edge
from the computer [2] (Figure 4-30).
