To avoid damage to the edge card connector on the vertical circuit board or
the system board, remove the expansion board cage before removing or
replacing the vertical circuit board.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
4. Remove the five screws that attach the vertical circuit board to the

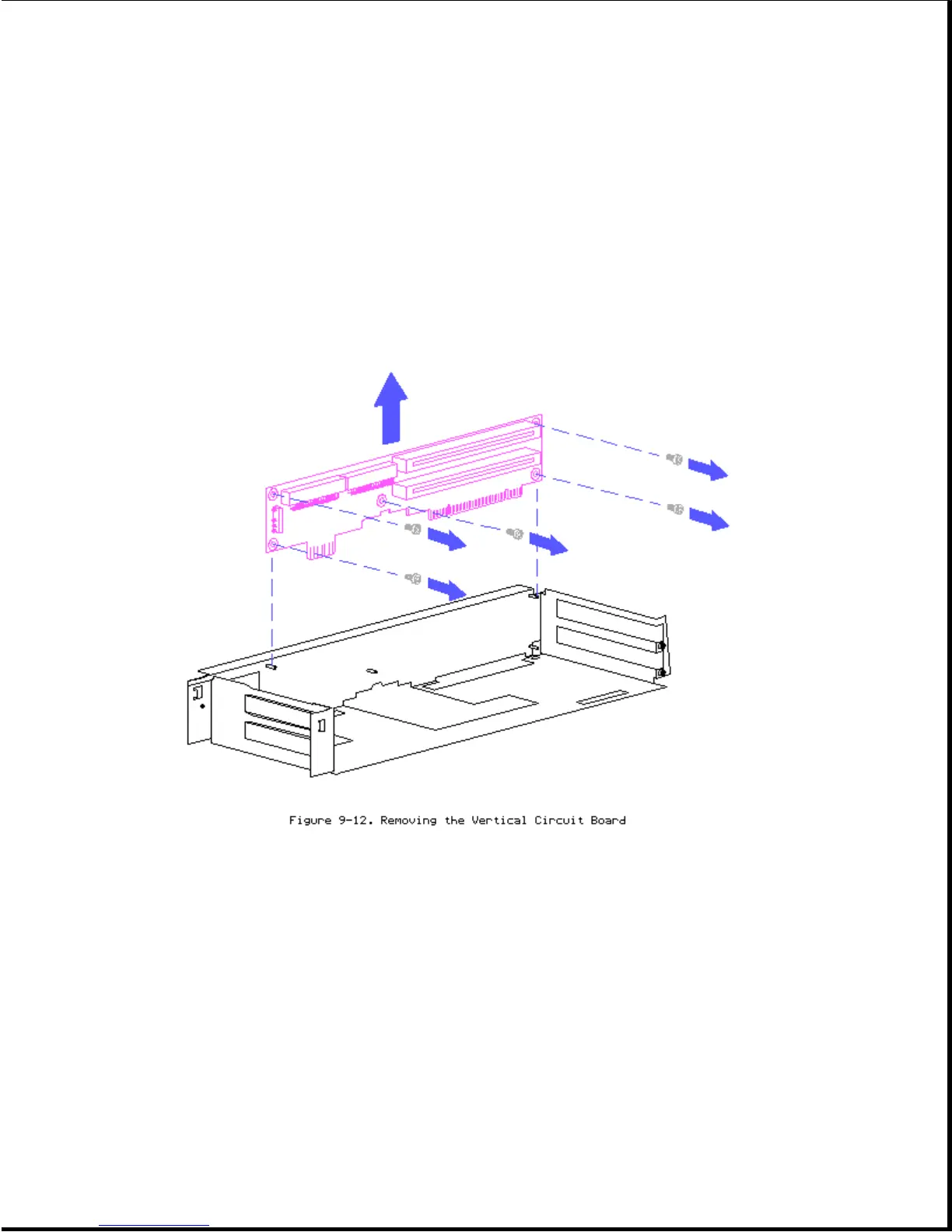

expansion board cage (Figure 9-12).
5. Remove the vertical circuit board (Figure 9-12).
9.11 Power Supply And Bezel
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> WARNING <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Whenever external electric power is connected to the expansion base, power
is connected to the power supply, even when the expansion base is turned
off. To avoid the risk of electric shock or damage to the expansion base,
ensure that the power cord is disconnected before removing and replacing
the power supply.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
To remove the power supply, complete the following steps:
