o Manual eject override mechanism to allow the computer to be removed from
the expansion base in the event of mechanical or power failure
6.4 External Switches, Sensors, And LEDS
This section covers the expansion base external switches, sensors, and LEDs

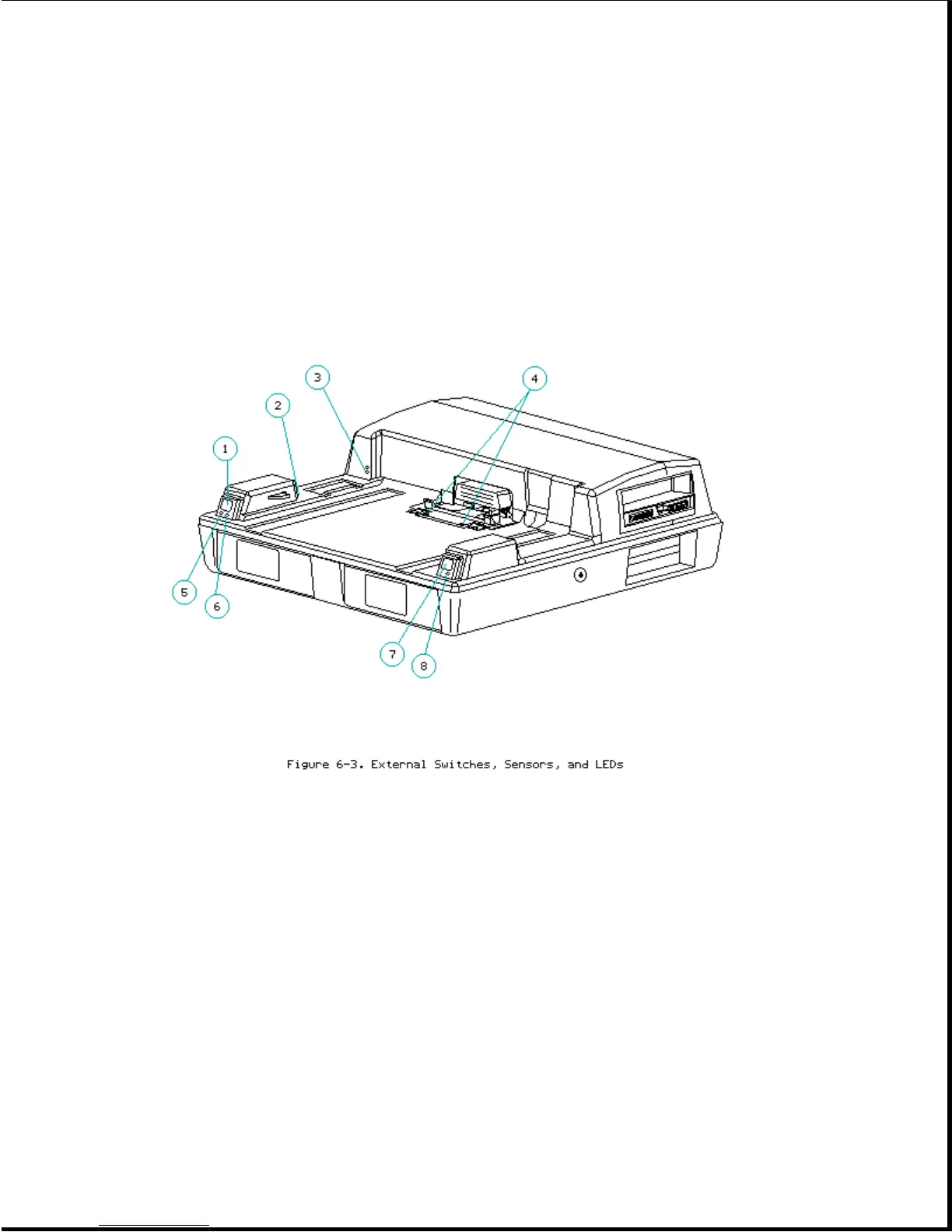

(Figure 6-3).
1. Power switch
2. PCMCIA card sensor receiver
3. PCMCIA card sensor emitter
4. Computer status sensor
5. Power LED
6. Hard drive LED
7. Eject switch
8. Battery charger LED
Power Switch
The expansion base has a momentary type power switch [1] (Figure 6-3) on
the front left of the unit. After the computer is docked, this switch
provides power to the main expansion base circuits and to the computer.
Refer to "Power Switch" in Section 6.6 for more information.
