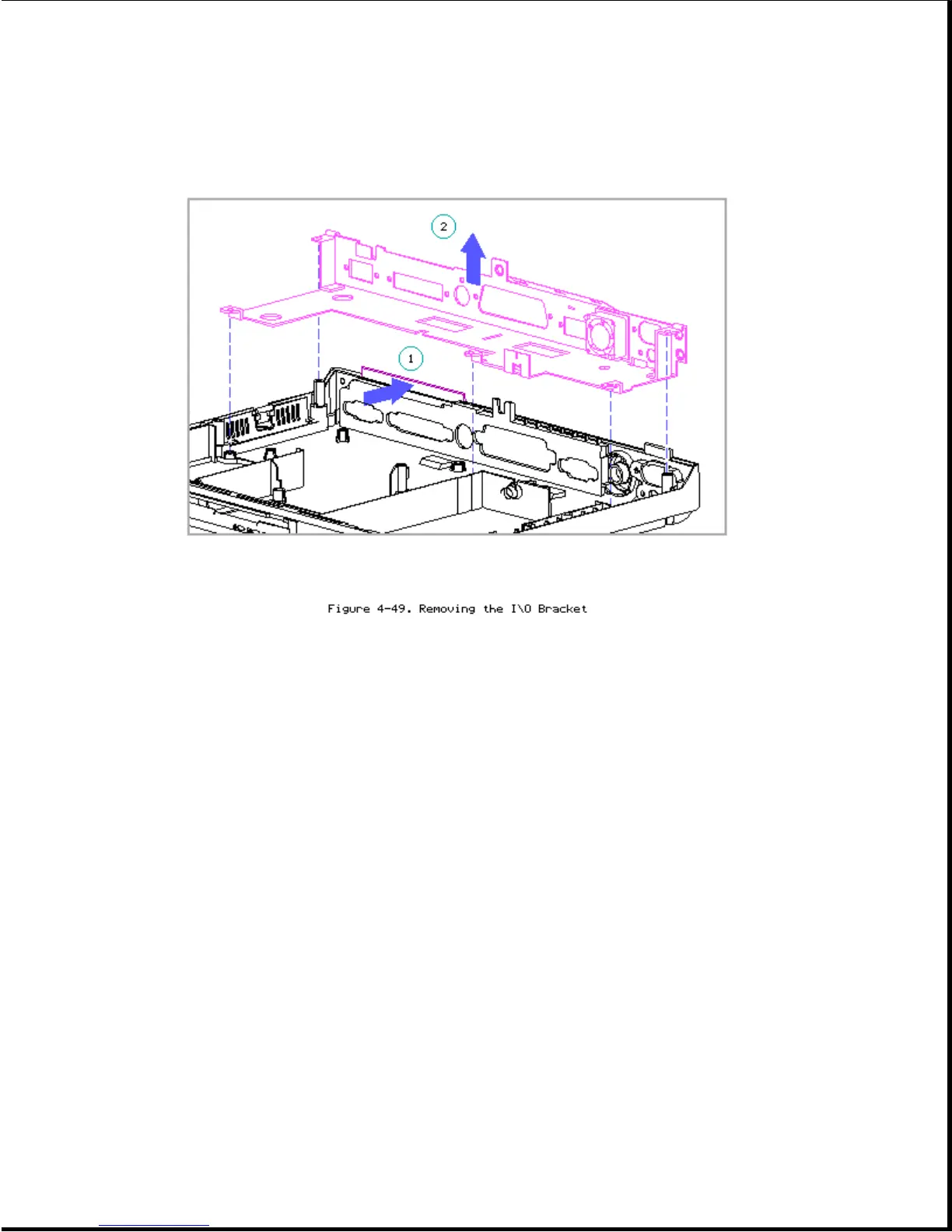

NOTE: The fan is integrated into the I/O bracket. To replace the fan, the
I/O bracket must be replaced.
4.18 LED Cable Assembly
Removing the LED Cable Assembly
To remove the LED cable assembly from the computer base enclosure, complete
the following steps:
1. Remove the system board by completing steps 1 through 17 in
Section 4.17.
2. Slightly flex the retaining snaps of the LED cable assembly bracket [1]
up one at a time, while removing the LED cable assembly [2]
(Figure 4-50).
