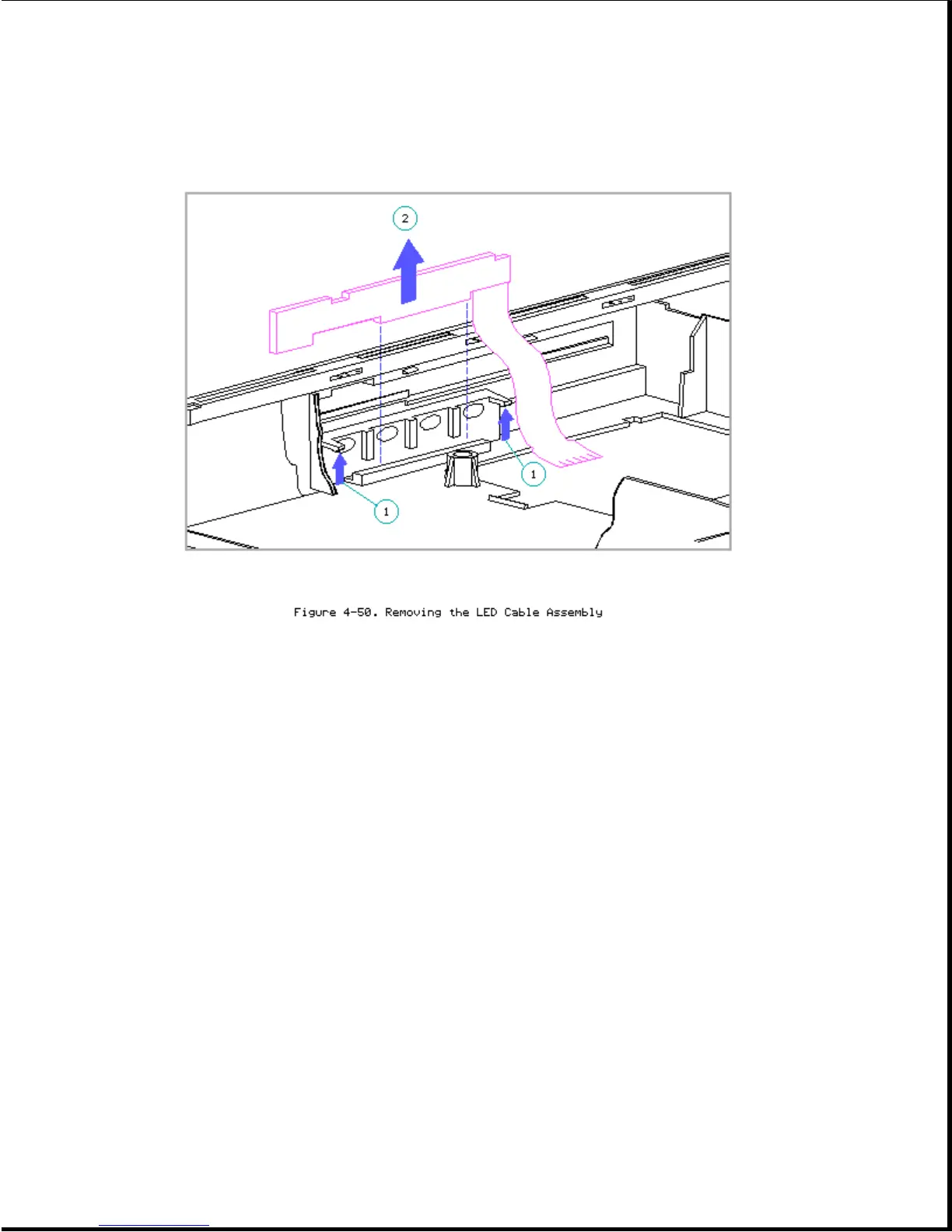

Replacing the LED Cable Assembly
To replace the LED cable assembly, complete the following steps:
1. Connect the LED cable assembly [1] to its connector on the system board
[2] (Figure 4-51).
IMPORTANT: Be sure that the soldered leads on the LED cable face away
from the system board.
